Rugged Hands Free SIP Call Box / Rustproof SIP Outdoor Intercom With Camera

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

Rugged Hands Free SIP Call Box / Rustproof SIP Outdoor Intercom With Camera

China Rugged Hands Free SIP Call Box / Rustproof SIP Outdoor Intercom With Camera supplier
Rugged Hands Free SIP Call Box / Rustproof SIP Outdoor Intercom With Camera supplier Rugged Hands Free SIP Call Box / Rustproof SIP Outdoor Intercom With Camera supplier

Large Image :  Rugged Hands Free SIP Call Box / Rustproof SIP Outdoor Intercom With Camera

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR315

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Customized: Yes
Warranty: 2 Years Weather Protection: IP65
Camera: Yes Handsfree: Yes
Vandal Resistant: Yes Unit Size: 650 *300 *60 (mm)
Weight: 45KG

Rugged Hands-free SIP Call Box with Camera for Public Emergency



The Handsfree SOS Call Box is designed to meet the needs of client who experience loss through vandalism. Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.


APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.


MAIN FEATURES
- SOS-Video Pillar
- Finished in contrasting colours, with a raised 32mm button. Raised text, Induction Loop facility for hearing impaired
- Hands-free loudspeaking communications for any public area,with Media converter

- Dual purpose design for surface or pillar mounting, simple installation
- Robust/Weather resistant: IP65
- Dual button autodial for emergency call

- External power supply or PoE (SIP)
- RJ45 Port for SIP connection
- CE, FCC,ROSH compliant


Camera
Video Codec: H.264 HP,MPEG4 SP,MJPEG
Resolution Ratio: 1,280*720@20 fps
Sensitivity: 0.5Lux,1.0V/lux-sec (550nm)
Viewing angle: 135'(H),109'(V)
Video Compression Output: 16Kbps - 2Mbps
FPS: 10-30 fps
D-Range: 71dB(SNRMAX = 42.3dB)


 Technical Specifications

SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C




Package

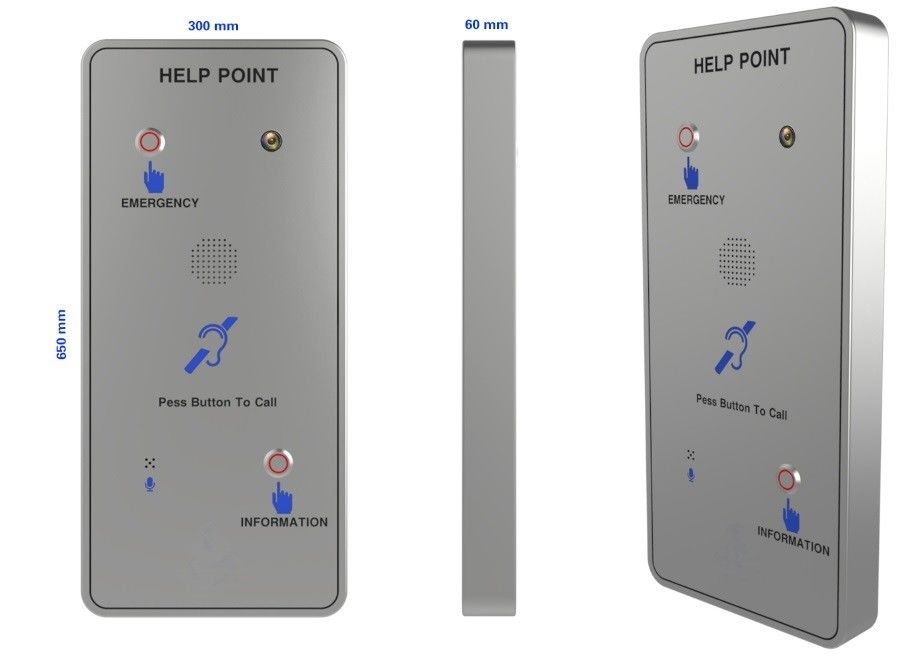

Help Point Unit Size: 650 *300 *60 (mm)
Pillar Size:1800 (H) *300 (W) ( mm )
Packaging materials: pearl cotton, carton
Net weight: 45 KG
Gross weight: 50 KG
