| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR205-FK |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Stainless Steel | Full Keypad: | Yes |
|---|---|---|---|
| Protection Type: | IP55-IP65 | Net Weight: | 3 KGS |
| Dialing: | MF (tone) | Armored Cord: | Yes |
| Magnetic Hook: | Yes | Power Supply: | Telephone Line/POE/DC Powered |
| Application: | Prison,Factory,other Public Area | ||
| High Light: | jail telephone,prison visitation phone,Heavy Duty SS Prison Telephone |
||

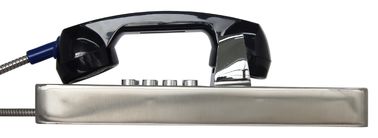

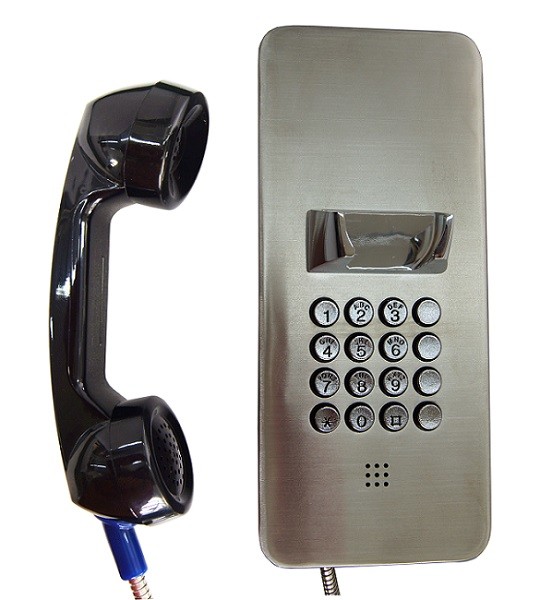

Vandal Resistant Telephones for Correctional Center, Rugged Jail Phone
Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.
MAIN FEATURES
- Standard Analogue phone, available for SIP version
- Robust housing, constructed of stainless steel
- Vandal resistant handset with armored cord
- Weather proof protection up to IP65
- Full Rugged & metal keypad
- Four additional buttons programmable for speed dial
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Telephone line powered (Analog version )
- External Power supply or PoE powered (SIP version)
- RJ45 port for SIP phone
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliant
- On wall mounting, simple installation
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
TECHNICAL PARAMETERS
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE
Unit size: 300 *120 *101 (mm)
Carton size: 340 *235 *165 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 3.5 KG
Gross weight: 4 KG
