Prison Telephone
Created with Pixso.

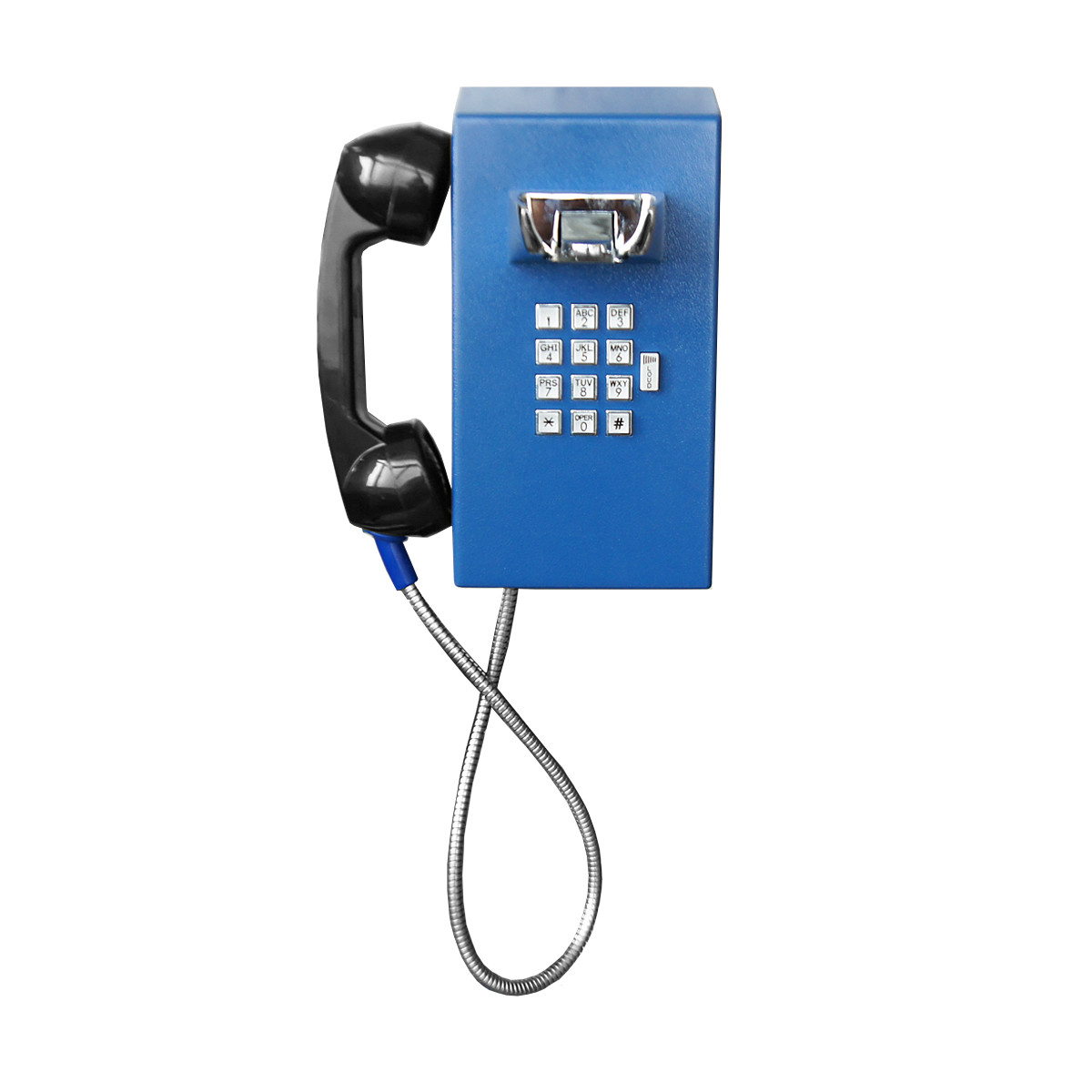

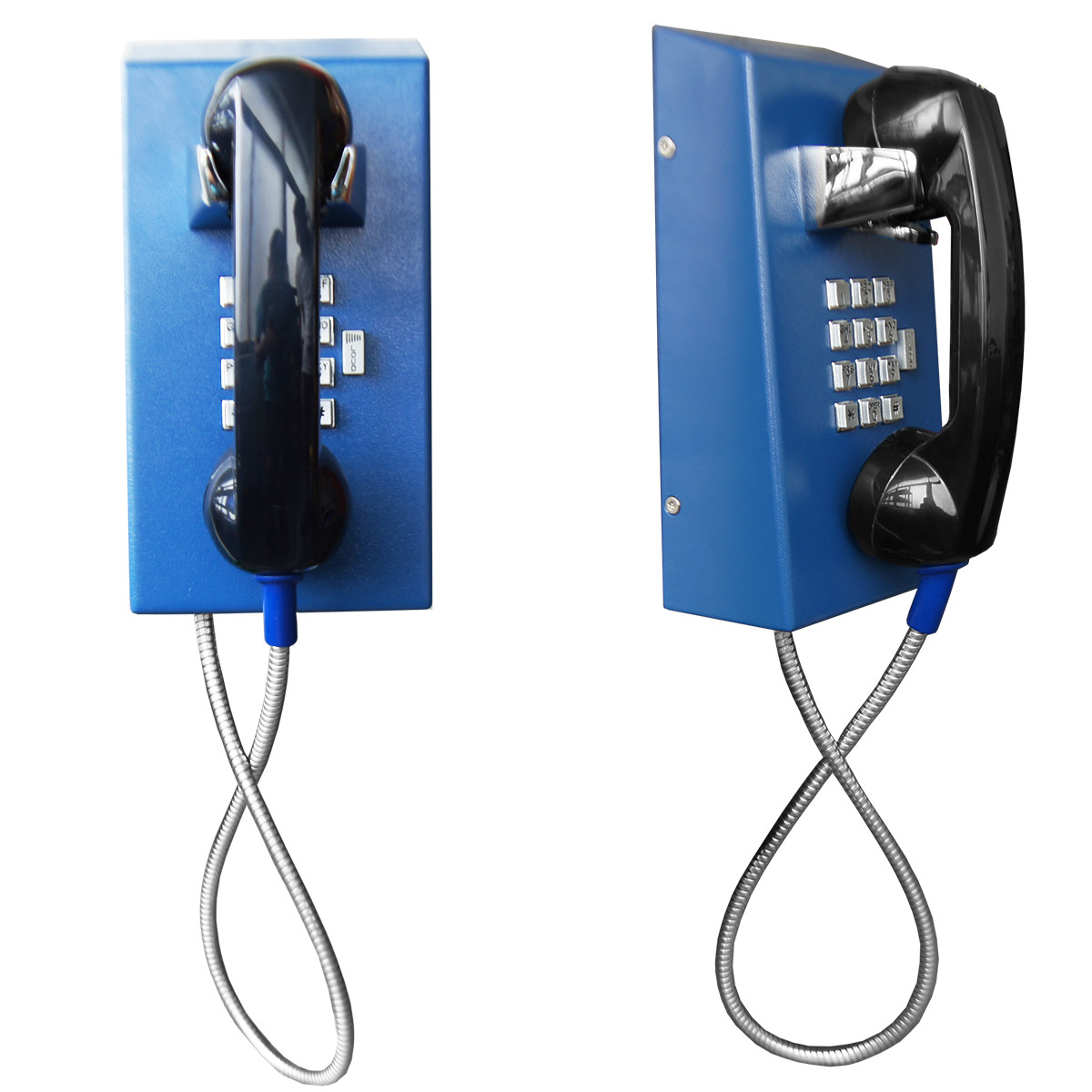

IP65 Weatherproof Analog Visitation Phones / SIP Emergency Phone For Prison

IP65 Weatherproof Analog Visitation Phones / SIP Emergency Phone For Prison

Brand Name: J&R
Model Number: JR201-FK-VC
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Weather Protection:
IP55-IP65
Anti-vandal:
Yes
Volume Button:
Yes
Gross Weight:
4 KG
Color:
Blue
Version:
Analog, SIP, GSM/3G
Material:
Cold Rolled Steel
Warranty:
2 Years Against Delivery
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

jail telephone

,

prison visitation phone

,

IP65 SIP Emergency Phone

Product Description

Anti-vandal Emergency SIP Telephone for Prison, Rugged Analog Visitation Telephone



This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box with volume control button and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.



Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

- Standard Analogue phone, or VoIP/SIP Phone
- Weather protection IP65
- Tamper resistant fixings,Simple installation
- Fast-fit terminal connection
- Mechanical hookswitch or Magnetic reed hook switch to reduce parts subject to wear


- Full Keypad with volume control button
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Weatherproof and corrosion resistant handset
- Stainless steel armoured handset cord


- Built-in user controlled volume “LOUD” button for ADA mandated volume control (user must have control of volume amplification AND volume must reset to normal with hang up to meet ADA requirements).
- Telephone line powered for Analog phone
- DC 5V powered or PoE
- Connection: RJ45 Ethernet socket through IP67 plug connector.


- Quality of Service (QoS): ensuring optimal delivery of voice
- Type of Service (ToS): high throughput and reliability (RFC3168)
- SIP (Session Initiation Protocol) RFC3261
- Inbuilt redundancy: able to make diversion calls to 2nd PBX


- TR069 (Technical Report 069): for advanced status monitoring and control
- Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
- Mass configuration available.
- CE, FCC, ISO9001, RoHS compliant





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C





PACKAGE

unit size: 247 *130 *132 (mm)

Carton size:340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3 KG

Gross weight: 4 KG
