Stainless Steel Housing Anti Vandal SIP Prison Telephone With LCD Display

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR212-FK
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Stainless Steel Warranty: 2 Years
Weather Protection: IP55-IP65 Handset: ABS Material With Armored Cord
Volume Control Button: Yes Vandal Resistant: Yes
LCD Display: Yes G.W: 4 KG
Dimension: 247 *130 *132 (mm) Application: Prison And Other Public Area
High Light:

inmate phone

,

prison visitation phone

,

LCD Display Prison Telephone


Product Description

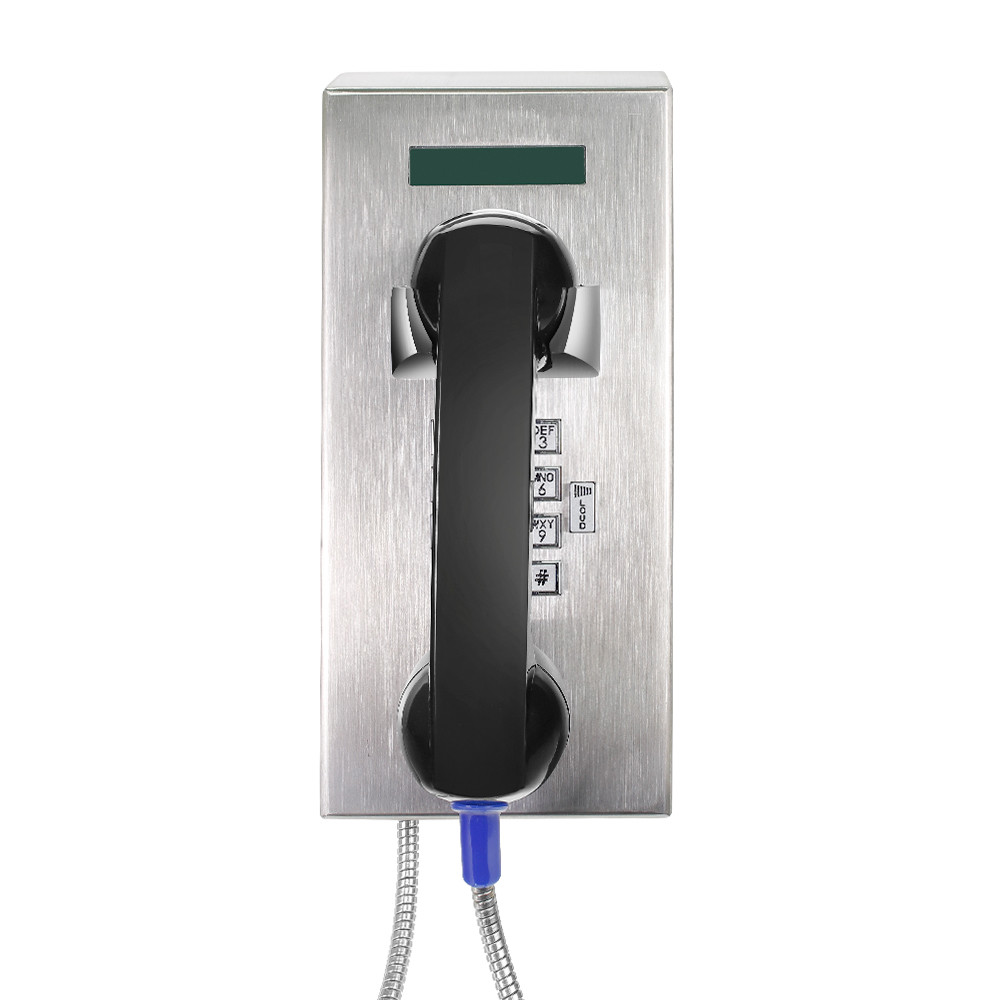

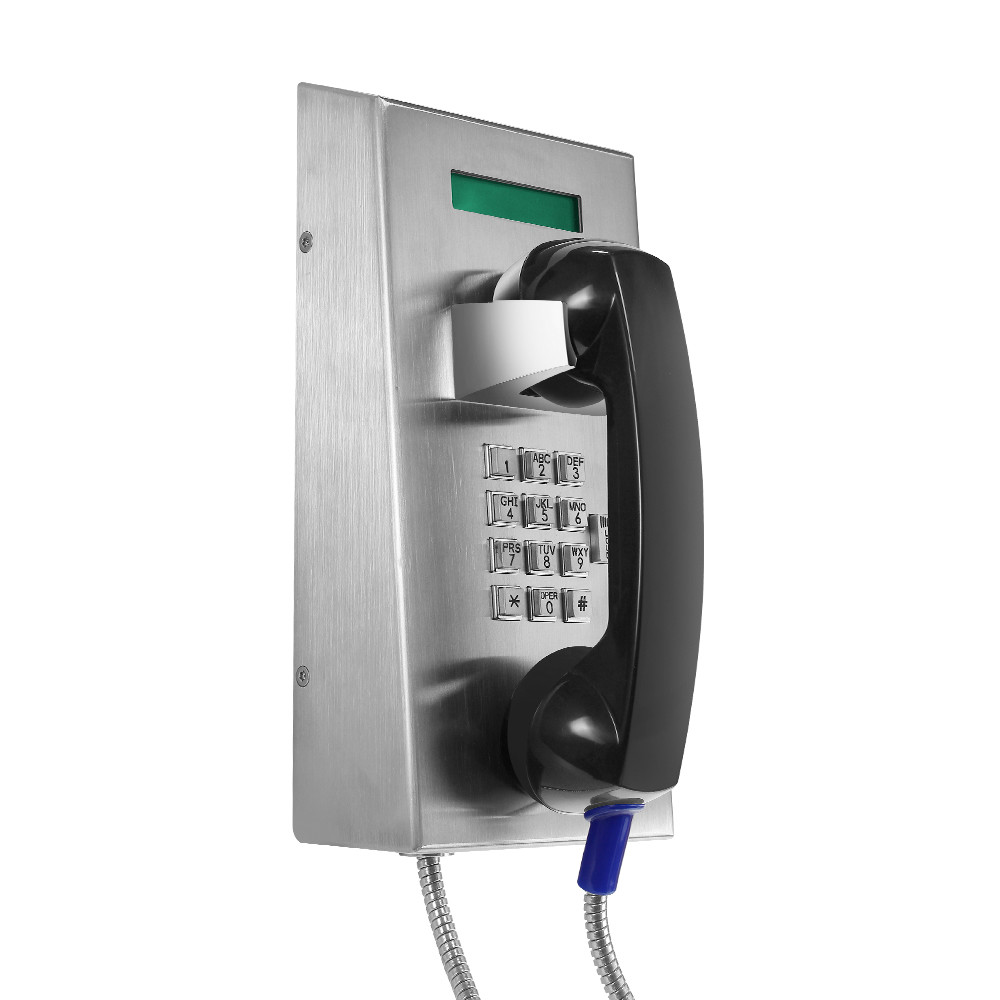

Anti-vandal Stainless Steel Housing Prison Telephone with LCD display



This Rugged Prison SIP Telephone is designed to meet the needs of client who experience loss through vandalism.



Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

Extremely easy to install.



The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.





MAIN FEATURES

- Standard Analogue phone, or SIP phone

- Robust housing, constructed of stainless steel, with LCD display

- Weather proof protection IP65

- Vandal resistant armored cord handset



- Full Rugged & durable keypad, volume control feature

- Can be programmed remotely by tone phone or locally via keypad

- Non-volatile memory

- Wall mounting, simple installation



- Phone lone powered (Analog)

- External Power supply or PoE (SIP phone)

- RJ45 port for SIP phone

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliant





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C







PACKAGE

Unit size: 247 *130 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3 KG

Gross weight: 4 KG
