Elevator Emergency Phone
Created with Pixso.

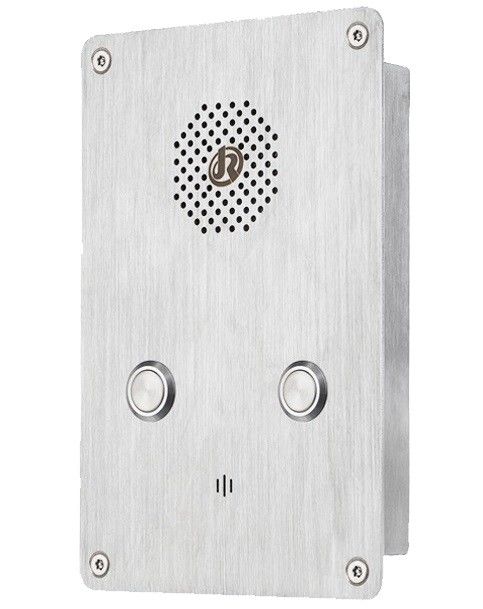

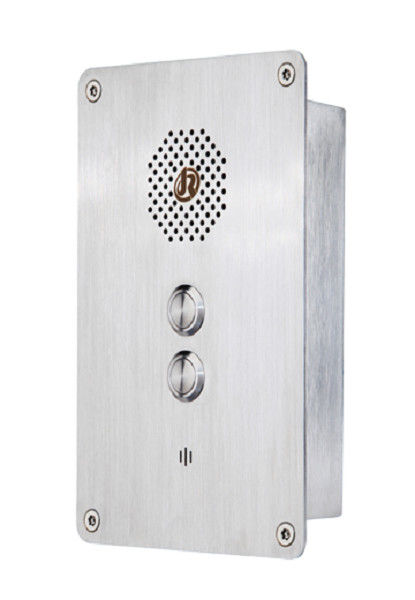

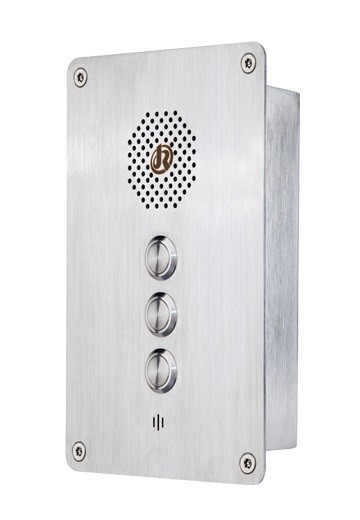

Anti Rust Elevator Emergency Phone Built In Ringer, Flush mounted Lift Help Point

Anti Rust Elevator Emergency Phone Built In Ringer, Flush mounted Lift Help Point

Brand Name: J&R
Model Number: JR301-2B-OW
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Material:
Stainless Steel
Customized Unit:
Support
Warranty:
2 Years
Weather Protection:
IP55-IP65
Version:
Analog, SIP, GSM/3G
Installation:
In Wall Mounted
Unit Size:
216 *146 *40 (mm)
Weight:
2 KG
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

lift intercom phone

,

elevator intercom phones

,

Anti Rust Elevator Emergency Phone

Product Description

Flush Mounted Emergency Telephones for Elevator, Vandal-proof Lift Help Point

The Flush Mounted Emergency Telephones are based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.



Ideas for Clean rooms, Schools, Streets, Public squares, Court houses, Rail platforms, Car-parks, Police stations, Hospitals, Gate entry, Firefighter, Industrial, Prisons, Jail, Guard Stations, Bank halls, ATM machines, Stadiums, inside and outside building, etc.





MAIN FEATURES

- Available in Analog, VoIP/SIP, and GSM/3G version

- Robust housing, constructed of stainless steel

Weather proof protection: IP55-IP65



- Vandal resistant metal button, Programmable for speed-dialing (PPT)

- Hands free operation

- Inductive Coupler Fitted as Standard for Hard of Hearing


- With the “one-touch call" function (by pre-setting up the target on the server), available for a full-duplex intercom
- Built-in Ringer, which provides a penetrating calling signal
- With a built-in 8 ohm & 0.5W speaker and a microphone, available for making hands-free calls



- In wall mounting, simple installation

- 4 X Tamper proof screws for mounting

- CE, FCC, RoHS, ISO9001 compliant



TECHNICAL PARAMETERS

Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C













Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.























SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)





















PACKAGE
Unit size: 216 *146 *40 (mm)
Carton size: 340 *235 *165 ( mm )
Packaging materials: pearl cotton, carton
Gross weight: 3 KG
Net weight: 2 KG
