Vandal Resistant Industrial VoIP Phone Weatherproof With LCD Display Screens

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR105-FK
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Color: Yellow, Orange (or Optional)
Power Supply: PoE With Display: Yes
Weather Resistant: IP67 Size: 334 *204 *143 (mm)
Net Weight: 6 KG Installation: Wall/ Pillar Mounting
Anti-vandal: Yes Warranty: 2 Years
High Light:

voice over ip phone

,

weatherproof voip phone

,

Tunnels Industrial VoIP Phone


Product Description

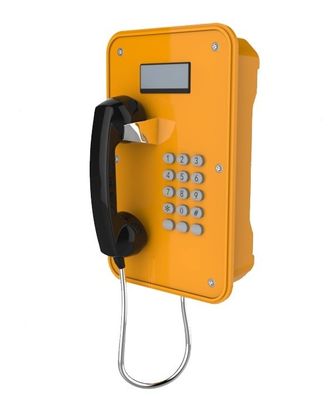

Vandal Resistant Industrial VoIP Phone With Display Screens JR105-FK



The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.




Main Features:
- Standard SIP/ VoIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67



Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
   “LR button for last number redial
   “R for flash recall
   “M for muting

- With LCD display

Wall/ Pillar mounting, simple installation



- Inductive coupler fitted as standard for hard of hearing
- Power supply: PoE (Power over Ethernet)
- RJ45 port for SIP phone

- CE, FCC, ISO9001, RoHS compliant






SIP-VoIP Technical Parameters

SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
  -Active:1.8W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C







 Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.



Package
Unit Size:    334 *204 *143 mm (H *W * D)
Carton Dimension:   200 * 300 *440 mm (H * W * D)
Packaging materials:   pearl cotton, carton
Net Weight:    5 KG
Gross weight:    6 KG
