Vandal Proof Outdoor Emergency Telephone , Hazardous Area Speed Dial Phone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR102-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Color: Yellow, Red, Orange (or Optional) Material: Aluminum Alloy
Weather Resistant: IP67 Power Supply: PoE
Installation: Wall/ Pillar Mounting Size: 246 *339 *124 (mm)
Net Weight: 7 KG Corrosion Resistant: Yes
Anti-vandal: Yes Warranty: 2 Years
High Light:

rugged voip phone

,

voice over ip phone


Product Description

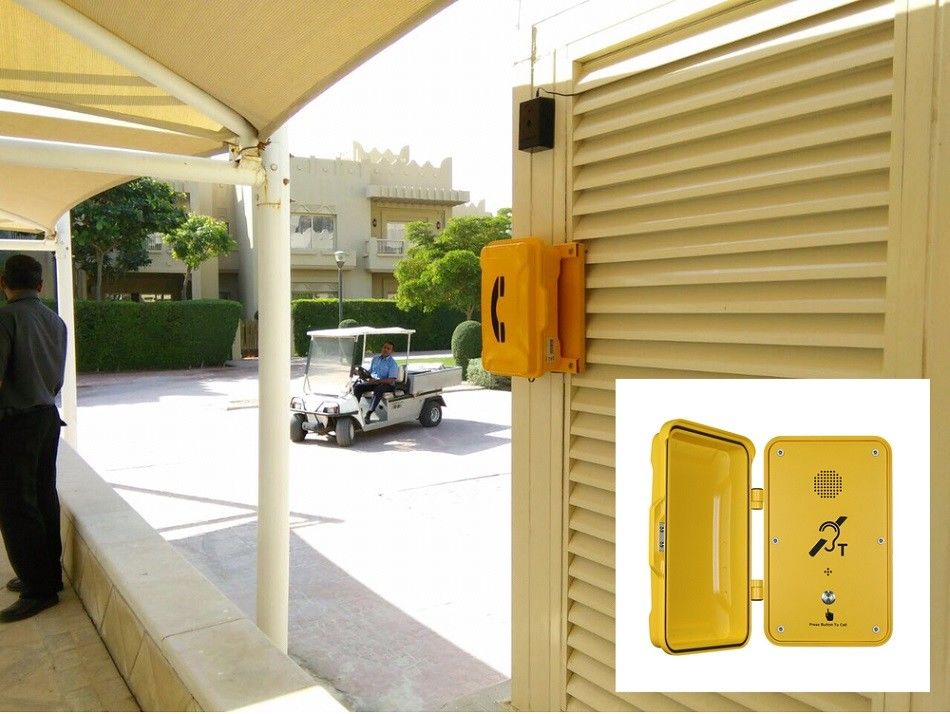

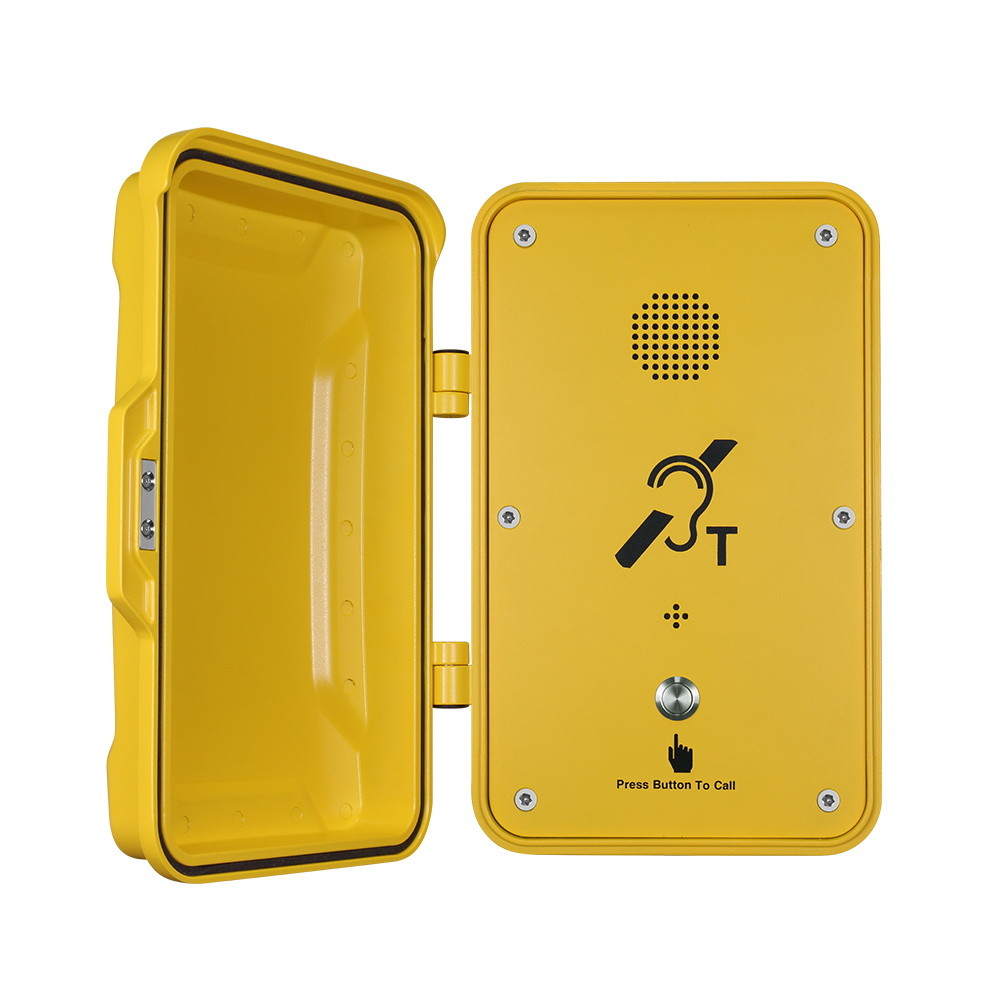

Vandalproof Outdoor Emergency Telephone, Weather Resistant Speed-dial Phone



This VoIP Hazardous Area Telephones offers a rugged aluminum enclosure with pivoted door and a weatherproof rating of IP67. It's a Safe, reliable. Voice over Internet Protocol (VoIP) phone requires a simple network connection and are compatible with most SIP-based IP-PBX servers to integrate into your existing network infrastructure.




Main Features:
- Standard SIP/ VoIP phone

Aluminum alloy die-casting body
- Handsfree operation
- Weather proof protection to IP67



Wall/ Pillar mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing

Programmable for auto-dial


- Power supply: PoE (Power over Ethernet)
- RJ45 port for SIP phone

- CE, FCC, ISO9001, RoHS compliant




SIP-VoIP Technical Parameters

SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
  -Active:1.8W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C





Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.



Package

Unit Size:    339*246*126 mm (H *W * D)
Carton Dimension:    200 * 300 *440 mm (H * W * D)
Packaging materials:     pearl cotton, carton
Net Weight:    6 KG
Gross weight:    7 KG
