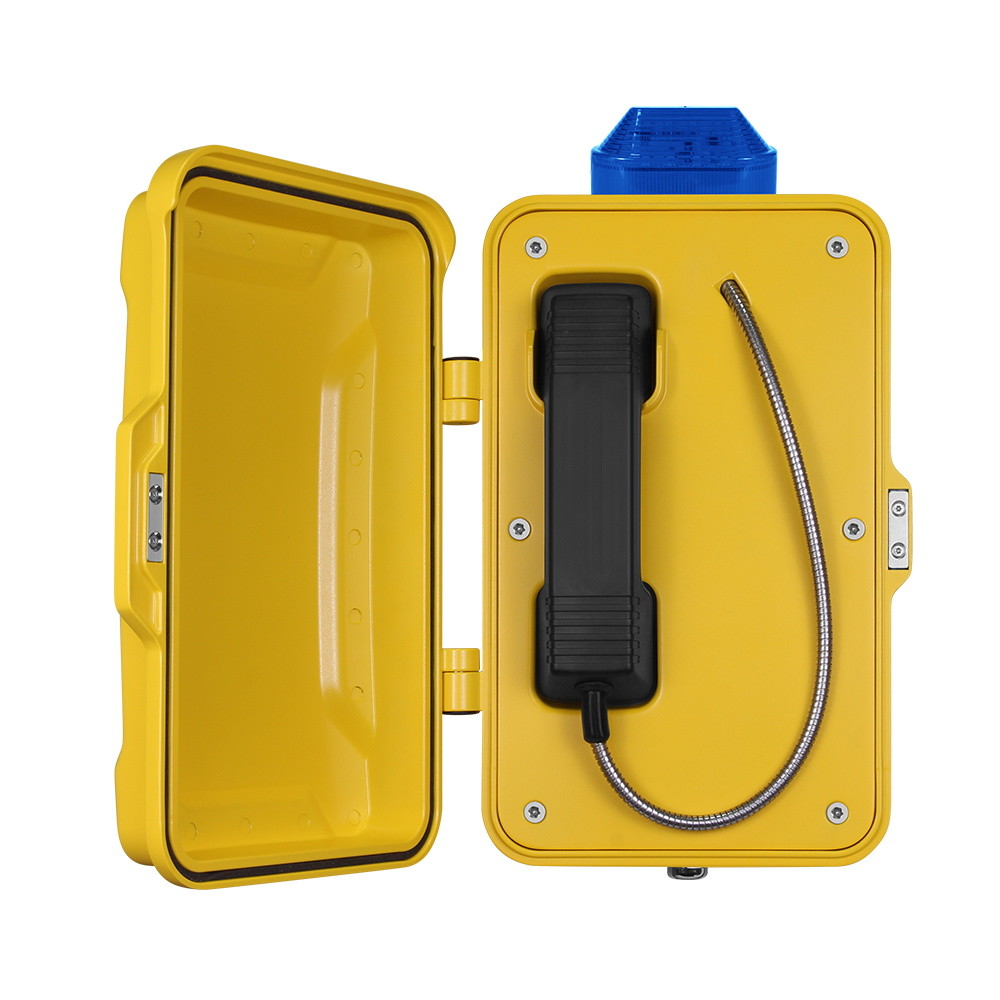

Auto Dial Industrial VoIP Phone , Aluminum Alloy Rugged Sip Phone With Warning Lamp

Auto Dial Industrial VoIP Phone , Aluminum Alloy Rugged Sip Phone With Warning Lamp

Brand Name:	J&R
Model Number:	JR101-CB-L
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, IP67, ISO9001:2015

Material:

Aluminum Alloy

Color (Phone&Lamp):

Yellow, Blue, Red, Orange (or Optional)

Power Supply:

PoE

Weather Resistant:

IP67

Installation:

Wall/ Pillar Mounting

Size:

246 *339 *126 (mm)

Net Weight:

7 KG

Warranty:

2 Years

Anti-vandal:

Yes

Corrosion Resistant:

Yes

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

rugged voip phone

voice over ip phone

Warning Lamp Industrial VoIP Phone

Product Description

Moisture Resistant Auto-dial Industrial SIP Telephone with Warning Lamp

Main Features:
- Standard SIP/ VoIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord

- With LED lamp fixed on the top, When there is a incoming call, the lamp will flashing.

- Weather proof protection to IP67

- Programmable for auto-dial
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- Wall/ Pillar mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant

Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.

SIP-VoIP Technical Parameters

Adapter Input:

100-240VAC 50～60Hz Output:5V/1A

Port:

WAN:10/100Base- T RJ-45 for LAN, Auto MDIX

LAN:10/100Base- T RJ-45 for PC, Auto MDIX

Power Consumption:

Idle:1.5W/ Active:1.8W

Voice Features

- Support 2 lines SIP, SIP 2.0 (RFC3261)

- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

- Echo cancellation: Support G.168 and hand-free can support 96ms

- Supports full duplex.

- SIP support SIP domain,SIP authentication (none, basic, MD5), DNS name of server, peer to peer

- SIP support 2 servers, user can through each server to calling in and out

Network Features

- WAN/LAN: support Bridge mode

- Support PPPoE for xDSL

- Support VLAN

- Support Stun penetration

- Support DHCP get IP on WAN port

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

Auto Dial Industrial VoIP Phone , Aluminum Alloy Rugged Sip Phone With Warning Lamp 0

Package
Unit Size: 339*246*124 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 5 KG
Gross weight: 6 KG

Auto Dial Industrial VoIP Phone , Aluminum Alloy Rugged Sip Phone With Warning Lamp 1

Auto Dial Industrial VoIP Phone , Aluminum Alloy Rugged Sip Phone With Warning Lamp 2
