Elevator Emergency Phone
Created with Pixso.

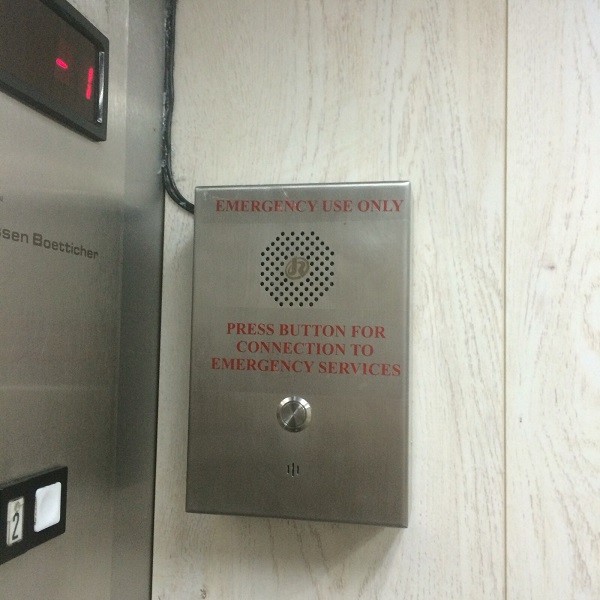

Rugged Stainless Steel SIP Elevator Emergency Phone For Wall Mounting

Rugged Stainless Steel SIP Elevator Emergency Phone For Wall Mounting

Brand Name: J&R
Model Number: JR302-SC
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Material:
Stainless Steel
Customized:
Support
Warranty:
2 Years
Weather Protection:
IP65
Handsfree:
Yes
Unit Size:
210*140*50 (mm)
Weight:
2 KG
Version:
SIP, Available In Analog, GSM/3G
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

lift intercom phone

,

elevator intercom phones

,

Rugged Elevator Emergency Phone

Product Description

Stainless Steel Housing Rugged SIP Elevator Intercom, Anti-vandal Lift Phone



The vandal proof intercom is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.





APPLICATIONS

Idead for Clean room, Schools, Streets, Public square, Court houses, Rail platforms, Car-parks, Police stations, Hospitals, Gate entry, Firefighter, Industrial, Prisons, Jail, Guard Stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

- Standard VoIP/ SIP phone

- Robust housing, constructed of stainless steel

- Weather proof protection: IP55 to IP65

- CE, FCC, RoHS, ISO9001 compliant



- Vandal resistant metal button

- Hands free operation

- On wall mounting, simple installation

- 4 X Tamper proof screws for mounting



- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- Compatible with standard SIP protocol, independently accessible to VOIP phone system.

  (Asterisk, Elastix,Grandstream, Cisco,Yeastar etc. mainstream IP-PBX)





TECHNICAL PARAMETERS

Voice Features

       - Support 2 lines SIP, SIP 2.0 (RFC3261)

- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

- Echo cancellation: Support G.168 and hand-free can support 96ms

- Supports full duplex.

- SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer

- SIP support 2 servers, user can through each server to calling in and out



Network Features

- WAN/LAN: support Bridge mode

- Support PPPoE for xDSL

- Support VLAN

- Support Stun penetration

       - Support DHCP get IP on WAN port



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C






PACKAGE

Unit size: 210 *140 *50 (mm)

Carton size: 340 *235 *165 ( mm )

Packaging materials: pearl cotton, carton

Gross weight: 3 KG

Net weight: 2 KG
