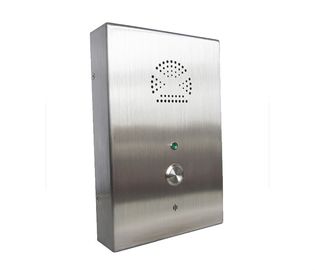

Anti Vandal Emergency Call Box / SOS Stainless Steel Intercom For Elevators

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR302-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Stainless Steel Color: Grey
Warranty: 2 Years Weather Protection: IP65
Button: Stainless Steel Handsfree: Yes
Vandal Resistant: Yes Unit Size: 210 *140 *50 (mm)
Weight: 4 KG
High Light:

lift emergency phone

,

lift intercom phone

,

Anti Vandal Emergency Call Box


Product Description

Anti-vandal Call Box for Elevators, Stainless Steel Housing Lift SOS Telephone



The Hands free emergency  call box is designed to meet the needs of client who experience loss through vandalism.



Housed in stainless steel box and manufactured to a high standard, this SOS call box offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.



Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant.





MAIN FEATURES

Standard Analogue phone or SIP phone

Robust housing, constructed of stainless steel

Vandal resistant metal button

Hands free operation



One button for emergency call

On wall mounting, simple installation

Weather proof protection: up to IP55



External power supply or PoE (SIP)

RJ45 Port for SIP connection

4 X Tamper proof screws for mounting

CE, FCC, RoHS, ISO9001 compliant



Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C







APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.







TECHNICAL PARAMETERS

Analogue Version
Power Supply  From the analogue telephone network
Supply Voltage  24 VDC to 65 VDC
Supply Current  20 mA DC to 100 mA DC
Ringer Volume  - 80dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method  DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)




PACKAGE

Unit size: 210 *140 *50 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3.5 KG

Gross weight: 4 KG



Anti Vandal Emergency Call Box / SOS Stainless Steel Intercom For Elevators 0

Anti Vandal Emergency Call Box / SOS Stainless Steel Intercom For Elevators 1

Anti Vandal Emergency Call Box / SOS Stainless Steel Intercom For Elevators 2
