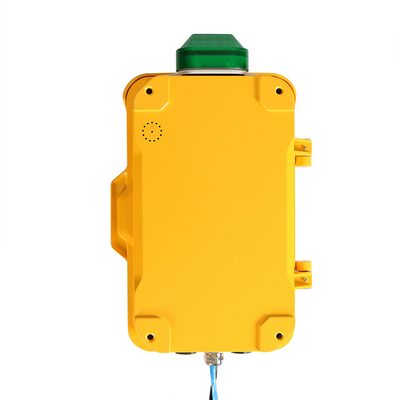

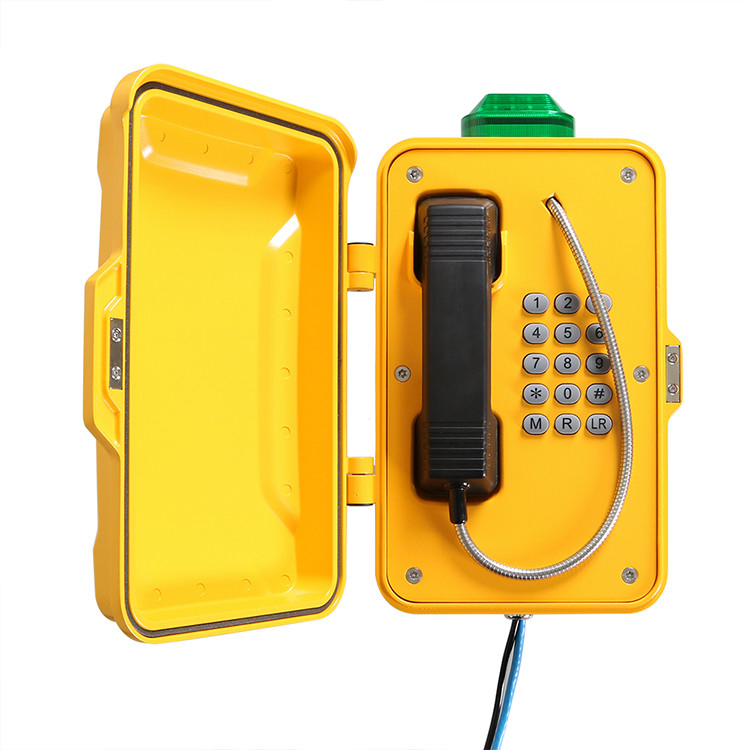

Aluminum Alloy IP67 Waterproof Tunnel Telephone With Alarm Light

IP67 Weatherproof Industrial Telephone with Beacon, PoE powered Tunnel Phone

 Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platforms, highways side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants, and related heavy duty industrial applications, etc.

Main Features:
Standard SIP/ VoIP phone
Aluminum alloy die-casting body
Vandal resistant handset and armored cord
Weather proof protection to IP67

Full keypad with memory, 0-9 buttons can be programmed as speed dial buttons.
   “LR” button for last number redial
   “R” for flash recall
   “M” for muting

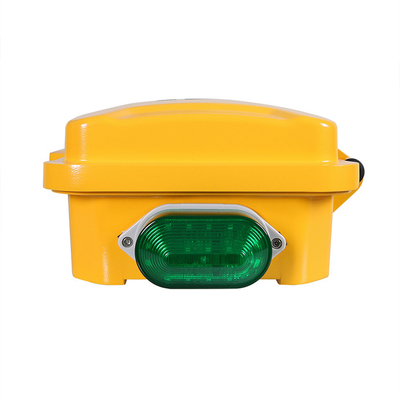

With an LED lamp fixed on the top, When there is an incoming call, the lamp will flash.
Wall/ Pillar mounting, simple installation

External power supply or PoE (SIP-VoIP)
RJ45 port for SIP phone

Inductive coupler fitted as standard for hard of hearing
CE, FCC, ISO9001, RoHS compliant

Optional
Key lockable latch
Upper & lower internal mounting plates
Flat label area or custom embossed logo on door
Vandal resistant screws for upper mounting plate

Technical Parameters

Voice Features

Support 2 lines SIP, SIP 2.0 (RFC3261)

Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

Echo cancellation: Support G.168 and hand-free can support 96ms

Supports full duplex.

SIP support SIP domain, SIP authentication(none, basic, MD5), DNS name of the server, peer to peer

SIP support 2 servers, user can through each server to call in and out

Network Features

WAN/LAN: support Bridge mode

Support PPPoE for xDSL

Support VLAN

Support Stun penetration

Support DHCP to get IP on WAN port


Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG
