| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR103-FK |
| Minimum Order Quantity: | 1 Piece |
| Price: | negotiable |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union，PayPal |
| Supply Ability: | 10000pcs per month |
| Product Name: | Waterproof Emergency Industrial Weatherproof Telephone For Highway | Material: | Die-casting Aluminum Alloy |
|---|---|---|---|
| Version: | Analogue, SIP/VoIP, GSM/3G | Installation: | Wall Mounting Or Pillar Mounting |
| Powered: | POE Or DC12V Powered Or Telephone Line Powered | Warranty: | 2years |
| Ringing Volume: | 75-90db | Protection Type: | IP65-IP67 |
| SIP Protocol: | SIP2.0 | Application: | Metro, Railway, Highway Side,Tunnel,Roadside Etc |
| High Light: | weather resistant telephone,weatherproof telephone box |
||

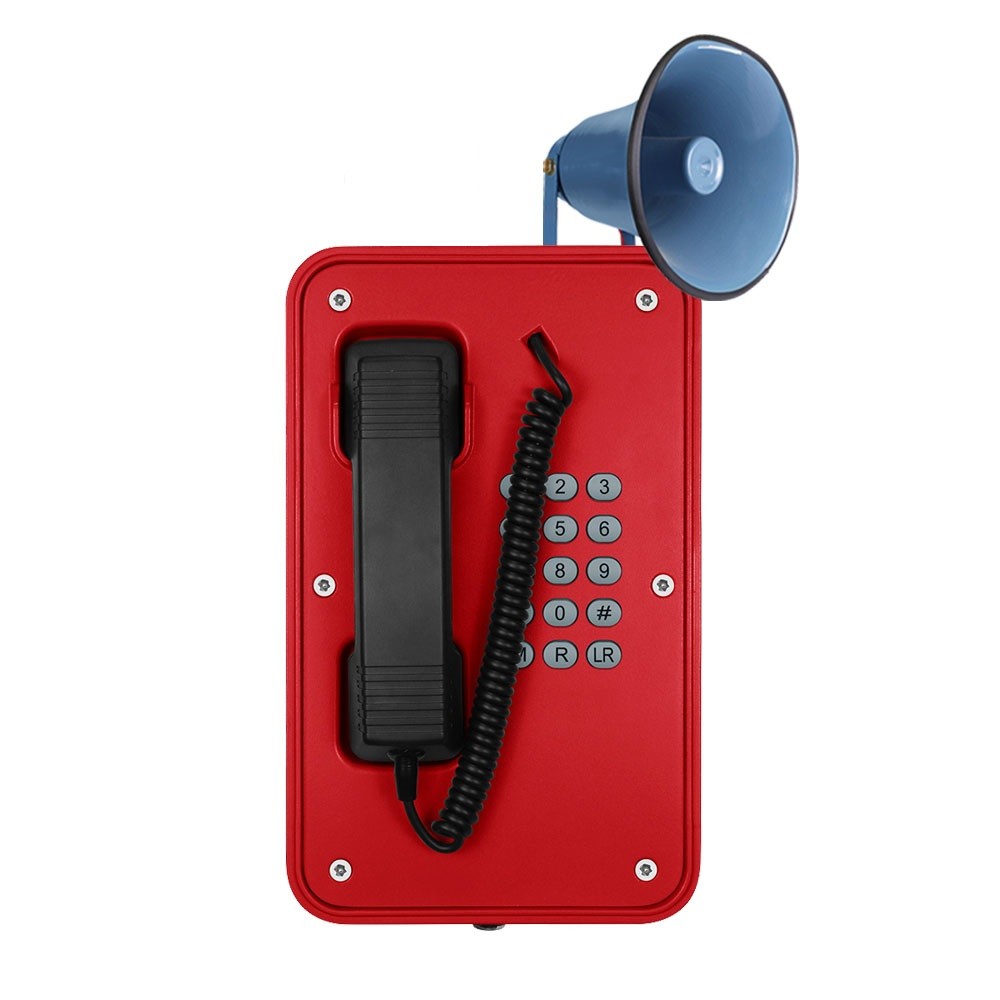

This vandal proof Chemical Plants Telephone is fully contained within a corrosion resistant cast aluminum weatherproof case, providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.
Standard Analogue phone,or SIP phone,or GSM/3G phone
Vandal resistant handset and armored cord
Weather proof protection to IP67
Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
"LR" button for last number redial
"R" for flash recall
"M" for muting
Wall mounting, simple installation
Built-in amplifier, with external ringer :15W (30W optional), for broadcasting feature
Phone line powered for Analog
External power supply or PoE (SIP)
RJ45 port for SIP phone
CE, FCC, RoHS, ISO9001 compliant
Main Features
Standard Analogue phone or SIP phone
Vandal resistant handset and cord
Weather proof protection to IP67
Programmable for auto-dial
Wall mounting, simple installation
Inductive coupler fitted as standard for hard of hearing
Phone line powered(Analogue)
External power supply or PoE (SIP-VoIP)l
RJ45 Port for SIP connection
CE,FCC,ROSH compliant
TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.
|
Analogue Version
|
|
|
Power Supply
|
From the analogue telephone network
|
|
Supply Voltage
|
24 VDC to 65 VDC
|
|
Supply Current
|
20 mA DC to 100 mA DC
|
|
Ringer Volume
|
- 80dB(A) at a distance of 1 m
|
|
- 110dB(A) at a distance of 1 m (for external horn speaker)
|
|
|
Dialing Method
|
DTMF mode in accordance with ITU-T recommendation Q.23.
|
|
SIP Version
|
|
|
Power Supply
|
PoE or 12V DC
|
|
Power Consumption
|
-Idle:1.5W
-Active:1.8W |
|
SIP Protocol
|
SIP 2.0 (RFC3261)
|
|
Support Codec
|
G.711 A/U, G.722 8000/16000, G.723, G.729
|
|
Communication Type
|
Full duplex
|
|
Ringer volume
|
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
|
3G Version
|
|
|
Power Supply
|
12V DC
|
|
Power Consumption
|
-Idle:0.3W
-Active: 1.5W
|
|
Communication Type
|
Full duplex
|
|
Ringer volume
|
90~95dB(A) at a distance of 1 m
|
|
Program Method
|
Remote programming by SMS
|
|
Frequency
|
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
|
Ambient conditions
|
|
|
Protection type
|
IP 66 as per EN60529
|
|
Operating temperature
|
-25°C to +70°C
|
|
Storage temperature
|
-25°C to +85°C
|
This weatherproof vandalproof Chemical Plants Telephone is very popular for Tunnels, Mining, Marine, Construction sites, Blast furnace areas, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants, oil&Gas station, and related heavy duty industrial rough environment conditions, etc.
J&R is a China-based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model available for Analogue version, IP/SIP version,GSM/3G version)
