| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR101-FK-L |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Weather Resistant: | IP67 |
|---|---|---|---|
| Power Supply: | PoE, Or External 12V 2A Power | Warranty: | 2 Years |
| Color: | Yellow, Blue, Red, Orange (or Optional) | Size: | 246 *339 *126 (mm) |
| Net Weight: | 7 KG | Installation: | Wall/ Pillar Mounting |
| Anti-vandal: | Yes | With Beacon: | Yes |
| High Light: | IP67 Waterproof Tunnel Telephone,Aluminum Alloy Waterproof Tunnel Telephone,IP67 outdoor weatherproof telephones |
||

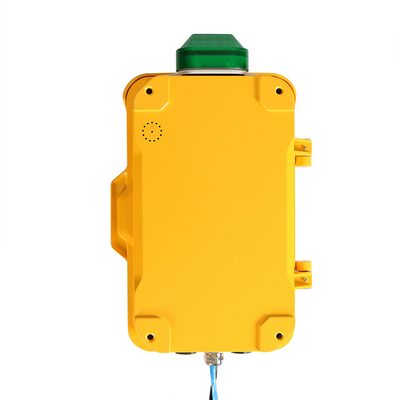

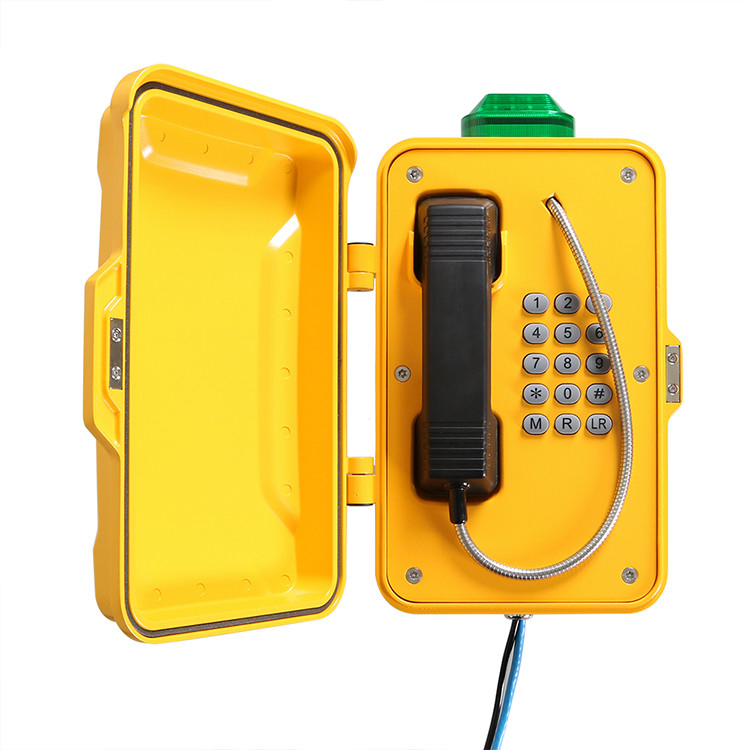

IP67 Weatherproof Industrial Telephone with Beacon, PoE powered Tunnel Phone
Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platforms, highways side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants, and related heavy duty industrial applications, etc.
Main Features:
Standard SIP/ VoIP phone
Aluminum alloy die-casting body
Vandal resistant handset and armored cord
Weather proof protection to IP67
Full keypad with memory, 0-9 buttons can be programmed as speed dial buttons.
“LR” button for last number redial
“R” for flash recall
“M” for muting

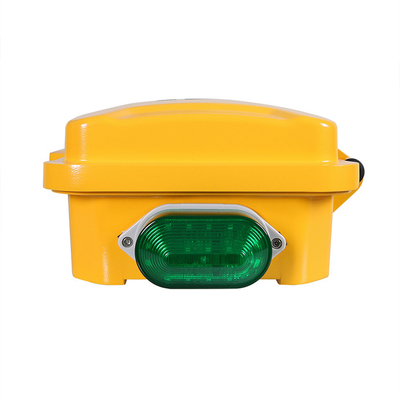

With an LED lamp fixed on the top, When there is an incoming call, the lamp will flash.
Wall/ Pillar mounting, simple installation
External power supply or PoE (SIP-VoIP)
RJ45 port for SIP phone
Inductive coupler fitted as standard for hard of hearing
CE, FCC, ISO9001, RoHS compliant
Optional
Key lockable latch
Upper & lower internal mounting plates
Flat label area or custom embossed logo on door
Vandal resistant screws for upper mounting plate
Technical Parameters
Voice Features
Support 2 lines SIP, SIP 2.0 (RFC3261)
Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726
Echo cancellation: Support G.168 and hand-free can support 96ms
Supports full duplex.
SIP support SIP domain, SIP authentication(none, basic, MD5), DNS name of the server, peer to peer
SIP support 2 servers, user can through each server to call in and out
Network Features
WAN/LAN: support Bridge mode
Support PPPoE for xDSL
Support VLAN
Support Stun penetration
Support DHCP to get IP on WAN port
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG
