| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR210-1B |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Call Button: | Yes |
|---|---|---|---|
| Handset: | Rugged ABS Material | Warranty: | 2 Years |
| Color: | Red | Version: | Analogue, SIP/VoIP |
| Weatherproof: | IP65 | Communication Type: | Full Duplex |
| High Light: | Speed Dial Vandal Resistant Telephone,ABS Material Vandal Resistant Telephone,Heavy Duty Industry Vandal Proof Telephone |
||

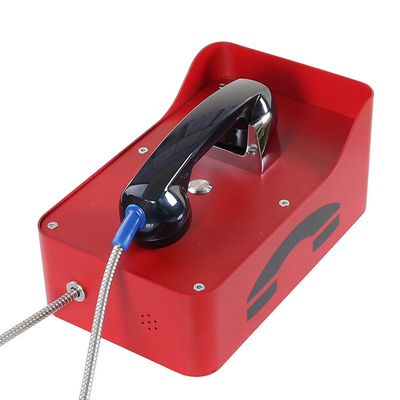

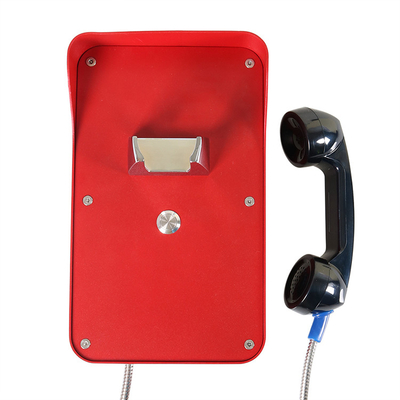

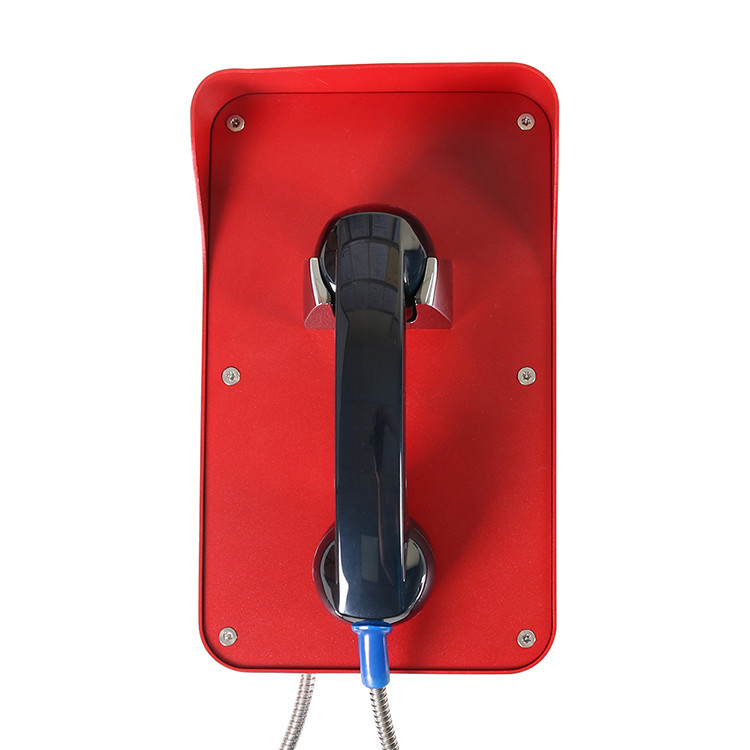

Vandal-proof Speed-dial Emergency for Heavy Duty Industry
This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box with three emergency call buttons and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard Analogue, SIP/VoIP, GSM, 3G Telephone
- Robust housing, constructed of cold rolled steel
- On wall mounting, simple intallation
- One button for speed dial

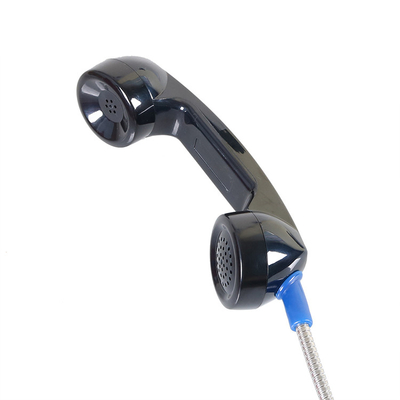

- Vandal resistant Handset and armored cord
- Weather proof protection: IP55-IP65
- Inductive coupler fitted as standard for hard of hearing
- Tamper resistant fixings
- Fast-fit terminal connection
- Non-volatile memory
- Telephone line powered (Analogue)
- External power supply or PoE (SIP)
- RJ45 Port for SIP connection
- CE, FCC, RoHS, ISO9001 compliant
TECHNICAL PARAMETERS
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
PACKAGE
unit size: 247 *130 *132 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: pearl cotton, carton
Net weight: 3.5 KG
Gross weight: 4 KG
