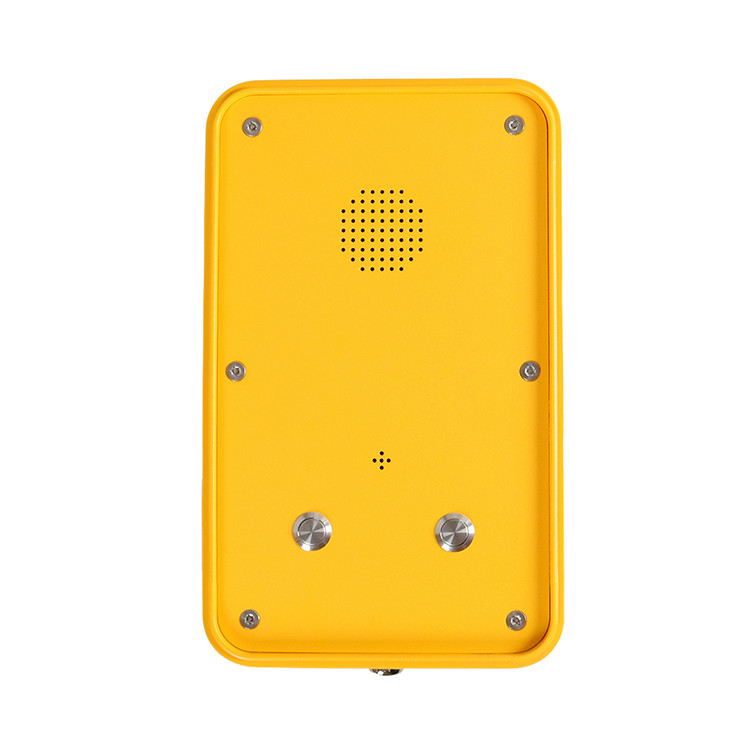

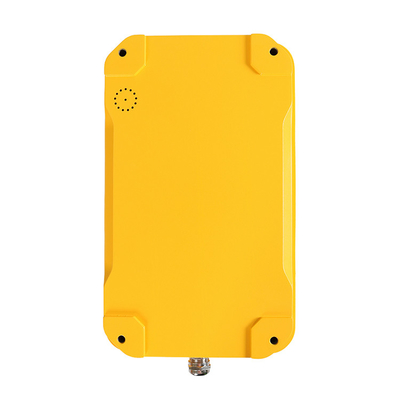

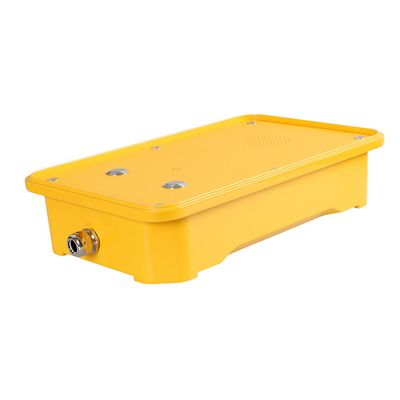

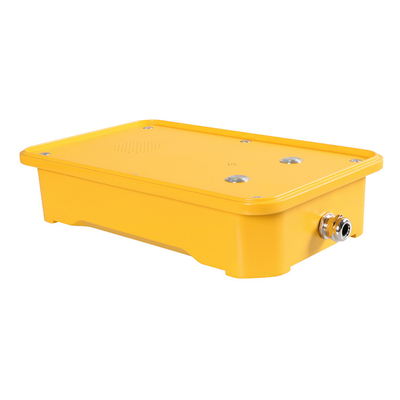

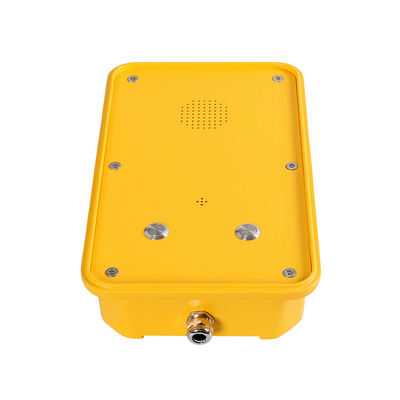

Speed Dial Industrial Analog Telephone , Anti Corrosion Hands Free Intercom

Brand Name:	J&R
Model Number:	JR104-2B
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, IP67, ISO9001:2015

Material:

Aluminum Alloy

Color:

Yellow, Blue, Red, Orange (or Optional)

Buttons:

Stainless Steel Buttons

Power Supply:

Phone Line Powered

Warranty:

2 Years

Weather Resistant:

IP67

Net Weight:

6 KG

Size:

246 *339 *109 (mm)

Installation:

Wall/ Pillar Mounting

Corrosion Resistant:

Yes

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

Speed Dial Industrial Analog Telephone

Anti Corrosion Industrial Analog Telephone

65VDC Hands Free Intercom

Product Description

Vandal Resistant Speed-dial Telephone for Emergency, Industrial Hands-free Intercom

This Handsfree weatherproof telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.

Main Features:
- Standard Analogue phone

- Aluminum alloy die-casting body

- Handsfree operation

- Weather proof protection to IP67

- Two buttons can programmable for auto-dial
- Phone line powered (Analog)

- Can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN

- Wall/ Pillar mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, ISO9001, RoHS compliant

Technical Parameters

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

Package

Unit Size:	339246109 mm (H W D)
Carton Dimension:	200 * 300 440 mm (H W * D)
Packaging materials:	pearl cotton, carton
Net Weight:	5 KG
Gross weight:	6 KG
