Industrial Analog Hands Free Telephone Aluminum Alloy Case For Hazardous Areas

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR102-2B
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Color: Yellow, Red, Orange (or Optional) Material: Aluminum Alloy
Weather Resistant: IP67 Power Supply: Phone Line Powered
Warranty: 2 Years Buttons: Stainless Steel Buttons
Installation: Wall/ Pillar Mounting Size: 246 *339 *124 (mm)
Net Weight: 7 KG Corrosion Resistant: Yes
High Light:

Corrosion Resistant Hands Free Telephone


Aluminum Alloy Hands Free Telephone


Hazardous Areas Industrial Analog Telephone

Product Description

Anti-vandal Handsfree Industrial Telephone, Hazardous Areas Weatherproof Telephones

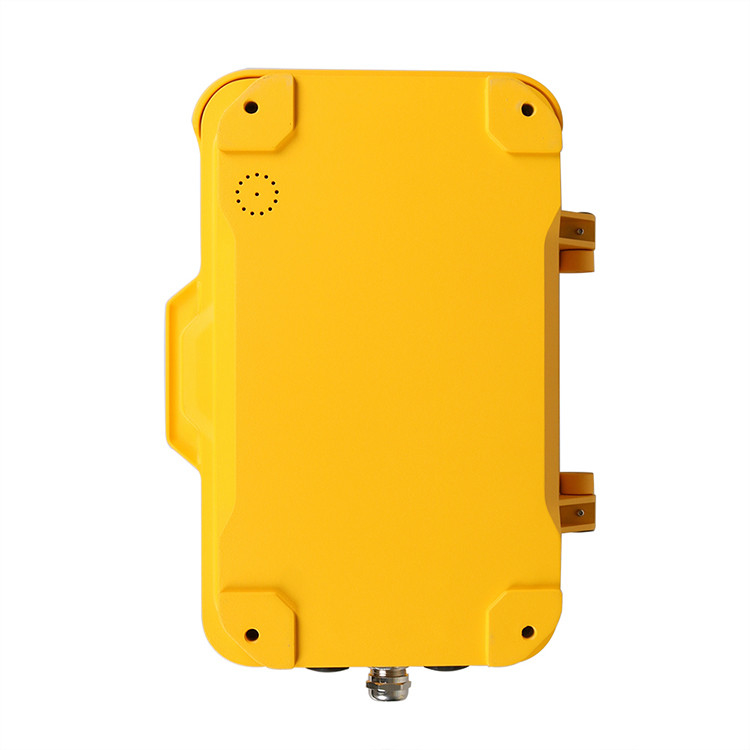

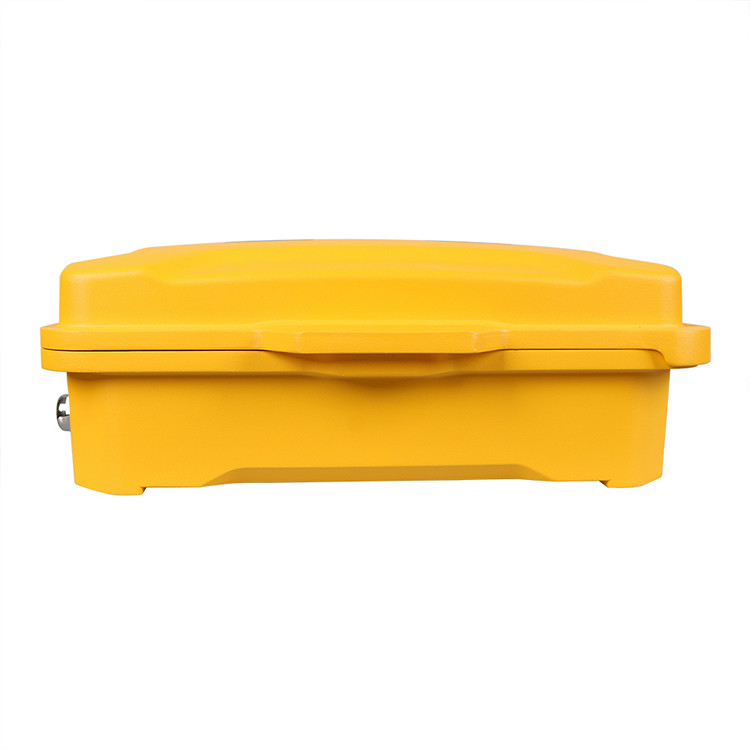

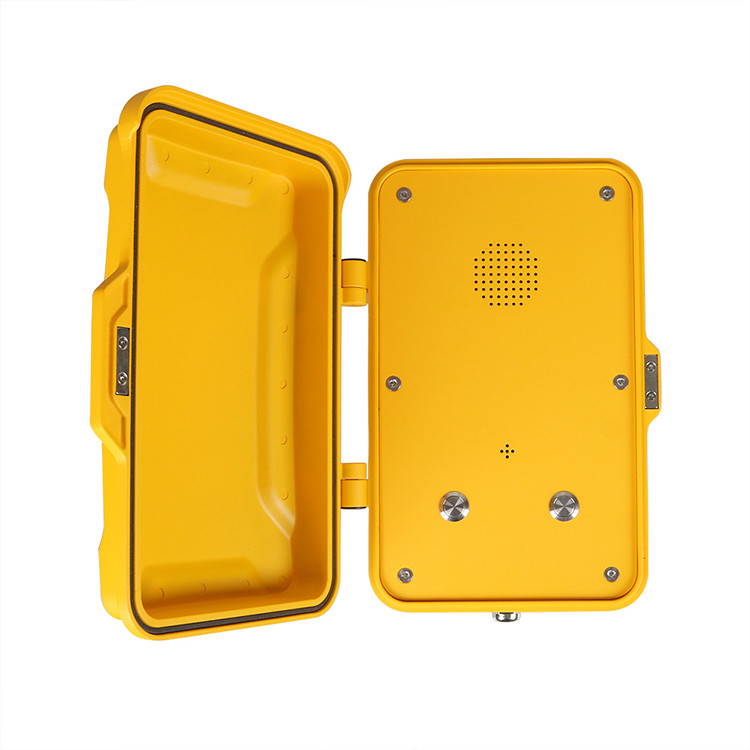

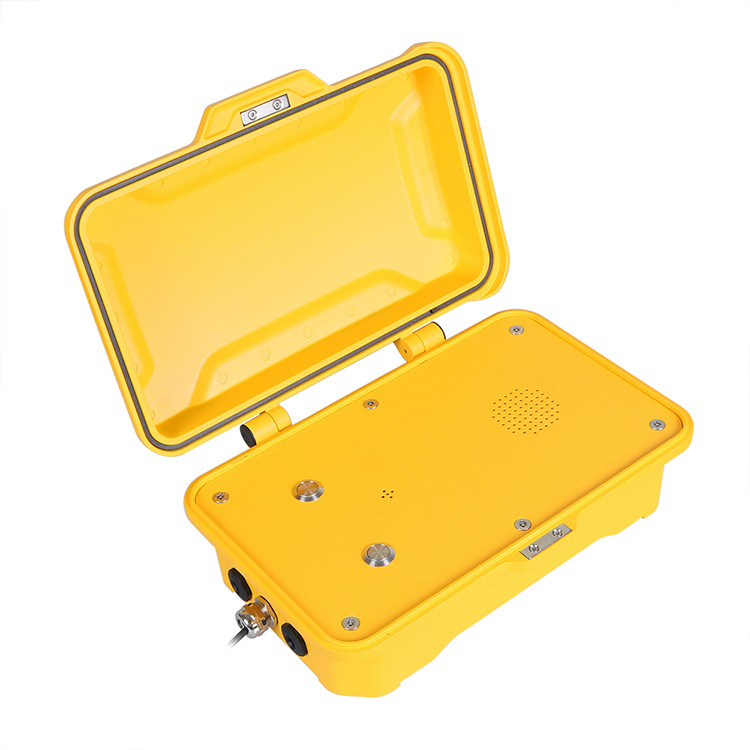

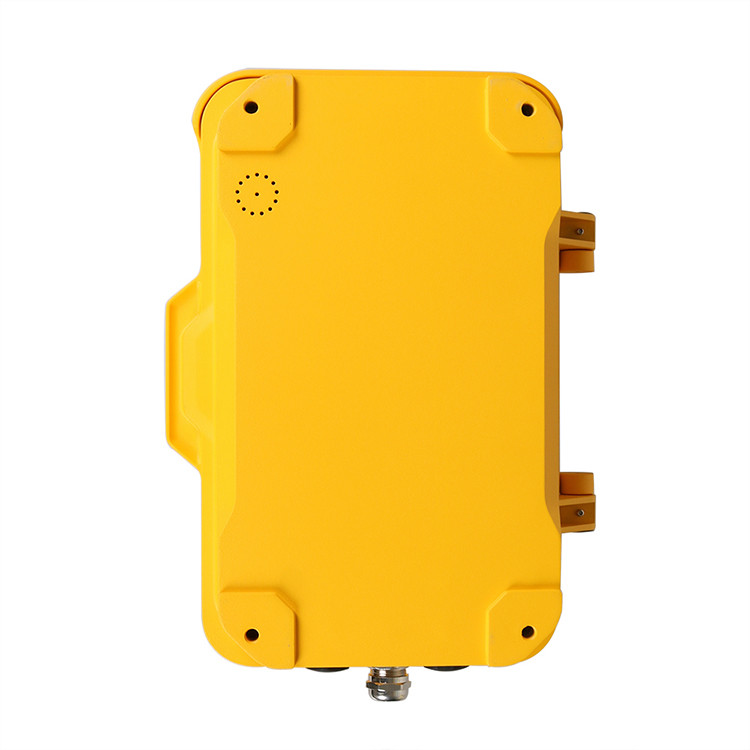

This speed dial weatherproof telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.



As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.


Main Features:
- Standard Analogue phone

Aluminum alloy die-casting body

- Handsfree operation

- Weather proof protection to IP67

- Two buttons can programmable for auto-dial
- Phone line powered (Analog)


Wall/ Pillar mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, ISO9001, RoHS compliant



Technical Parameters

Analogue Version
Power Supply  From the analogue telephone network
Supply Voltage  24 VDC to 65 VDC
Supply Current  20 mA DC to 100 mA DC
Ringer Volume  - 80dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method  DTMF mode in accordance with ITU-T recommendation Q.23.


Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Unit Size:    339*246*124 mm (H *W * D)
Carton Dimension:    200 * 300 *440 mm (H * W * D)
Packaging materials:     pearl cotton, carton
Net Weight:    6 KG
Gross weight:    7 KG
