| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR101-3B |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Color: | Yellow, Red, Orange (or Optional) |
|---|---|---|---|
| Weather Resistant: | IP67 | Power Supply: | PoE |
| Installation: | Wall/ Pillar Mounting | Size: | 246 *339 *124 (mm) |
| Net Weight: | 7 KG | Warranty: | 2 Years |
| High Light: | PoE Outdoor SIP Phone,IP67 Outdoor SIP Phone,PoE industrial sip phone |
||

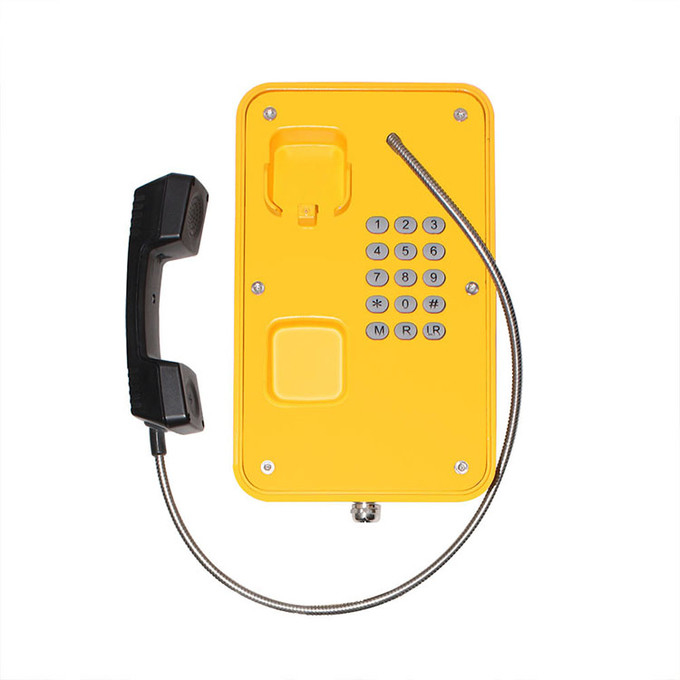

Moisture Resistant SIP Telephone with Emergency Buttons for Outdoor
This Weatherproof telephone is designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.
This SIP telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Main Features:
- Standard SIP/ VoIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67
- Wall/ Pillar mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing
- Three buttons can programmable for auto-dial
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- CE, FCC, ISO9001, RoHS compliant
SIP-VoIP Technical Parameters
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Applications
We offer industrial grade outdoor weatherproof telephones with a rugged, weatherproof telephone enclosure..Housed in aluminum alloy box and manufactured to a high standard, this Waterproof Phone offers increased resistance to vandalism, and ensure that the primary function of communications is always maintained. It is suitable for use in Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. Extremely easy to install.
Package
| Unit Size: | 339*246*124 mm (H *W * D) |
| Carton Dimension: | 200 * 300 *440 mm (H * W * D) |
| Packaging materials: | pearl cotton, carton |
| Net Weight: | 6 KG |
| Gross weight: | 7 KG |
FAQ
Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
