| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR103-FK |
| Minimum Order Quantity: | 1 Piece |
| Price: | negotiable |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union，PayPal |
| Supply Ability: | 10000pcs per month |
| Color: | Yellow Or Customized | Material: | Die-casting Aluminum Alloy |
|---|---|---|---|
| Version: | Analogue, SIP, GSM, 3G | Installation: | Wall Mounting |
| Size: | 204 *334 *74(mm) | Keypad: | Yes |
| Power Input: | 12-24V DC | Weather Resistance: | IP66-IP67 |
| Packaging Materials: | Pearl Cotton, Carton | Door: | Optional |
| High Light: | Analogue Industrial Weatherproof Telephone,SIP Industrial Weatherproof Telephone,SIP weatherproof analog phone |
||
full keypad waterproof phone holder outdoor analog marine telephone

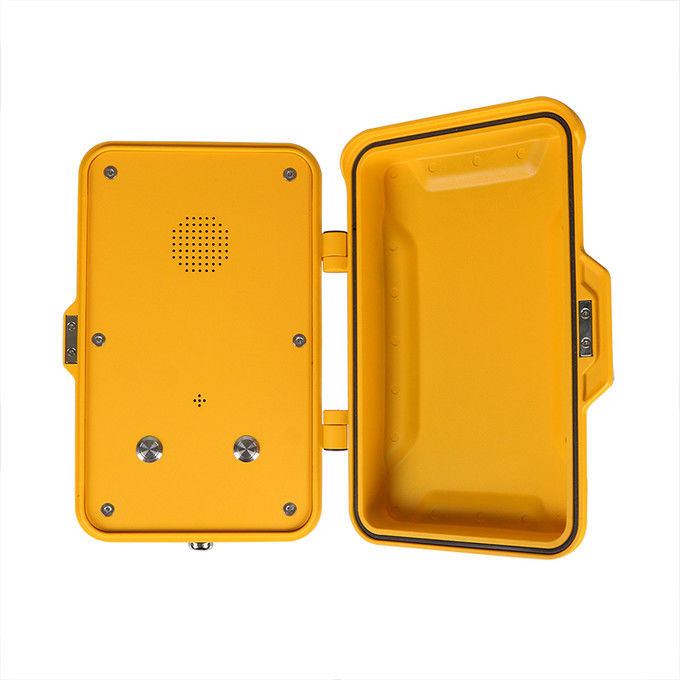

The industrial telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
JR103-FK is designed for voice communication in the hostile envirronment where reliability, efficiency and safety are of prime importance.
The waterproof telephone for outdoor and industry. we produce large quantity of Tunnel telephone and export to many countries. waterproof telephone are widely used in railway trackside. Most of metro line under ground inside the tunnel need to install waterproof telephone. This Subway telephone installed at tunnel and subway need waterpoof IP68. The Subway telephone need to be rugged and rubost.
full keypad waterproof phone holder outdoor analog marine telephone
The phone is suitable for use in harsh environment characterized by: indoor & outdoor, Presence of dust & water ingress. Corrosive atmosphere, varying temperature, loud ambient noise, safety ect.
full keypad waterproof phone holder outdoor analog marine telephone
Casing Material | Die cast aluminium body, cold rolled steel paceplate epoxy powder coated |
Colors | yellow, other colors to special order |
Handset Material | Cycoloy with stainless steel spiral cord |
Keypad | Rubber Keypad |
Temperature:Operating | Operating: -30°C to +65°C Storing: -40°C to +75°C |
Weather Resistance | IP66-IP67 |
Ringing Tone | Shrill warble tone 80 dBA @ 1 metre typical |
Hook switch | Electronic/ magnetic with no visible moving parts |
Push button | Vandal resistant stainless steel button |
M.T.B.F. | Calculated to have an M.T.B.F. in excess of 60,000 hours using |
Weight | Up to 5 kg depending on option |
| Package Materials | Pearl cotton, carton |
1. The handle is full-duplex with silicone dial pad, industrial-grade rubber buttons, strong corrosion resistance
2. Anti-vandal handset, using imported PC and ABS synthetic material, with stainless steel retractable hose. Internally designed with anti-destructive tensile steel rope, the tensile strength is 200KG or more.
3. Aluminum alloy die-casting shell, thickness 9 mm, strong and durable, good sealing; outdoor UV-proof powder coating, environmental protection, long-term outdoor exposure will not fade
4. All accessories such as the shell adopt multi-layer waterproof and dust-proof structure, waterproof, dust-proof and anti-corrosion, and the protection level is IP68
5. With a protective front cover, the phone is still as new after long-term use, and the magnetic door cover is easy to use
6. The top comes with a ringing indicator, sound and light prompts for incoming calls.
7. The running light of the front cover indicates that the working condition of the equipment is clear at a glance.
8. The color of the phone is optional, yellow is the standard color
9. External loudspeaker can increase the ringing volume to 110 points, and can broadcast and shout around the phone through the loudspeaker
full keypad waterproof phone holder outdoor analog marine telephone
| unit size | 204*334*74(mm) |
| Carton size | 200*300*440(mm) |
| Package Materials | pearl cotton, carton |
| Gross Weight | 6KG |
| Net Weight | 5KG |
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
