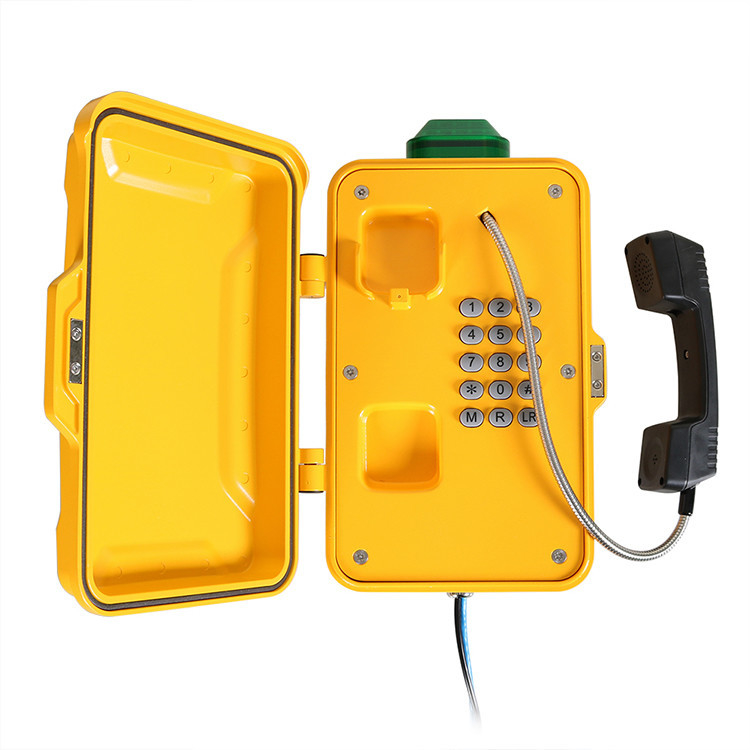

Aluminum Alloy IP67 Outdoor Weatherproof Telephones With Alarm Light

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-FK-L
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Weather Resistant: IP67
Power Supply: PoE, Or External 12V 2A Power Warranty: 2 Years
Color: Yellow, Blue, Red, Orange (or Optional) Size: 246 *339 *126 (mm)
Anti-vandal: Yes With Beacon: Yes
High Light:

Aluminum Alloy Outdoor Weatherproof Telephones

,

IP67 Outdoor Weatherproof Telephones

,

IP67 weather resistant phone


Product Description

IP67 Weatherproof Industrial Telephone with Beacon, PoE powered Tunnel Phone



 Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platforms, highways side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants, and related heavy duty industrial applications, etc.


Main Features

1. The handle is full-duplex with silicone dial pad, industrial-grade rubber buttons, strong corrosion resistance
2. Anti-vandal handset, using imported PC and ABS synthetic material, with stainless steel retractable hose. Internally designed with anti-destructive tensile steel rope, the tensile strength is 200KG or more.
3. Aluminum alloy die-casting shell, thickness 9 mm, strong and durable, good sealing; outdoor UV-proof powder coating, environmental protection, long-term outdoor exposure will not fade

4. All accessories such as the shell adopt multi-layer waterproof and dust-proof structure, waterproof, dust-proof and anti-corrosion, and the protection level is IP68

5. With a protective front cover, the phone is still as new after long-term use, and the magnetic door cover is easy to use

6. The top comes with a ringing indicator, sound and light prompts for incoming calls.
7. The running light of the front cover indicates that the working condition of the equipment is clear at a glance.

8. The color of the phone is optional, yellow is the standard color

9. External loudspeaker can increase the ringing volume to 110 points, and can broadcast and shout around the phone through the loudspeaker


External power supply or PoE (SIP-VoIP)
RJ45 port for SIP phone

Inductive coupler fitted as standard for hard of hearing
CE, FCC, ISO9001, RoHS compliant



Optional
Key lockable latch
Upper & lower internal mounting plates
Flat label area or custom embossed logo on door
Vandal resistant screws for upper mounting plate


Technical Parameters



Voice Features

Support 2 lines SIP, SIP 2.0 (RFC3261)

Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

Echo cancellation: Support G.168 and hand-free can support 96ms

Supports full duplex.

SIP support SIP domain, SIP authentication(none, basic, MD5), DNS name of the server, peer to peer

SIP support 2 servers, user can through each server to call in and out



Network Features

WAN/LAN: support Bridge mode

Support PPPoE for xDSL

Support VLAN

Support Stun penetration

Support DHCP to get IP on WAN port



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Aluminum Alloy IP67 Outdoor Weatherproof Telephones With Alarm Light 0

Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG

Aluminum Alloy IP67 Outdoor Weatherproof Telephones With Alarm Light 1

Aluminum Alloy IP67 Outdoor Weatherproof Telephones With Alarm Light 2



FAQ



Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.



Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.



Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.



Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
