Tunnel Weatherproof Analog Phone Moisture Resistant With Flashing Beacon

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR103-FK-L
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Color: Green, Yellow, Orange (or Optional)
Power Supply: Phone Line Power Weather Resistant: IP67
Size: 246 *339 *109 (mm) Net Weight: 6 KG
Installation: Wall/ Pillar Mounting
High Light:

Tunnel Weatherproof Analog Phone

,

Moisture Resistant Weatherproof Telephone

,

Weatherproof Telephone With Flashing Beacon


Product Description

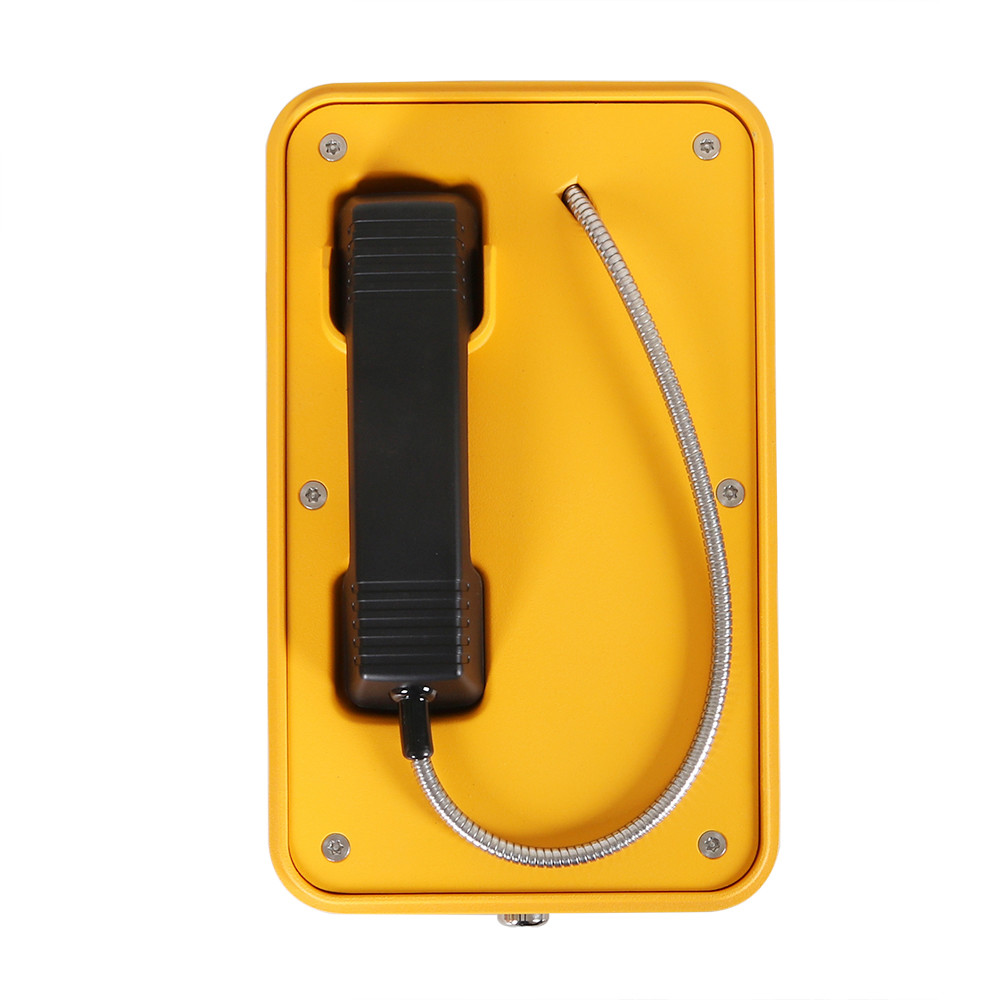

Moisture Resistant Analog Tunnel Telephone with Flashing Beacon



The weatherproof telephone is an emergency phone that specifically addresses the harsh environment of the outdoor industry.
weatherproof telephone for tunnel purpose made of aluminum alloy material by dies casting. The telephone is rugged and durable.



A special sealing design can ensure a complete waterproof grade up to IP67. weatherproof, dustproof, and moisture-resistant. The weatherproof telephone is widely used in tunnels and outdoor. Most metro and high-speed rail projects need to install IP67 telephones for emergency communication. Also, the expressway and power plant need weatherproof phones. Marines need moisture-resistant telephones. The weatherproof telephone is widely used in tunnels and outdoor.



Most metro and high-speed rail projects need to install IP66 telephones for emergency communication. The weatherproof telephone uses aluminum alloy as the raw material for the weatherproof enclosure, and the exterior is strong and has an explosion-proof effect. It is available in both VoIP and analog versions and is customizable.


Main Features:

  •  Standard Analogue phone
  •  Aluminum alloy die-casting body
  •  Vandal resistant handset and armored cord
  •  Weather proof protection to IP67
  •  Full keypad with memory, 0-9 buttons can be programmed as speed dial button
  •    “LR button for last number redial
  •    “R for flash recall
  •    “M for muting
  •  With an LED lamp fixed on the top, when there is an incoming call, the lamp will flash



Technical Specification

Analogue Version
Power Supply   From the analogue telephone network
Supply Voltage   24 VDC to 65 VDC
Supply Current   20 mA DC to 100 mA DC
Ringer Volume   - 80dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method   DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C




Applications

In addition to normal office telephones, and home phones; The outdoors, industrial plants, tunnels, construction sites, and harsh environments, also need to use special requirements of a number of telephone communication. The weatherproof telephone is designed for outdoor by J&R. An outer metal casting, sealing, and waterproof rating of IP67.




Package
Unit Size: 339*246*109 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 5 KG
Gross weight: 6 KG

Tunnel Weatherproof Analog Phone Moisture Resistant With Flashing Beacon 0

Tunnel Weatherproof Analog Phone Moisture Resistant With Flashing Beacon 1
