Analog / VoIP Industrial Weatherproof Telephone With Wall / Pillar Mounting

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-4B
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Version: Analog, VoIP, GSM/3G
Weather Resistant: IP67 Size: 246 *339 *124 (mm)
Net Weight: 7 KG Warranty: 2 Years
High Light:

VoIP Industrial Weatherproof Telephone

,

Aluminum alloy Weatherproof Telephone

,

GSM/3G Weatherproof Telephone


Product Description

Corrosion Resistant Waterproof Emergency Telephone for Outdoors



As a vandal resistant telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.




Main Features:
- Available in 3 versions (Analog, SIP/VoIP, GSM/3G)

Aluminum alloy die-casting body
Vandal resistant handset and armored cord
- Weather proof protection to IP67



Four buttons can programmable for auto-dial

Wall/ Pillar mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing



- Phone line power (Analog)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- CE, FCC, ISO9001, RoHS compliant





Applications
1. Tunnels

2. Mining

3. Marine

4. Underground

5. Metro stations

6. Railway platform

7. Highway side

8. Hotels

9. Parking lots

10. Steel Plants, relatedheavy duty industrial application, etc.




Technical Parameters

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
  -Active:1.8W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C

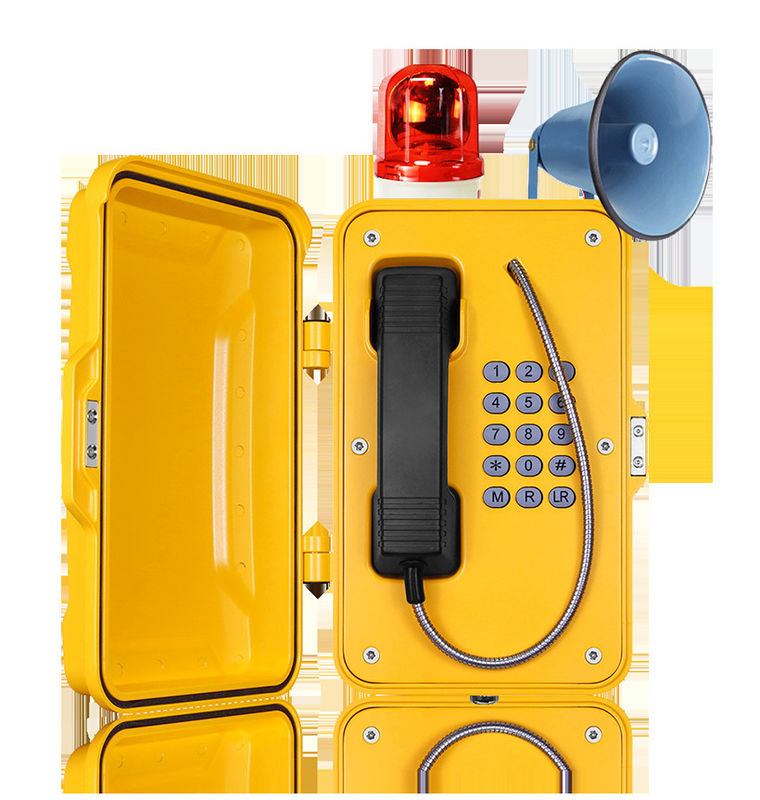

Analog / VoIP Industrial Weatherproof Telephone With Wall / Pillar Mounting 0

Feature Of Industrial Weatherproof Telephone

- Standard SIP/VOIP/IP phone

- Robust construction, Vandal resistant

- All weather protection IP66-67

- Tamper resistant fixings

- Simple installation

- Fast-fit terminal connection

- Various mounting option

- Handsfree operation,Speed dial

- Can be programmed remotely Non-volatile memory
