| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR201-FK |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Warranty: | 2 Years |
|---|---|---|---|
| Weather Protection: | IP55-IP65 | Handset: | ABS Material |
| Keypad: | 12-key Metal Keypad | Gross Weight: | 3 KG |
| Color: | Grey Or Customized Color | Version: | Analog, SIP, GSM/3G |
| High Light: | ABS material Vandal Resistant Inmate Telephone,Stainless Steel Inmate Telephone,Vandal Resistant Telephone For Jail |
||

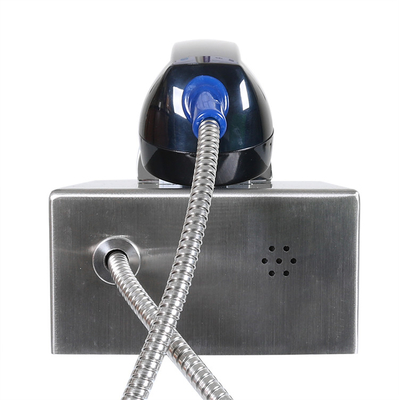

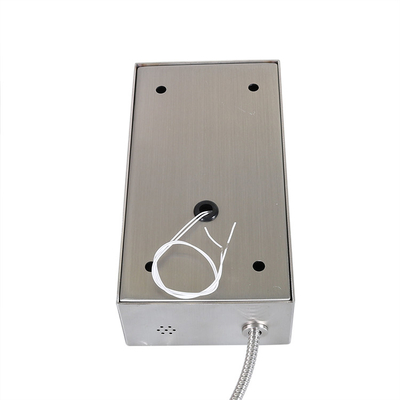

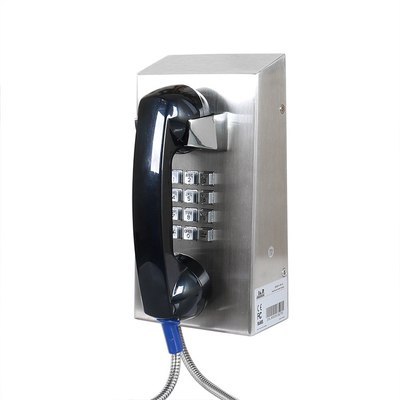

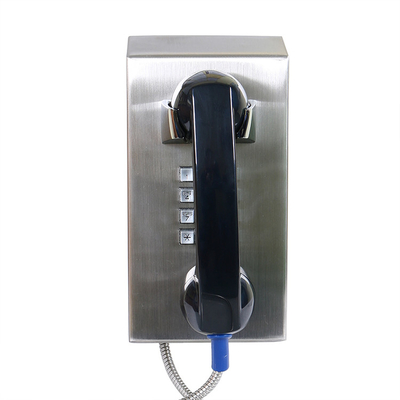

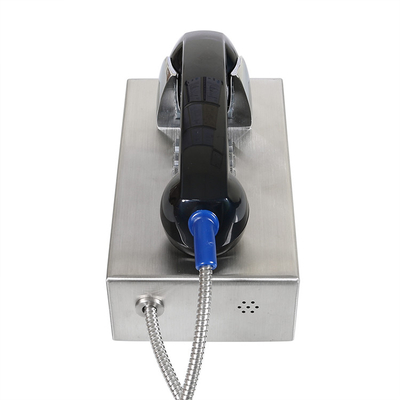

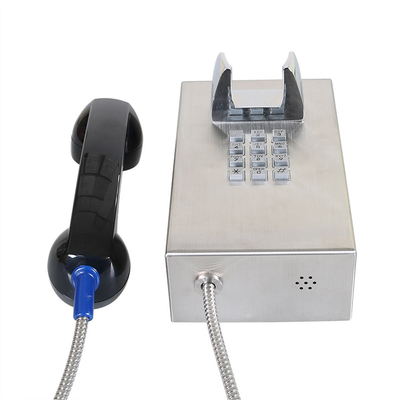

Vandal Resistant Telephone with Rugged Handset and Metal Keypad
Encased in a sturdy cold rolled steel case and manufactured to a high standard, this vandal resistant phone with armored cords offers increased vandal resistance and ensures that the primary function of communication is always maintained.
APPLICATIONS
Ideal for rail applications, marine applications, and tunnels. Underground mining, firefighters, industry, prisons, jails, car parks, hospitals, guard stations, police stations, bank halls, ATM machines, sports venues, inside and outside buildings, etc.
MAIN FEATURES
- Standard Analogue phone
- Robust housing, constructed of cold rolled steel
- Weather proof protection up to IP55-IP65
- Vandal resistant handset
- Full metal keypad
- Non-volatile memory
- Can be programmed remotely by tone phone or locally via keypad
- Telephone line powered (Analog version )
- Available for SIP/VOIP version
- External Power supply or PoE powered (SIP version)
- RJ45 port for SIP phone
- On wall mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, RoHS, ISO9001 compliant
TECHNICAL PARAMETERS
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
PACKAGE
unit size: 240 *100 *117 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: pearl cotton, carton
Net weight: 2 KG
Gross weight: 3 KG
