| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001:2015 |
| Model Number: | JR404-AP |
| Minimum Order Quantity: | 1pcs |
| Price: | Reconsideration |
| Packaging Details: | Standard carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS/Day |
| Product Name: | IP Video Intercom Phone | Model: | SIP-T06 |
|---|---|---|---|
| WiFi: | 802.11b/G/N,Support WiFi Hotspot | Networking: | 10/100/1000Mbps Ethernet, Dual Bridged Port For PC |
| Bluetooth: | Support | ||
| High Light: | FCC Touch Screen Video IP Phone,SIP protocol Video IP Phone,Touch Screen IP Video Intercom Phone |
||

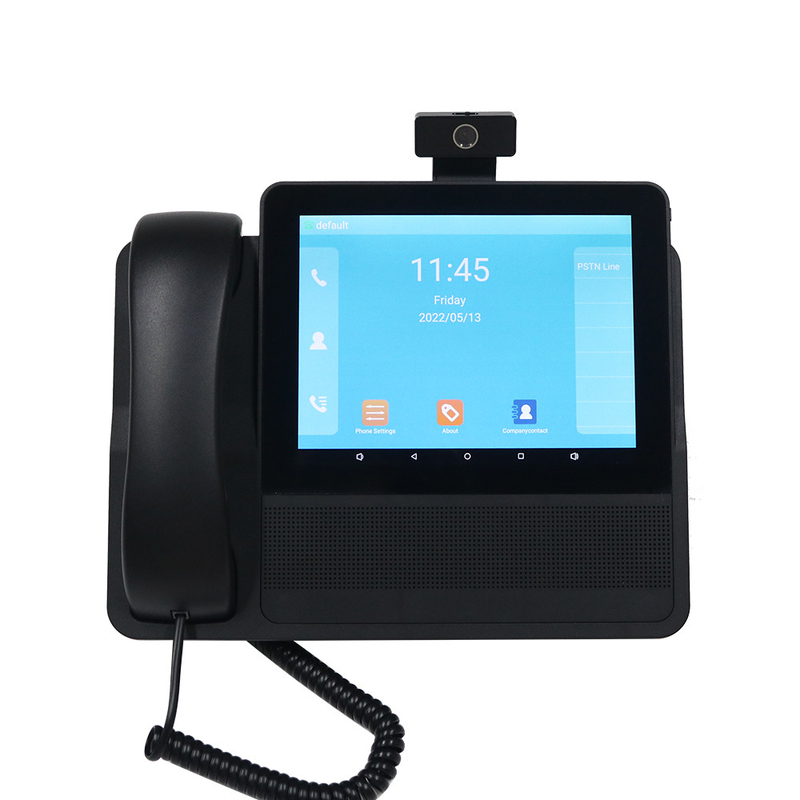

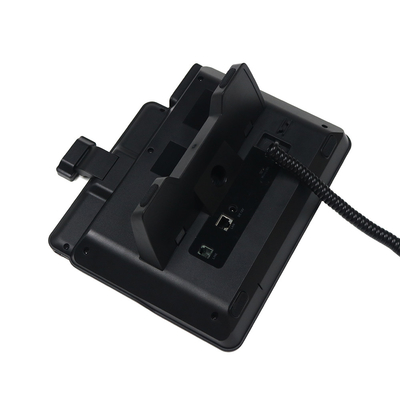

IP Network Intercom System, Touch Screen Multimedia Telephone Integrated Intelligent Video Host
JR404-AP IP video intercom phone Support high-definition audio and video calls based on SIP protocol, with excellent hardware echo suppression and noise reduction effects; support standard SIP2.0 protocol, compatible with mainstream switch, IMS and IPPBX systems on the market, as well as various SIP protocol mainstream audio and video terminals .
Flexible hardware configuration can be matched according to customer's application scenarios
Phone device adopts Cortex A7 1.2* quad-core design,
Supports high-definition voice calls, original ecological Android 7.1 system design,
Supports application expansion based on open Android platform, the device adopts 8-inch 1024×768 IPS high-definition resolution and supports multi-point Touch capacitive screen,
Support WIFI connection support (2.4G), and support Rj45 wired network to meet various network access methods;
Support HDMI high-definition output, can be connected to TV, projection and other equipment;
The device is also equipped with Bluetooth, suitable for different office situation.
Technical specifications
IP Network Intercom System, Touch Screen Multimedia Telephone Integrated Intelligent Video Host
| Core Chip | RK3128 Quad-core A7*1.2G Mail-400MP2 GPU |
| Running Memory | DDR3 1GB |
| Storage | EMMC 8GB |
| Function Description | Support VOIP phone audio and video calls, 3-party video conference, 5-party audio conference |
| Operating System | Android 7.1 |
| LCD Parameter | 8"1024*768 IPS |
| Touch Type | 2Capacitive touch screen |
| Camera Type | 2 million pixels can be blocked and inserted |
| Video Parameter | HD 1080P |
| Built-in WIFI | 802.11 b/g/n 2.4G |
| Built-in Bluetooth | BLE 4.0 |
| USB 2.0 Interface | Type C *1 |
| RJ45 Network Port | 10/100M *1 |
| RJ11 Telephone Interface | Support DTMF/FSK to display and dial |
| PSTN Phone Features | Hands-Free/Handset/DTMF Button/Flash/Record |
| SIP Account Quantity | 6 Accounts |
| Handset | RJ9 |
| Power Supply | 12V input |
| HDMI | 1.4 Optional |
| Recording | √ |
