Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | J&R |
Certification: | CE, FCC, RoHS, ISO9001 |
Model Number: | JR208-CB |
Minimum Order Quantity: | 1 piece |
Price: | negotiable |
Packaging Details: | pearl cotton, carton |
Delivery Time: | 3-5 working days after payment |
Payment Terms: | Western Union, L/C, T/T,PAYPAL |
Supply Ability: | 3000 sets per month |
Material: | Stainless Steel | Warranty: | 2 Years |
---|---|---|---|
Weather Protection: | IP55-IP65 | Handset: | ABS Material With Armored Cord |
Version: | Analogue/SIP/GSM | Powered: | Telephone Line Powered Or DC12V/POE Powered |
Keypad: | Hotline | Application: | Prisons, Jail, Parking Lots, Hospitals, Guard Stations, Police Stations, Bank Halls, ATM Machines |
Color: | Stainless Steel | G.W: | 4KGS |
Ringer Volume: | - 110dB(A) At A Distance Of 1 M (for External Horn Speaker) | Main Chip: | Audiocodec |
Product Name: | Brushed Stainless Steel Hot Line Handset Telephone 2 Years Warranty Auto Dial Emergency Phone | ||
Highlight: | Stainless Steel Hot Line Handset Telephone,Auto Dial Emergency Phone,IP65 Brushed emergency alert system iphone |

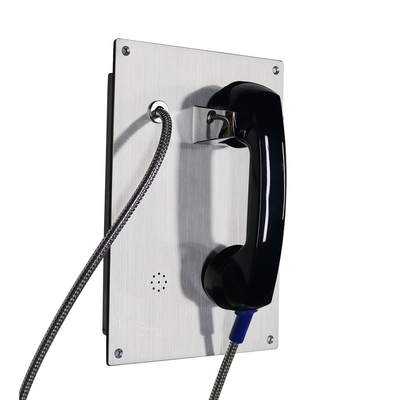

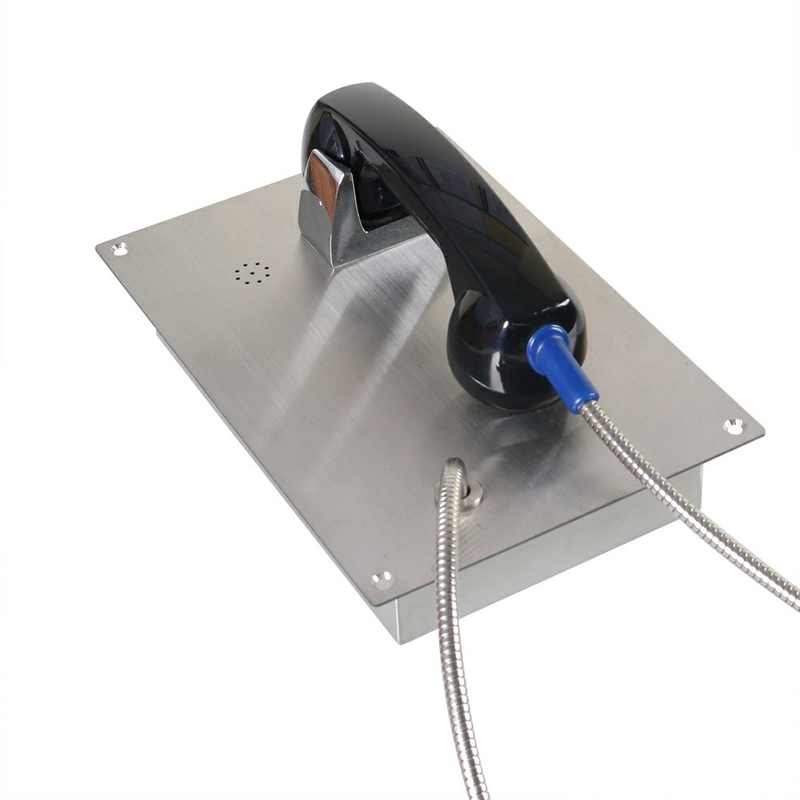

The Flush Emergency Phone Auto-Dial Handset Telephone is based on a stainless steel faceplate and provide a loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.
Handset Telephone, CB (hot line), Brushed Stainless steel body,
Unit size: 280*190*124(mm)
Housed in a anti-vandal SUS enclosure, flush mounting type
1. Standard Analogue/ SIP/ 3G/ 4G Phone
2. Can be programmed remotely by tone phone or locally via built-in keypad
3. Robust housing, constructed of stainless steel
4. Handset operation
5. Weatherproof and corrosion resisitant handset
6. Mini Size, on Flush mounting, simple intallation
7. Weather proof protection IP54-IP65
8. Inductive coupler fitted as standard for hard of hearing
9. Tamper resistant fixings
10. Fast-fit terminal connection
11. Non-volatile memory
12. Stainless steel armoured handset cord
13. Inductive coupler fitted as standard for hard of hearing
14. CE, FCC, RoHS, ISO9001 compliant
Analogue Version | |
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
Ringer Volume | - 80dB(A) at a distance of 1 m |
- 110dB(A) at a distance of 1 m (for external horn speaker) | |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version | |
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W -Active:1.8W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
3G Version | |
Power Supply | 12V DC |
Power Consumption | -Idle:0.3W
-Active: 1.5W
|
Communication Type | Full duplex |
Ringer volume | 90~95dB(A) at a distance of 1 m |
Program Method | Remote programming by SMS |
Frequency |
A version: |
Ambient conditions | |
Protection type | IP 66 as per EN60529 |
Operating temperature | -25°C to +70°C |
Storage temperature | -25°C to +85°C |
This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
