| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR208-CB |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Stainless Steel | Customized: | Support |
|---|---|---|---|
| Warranty: | 2 Years | Weather Protection: | IP65 |
| Vandal Resistant: | Yes | Flush Mounted: | Yes |
| Communication Type: | Full Duplex | Auto-dial: | Yes |
| Armored Cord: | Yes | Dimension: | 190*280*124 (mm) |
| High Light: | Flush Mounted Vandal Resistant Telephone,Clean Room SS Hotline Phone,IP65 Full Duplex Vandal Resistant Telephone |
||

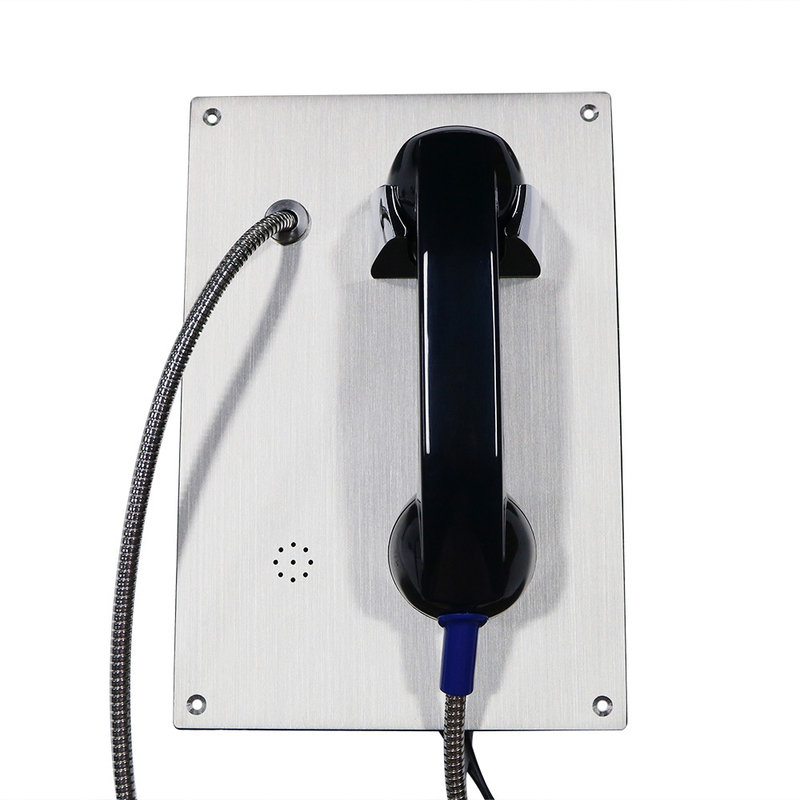

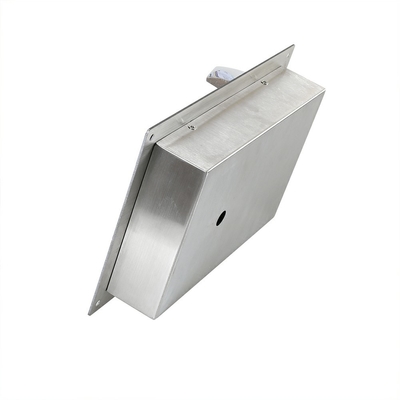

Flush-mounted Auto-Dial Handset Telephone for Clean Room
The Flush Emergency Phone Auto-Dial Handset Telephone is based on a stainless steel faceplate and provide a loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard Analogue phone or VoIP phone
- Robust housing, constructed of stainless steel
- Vandal resistant handset and armored cord
- Flush mounting, simple installation
- Weather proof protection from IP55 to IP65
- Full Rugged & durable keypad, easy to operate
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered for Analogue phone
- External Power supply or PoE (SIP phone)
- RJ45 port connector for SIP phone
- CE, FCC, ISO9001, RoHS compliant
TECHNICAL PARAMETERS
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE
