| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR202-2B |
| Minimum Order Quantity: | 1 piece |
| Price: | US $175.00~299.00 |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days after payment |
| Payment Terms: | L/C, T/T,paypal, Western Union |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel Or Stainless Steel | Warranty: | 2 Years |
|---|---|---|---|
| Weather Protection: | IP55-IP65 | Handset: | ABS Material With Armored Cord |
| Size: | 247 *130 *132 (mm) | Weight: | 3.5 KG |
| Version: | Analogue/SIP/GSM | Powered: | Telephone Line Powered Or DC12V |
| Product Name: | Speed Dial Emergency Hotline Phone Waterproof Vandal Proof Bank Phone | ||
| Highlight: | Speed Dial Emergency Hotline Phone,Vandal Proof Bank speed dial phone,Cold rolled steel speed dial phone |
||
◖ Product Description ◗

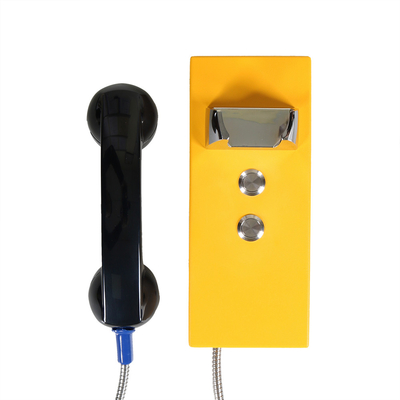

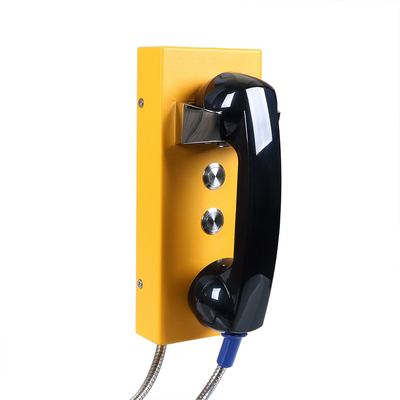

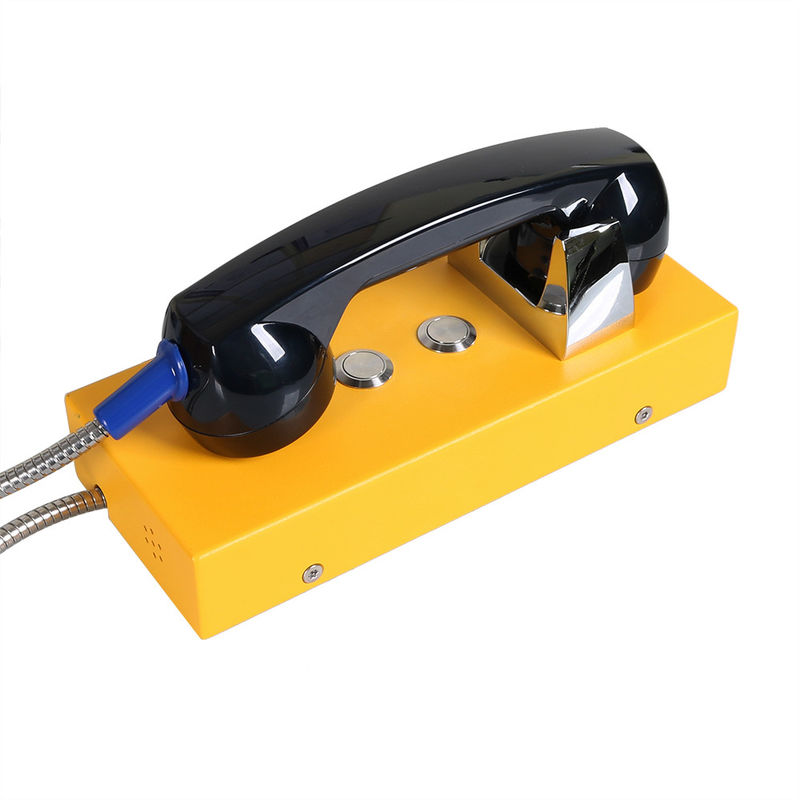

Speed Dial Emergency Hotline Phone Waterproof Vandal Proof Bank Phone
The phone uses a high-quality cold-rolled steel panel with anti-vandalism function. At the same time, the shell has a grounding device, which is completely isolated from the internal circuit and has a certain electromagnetic shielding function. In addition, accessories such as mobile phones, keyboards, and circuit boards are made of multiple layers of waterproof and dustproof materials. It is very suitable for places such as banks, schools and prisons.
◖ Technical Specification ◗
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 65 as per EN60529 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Packaging | |
|---|---|
| Unit Size | 240 *100 *106(mm) |
| Carton Size | 310 *140 *130 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2 KG |
| Gross Weight | 3 KG |
◖ Features ◗
Speed Dial Emergency Hotline Phone Waterproof Vandal Proof Bank Phone
◐ Robust housing, constructed of stainless steel
◐ Vandal resistant armored cord handset
◐ 2 metal buttons to edit speed dial
◐ Inductive coupler fitted as standard for hard of hearing
◐ Impact, shock, fall and vibration proof,able to perform in difficult environments
◐ On wall mounting, simple installation
◖ FAQ ◗
Speed Dial Emergency Hotline Phone Waterproof Vandal Proof Bank Phone
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What do IP Ratings mean?
A: IP Ratings apply to enclosures such as our telephone cabinets. They indicate how the enclosure protects against water and dust ingress, the higher the better.
Q: How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days
2.Send by Air: Arrive at destination Airport fast then pick it up by yourself
3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
