IP65 Rugged Vandal Resistant Telephone Full Duplex Cold Rolled Steel SIP 2.0

Name: IP65 Rugged Vandal Resistant Telephone Full Duplex Cold Rolled Steel SIP 2.0
Brand: J&R Technology Limited
SKU: JR206-FK
Price: 244.00 USD
Availability: InStock

Brand Name:	J&R
Model Number:	JR206-FK
MOQ:	1 set
Price:	US$189~US$299
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Material:

Cold Rolled Steel

Color:

Bule, Or Optional

Warranty:

2 Years

Weather Protection:

IP65

Handset:

ABS Material With Armored Cord

Keypad:

Full Rugged & Durable Keypad

Voice Control Button:

Yes

Vandal Resistant:

Yes

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

IP65 Rugged Vandal Resistant Telephone

Full Duplex Vandal Resistant Telephone

SIP 2.0 Weather Resistant Telephone

Product Description

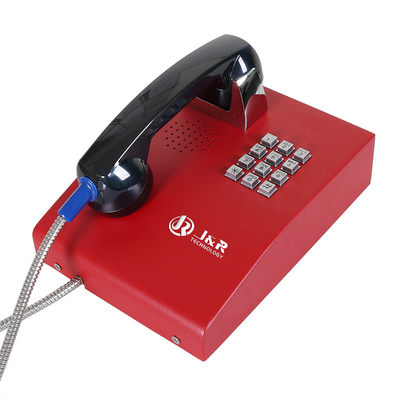

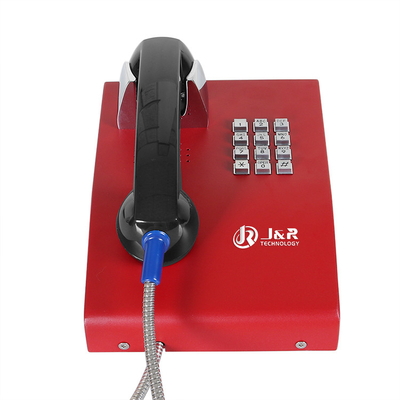

Rugged full Keypad Vandal Resistant Telephone Cold Rolled Steel bank phone

The telephone is housed in Stainless steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.

Ideal for parking lots, prisons, railway/metro platforms,power plant,hospitals, police stations, ATM machines, stadiums, inside and outside building etc.

Handset Telephone, Full metal keypad(12keys), Red color(other colour on demand), Cold-rolled steel body,
Unit size: 248*185*129(mm)
Housed in a anti-vandal cold-rolled steel enclosure,wall mounting type

Features

Rugged full Keypad Vandal Resistant Telephone Cold Rolled Steel bank phone

^{★ Bellmouth orifice - improve sound quality

★ Zinc alloy metal full keypad - waterproof and vadal resistant

★ Imported ABS and PC composite handset - sturdy and durable

★ On wall mounting - simple installation}

^{★ Weather proof protection - up to IP65

★ Programmable for auto-dial - convenient and quick}

^{★ Magnetic hook - reduce wear and tear}

^{★ CE,FCC,ROSH compliant - quality assurance}

^{★ Stainless steel armored cord - tensile force up to 200KG}

IP65 Rugged Vandal Resistant Telephone Full Duplex Cold Rolled Steel SIP 2.0 0

Technical Specification

Rugged full Keypad Vandal Resistant Telephone Cold Rolled Steel bank phone

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer Volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection Type	IP 66 as per EN60529
Operating Temperature	-30°C to +70°C
Storage Temperature	-40°C to +75°C

IP65 Rugged Vandal Resistant Telephone Full Duplex Cold Rolled Steel SIP 2.0 1

IP65 Rugged Vandal Resistant Telephone Full Duplex Cold Rolled Steel SIP 2.0 2

Applications

Rugged full Keypad Vandal Resistant Telephone Cold Rolled Steel bank phone

JR206-FK Robuste Telephone, Multi-function Telephone suitable for use in park, roadside, bank, ATM, campus, stadiums, jail, outside or outside building, etc.

IP65 Rugged Vandal Resistant Telephone Full Duplex Cold Rolled Steel SIP 2.0 3
