| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR205-FK |
| Minimum Order Quantity: | 1 Piece |
| Price: | negotiable |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 10000pcs per month |
| Material: | Stainless Steel | Color: | Color Optional |
|---|---|---|---|
| Handset Material: | ABS Material Handset With Stainless Steel Spiral Cord | Keypad: | Weather Sealed Tactile Digital Keypad |
| Operating Temperature: | -30°C To +65°C | Weather Resistance: | IP65 |
| Ringing Tone: | Shrill Warble Tone 80 DBA @ 1 Metre Typical | Hook Switch: | Electronic / Magnetic With No Visible Moving Parts |
| Unit Size: | 300 *120 *101(mm) | Packaging Materials: | Pearl Cotton, Carton |
| Net Weight: | 3KG | Gross Weight: | 4KG |
| High Light: | GSM Jail Metallic Public Telephone,IP54 GSM Metallic Public Telephone,Tactile Keypad Vandal Resistant Phone |
||
GSM Jail Metallic Public Telephone Tactile Keypad Vandal Resistant Phone
the telephone is housed in cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
Ideal for parking lots, prisons, railway/metro platforms,power plant,hospitals, police stations, ATM machines, stadiums, inside and outside building etc.
GSM Jail Metallic Public Telephone Tactile Keypad Vandal Resistant Phone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 55~IP65 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Weight | Up to 4 kg depending on option |
GSM Jail Metallic Public Telephone Tactile Keypad Vandal Resistant Phone

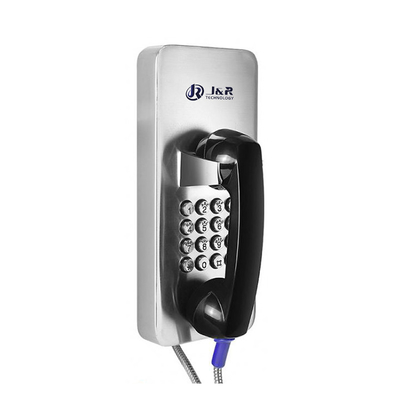

Front & Bottom

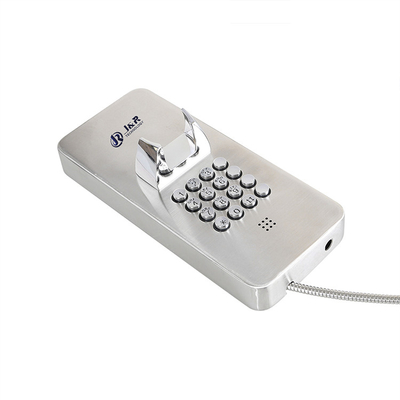

Back & Top
Applications
JR205-FK GSM Metallic Public Telephone suitable for use in airport, hotel, bank, ATM, campus, elevator/lift, jail/prison, outside or outside building, etc.
