Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | J&R |
Certification: | CE, FCC, RoHS, ISO9001 |
Model Number: | JR207-FK |
Minimum Order Quantity: | 1 set |
Price: | US$189~US$299 |
Packaging Details: | pearl cotton, carton |
Delivery Time: | 2-5 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000 sets per month |
Material: | Cold Rolled Steel | Color: | Bule, Or Optional |
---|---|---|---|
Warranty: | 2 Years | Weather Protection: | IP65 |
Handset: | ABS Material With Armored Cord | Keypad: | Full Rugged & Durable Keypad |
Voice Control Button: | Yes | Vandal Resistant: | Yes |
High Light: | Full Keyboard Rugged Prison Phone,16 Keys Rugged Prison Phone,Speed Dial Rugged SIP Telephone |

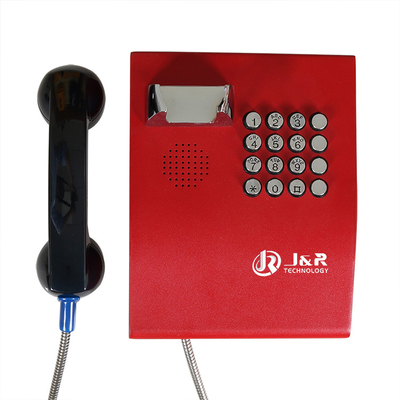

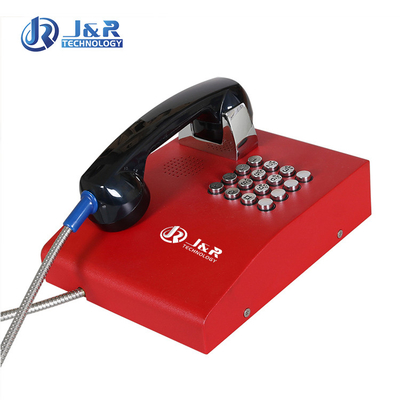

Full keyboard prison phone rugged anti-sabotage SIP telephone
It is ideal for Highway side use, other than that, it is often used at university and college campuses, streets, public square, car-parks, police stations, outside buildings, shopping malls, industrial areas and remote areas.
Full keyboard prison phone rugged anti-sabotage SIP telephone
Operating Temperatures | -40°C to + 70°C |
Relative humidity high | 93% R.H at 40°C (non condensing) |
Casing Material | Heavy Duty aluminium (salt & corrosion resistant) |
Illuminated LCD Display | for status notifications and instructions |
Flashing Light | ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc |
Excellent Sound Quality | STI approved to 0.9 (Excellent Sound) |
Ringing volume | 80 dB(A) in 1m distance |
Power Supply | 24VDC input, or Power over Ethernet (PoE) |
Connection | RJ45 Ethernet socket through IP67 plug connector |
Quality of Service (QoS) | ensuring optimal delivery of voice |
Type of Service (ToS) | high throughput and reliability (RFC3168) |
ISDN gateway compliance | connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN |
Inbuilt redundancy | able to make diversion calls to 2nd PBX |
TR069 (Technical Report 069) | for advanced status monitoring and control |
Configuration | web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available |
Keypad Option | Full metal keypad(16 keys), 4 additional buttons programmable for speed-dial |
Remote Management | Available with remote management software,to simplify installation and cut maintenance costs |
Product Specification
Full keyboard prison phone rugged anti-sabotage SIP telephone
★ Vandal resistant armored cord handset
★ Communicate by telephone is clear and loud
★ Waterproof and vandalproof keypad
★ Cold rolled steel body, strong protection against violence
Applications & Project Display
Full keyboard prison phone rugged anti-sabotage SIP telephone
JR207-FK PCB Vandal Proof SIP Telephone is ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
Packing & Delivery
Full keyboard prison phone rugged anti-sabotage SIP telephone
Unit Size | 248 *195 *132 (mm) |
Carton Size | 200 *300 *440 (mm) |
Packaging Materials | Pearl cotton, carton |
Net Weight | 2.5 KG |
Gross Weight | 3.5 KG |
Port | Shenzhen, Guangdong | |||
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
Est. Time(Days) | 2 | 25 | To be negotiated |
