Home > products > Vandal Resistant Telephone > SIP2.0 SS Vandal Resistant Telephone IP54 VoIP Desk Mounting

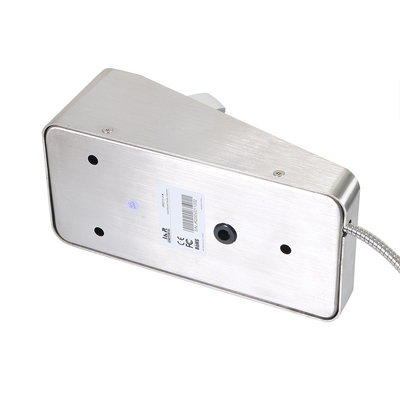

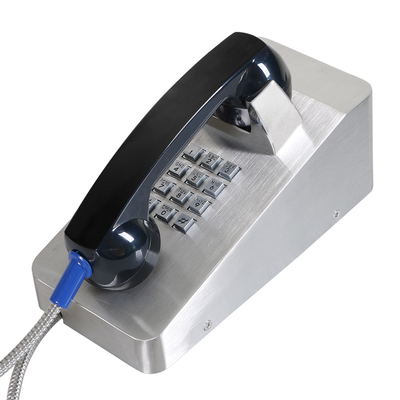

SIP2.0 SS Vandal Resistant Telephone IP54 VoIP Desk Mounting

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, ISO9001

Model Number: JR211-FK

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: negotiable

Packaging Details: J&R standard packing ,pearl cotton, carton

Delivery Time: 3-7 working days after payment

Payment Terms: L/C, T/T, Western Union,PayPal

Supply Ability: 10000pcs per month

Get Best Price
Product Details
High Light:

SIP2.0 SS Vandal Resistant Telephone

,

IP54 VoIP Vandal Resistant Telephone

,

Anti Vandal Auto Dial Emergency Phone

Size:
300 *150 *160(mm)
Color:
Gray Or Customized
Material:
Die Cast Aluminum
Function:
Communication
Installation:
Desk Mounting
Ringer Volume:
90~95dB(A) At A Distance Of 1 M
Temperature:
Operating: -30°C To +65°C
Ingress Protection Rating:
IP54-IP65
Warranty:
2 Years
Net Weight:
3 Kg
Gross Weight:
4 Kg
Size:
300 *150 *160(mm)
Color:
Gray Or Customized
Material:
Die Cast Aluminum
Function:
Communication
Installation:
Desk Mounting
Ringer Volume:
90~95dB(A) At A Distance Of 1 M
Temperature:
Operating: -30°C To +65°C
Ingress Protection Rating:
IP54-IP65
Warranty:
2 Years
Net Weight:
3 Kg
Gross Weight:
4 Kg
Product Description

JR211-FK IP65 VoIP Stainless Steel Vandal Resistant Telephone



JR211-FK VoIP Stainless Steel Desk Telephone supports the hotline call, may realize the call to hang up automatically, which is suitable for tunnel, railway, underground mine, prison, guard room, bank and many other areas.



The shell of JR211-FK has a grounding device and is completely isolated from the internal electrical circuit, which has a certain electromagnetic shielding function.



The main circuit of the telephone is controlled by industrial grade atml single chip microcomputer, while the performance is stable, the intelligence degree is high, and the program can be upgraded.





Heavy Duty, Vandal Resistant Metal Telephones







IP65 VoIP Stainless Steel Vandal Resistant Telephone Technical Specification



Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
  Protection Type IP 66 as per EN60529
  Operating Temperature -30°C to +70°C
  Storage Temperature -40°C to +75°C









IP65 VoIP Stainless Steel Vandal Resistant Telephone Features





Heavy Duty, Vandal Resistant Metal Telephones





        ★ Compatible W/PBX, Centrex, etc

        ★ Constructed of durable 14 gauge stainless steel

        ★ Armored handset desk phone with reinforced armored cord

        ★ Internal lanyard inside the armored cord sheath

        ★ Metal Magnetic cradle hook for extra protection

        ★ Built in ringer can be left on or turned off







IP65 VoIP Stainless Steel Vandal Resistant Telephone Applications



JR211-FK VoIP Stainless Steel Desk Telephone is suitable for the centre of transport, production production and utilities commercial, manufacturing and construction, educational & government facilities or any location in which extra security is needed.

Rugged Outdoor Weatherproof Telephone











IP65 VoIP Stainless Steel Vandal Resistant Telephone Packing & Delivery



Heavy Duty, Vandal Resistant Metal Telephones



 Unit Size 300 *150 *160 (mm)
 Carton Size 200 *300 *440 (mm)
 Packaging Materials Pearl cotton, carton
 Net Weight 3 KG
 Gross Weight 4 KG






IP65 VoIP Stainless Steel Vandal Resistant Telephone Customised Accessories



Heavy Duty, Vandal Resistant Metal Telephones



  • J&R provide LOGO printing and accessories customization services.
  • We will also provide suitable solutions according to the needs of customers.
  •
  • HOOK FUNCTION: Magnetic hooks for choice
  • KEYBOARD SHAPE: Round buttons and square buttons for choice
  • INDICATOR LAMP COLOR: Red, yellow, blue, green for choice
  • MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice
  • HADSET CORD: Black curly handset cord or stainless steel spiral cord
  • If you have any custom requirements, please feel free to contact us.







FAQ





IP65 VoIP Stainless Steel Vandal Resistant Telephone



Q: Do you have any MOQ limit?

A: Low MOQ, 1pc is available



Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



Q: What’s the quality standard of your products?

A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Can you produce a product in a color of my choosing?

A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



Q: Do you provide an installation service?

A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



Q: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products against delivery.



Q: How about the shipping?

A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days

2.Send by Air: Arrive at destination Airport fast then pick it up by yourself

3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)



Q: How can I pay you?

A: Many convenient methods for choose: Paypal, T/T, L/C.
