Volume Control Vandal Resistant Telephone SIP2.0 PoE Digital LCD Prison Telephone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR212-FK
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Size: 247*130*132(mm) Color: Customized
Material: Stainless Steel Function: Communication
Installation: Wall Mounting Ringer Volume: 90~95dB(A) At A Distance Of 1 M
Temperature: Operating: -30°C To +65°C Ingress Protection Rating: IP65
Warranty: 2 Years Net Weight: 3.5 Kg
Gross Weight: 4 Kg Feature: Anti-Vandal
High Light:

Volume Control Vandal Resistant Telephone

,

SIP2.0 PoE Vandal Resistant Telephone

,

Digital LCD Prison Telephone


Product Description

JR212-FK.pdf With High Quality Digital LCD Prison Telephone

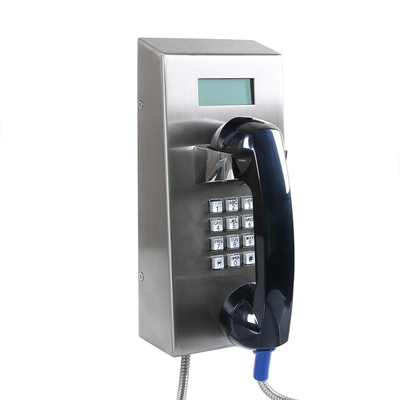

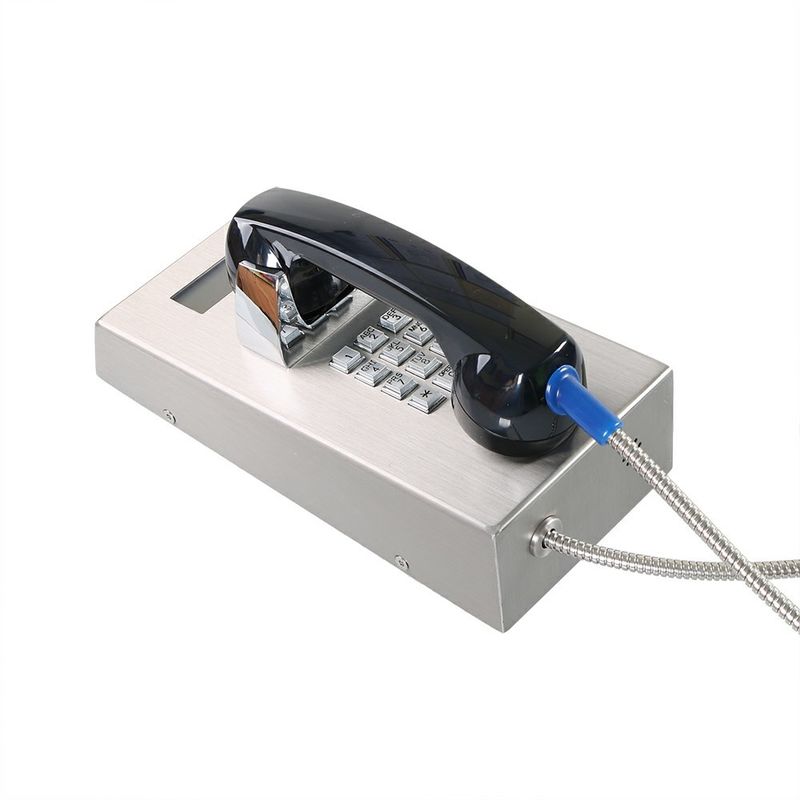

JR212-FK Wholesale Vandal Proof Digital LCD Telephones is housing in a stainless steel body with a LCD display, which perform good oxidation resistance and heat resistance. A volume control button is provided to adjust the volume.





Auto Dialer Elevator Emergency Telephone 0







  Casing Material Stainless steel body
  Colors Red, Yellow, Grey
  Handset ABS material handset with stainless steel spiral cord
  Keypad

Weather sealed tactile digital keypad

Chrome key and frame made of zinc alloy

  Temperature Operating: -30°C to +65°C
Storing: -40°C to +75°C
  Weather Resistance IP65
  Ringing Tone Shrill warble tone 80 dBA @ 1 metre typical
  Hook switch Electronic / magnetic with no visible
moving parts
  Weight Up to 4 KG depending on option







With High Quality Digital LCD Prison Telephone Product Specification



Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec

G.711 A/U, G.722 8000/16000, G.72

3, G.729

  Communication Type Full duplex
  Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
  Protection Type IP 66 as per EN60529
  Operating Temperature -30°C to +65°C
  Storage Temperature -40°C to +75°C





Auto Dialer Elevator Emergency Telephone 1

Volume Control Vandal Resistant Telephone SIP2.0 PoE Digital LCD Prison Telephone 2









With High Quality Digital LCD Prison Telephone Features



★ LCD display



★ Volume control button



★ SUS316 stainless steel body



★ Standard analogue pgone or SIP phone





Emergency GSM Telephone Box 2







With High Quality Digital LCD Prison Telephone Applications & Project Display



JR212-FK Wholesale Vandal Proof Digital LCD Telephones is ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.

Emergency GSM Telephone Box 3







With High Quality Digital LCD Prison Telephone Packing & Delivery



  Unit Size 247 *130 *132 (mm)
  Carton Size 340 *235 *165 (mm)
  Packaging Materials Pearl cotton, carton
  Net Weight 3.5 KG
  Gross Weight 4 KG





Emergency GSM Telephone Box 4
