Industrial Weatherproof Telephone
Created with Pixso.

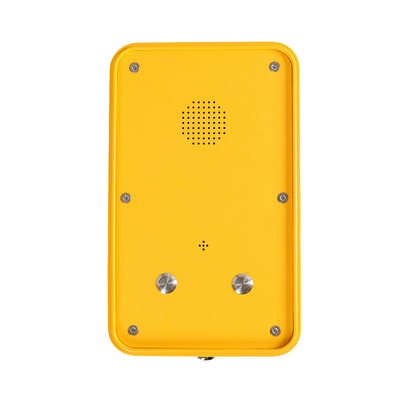

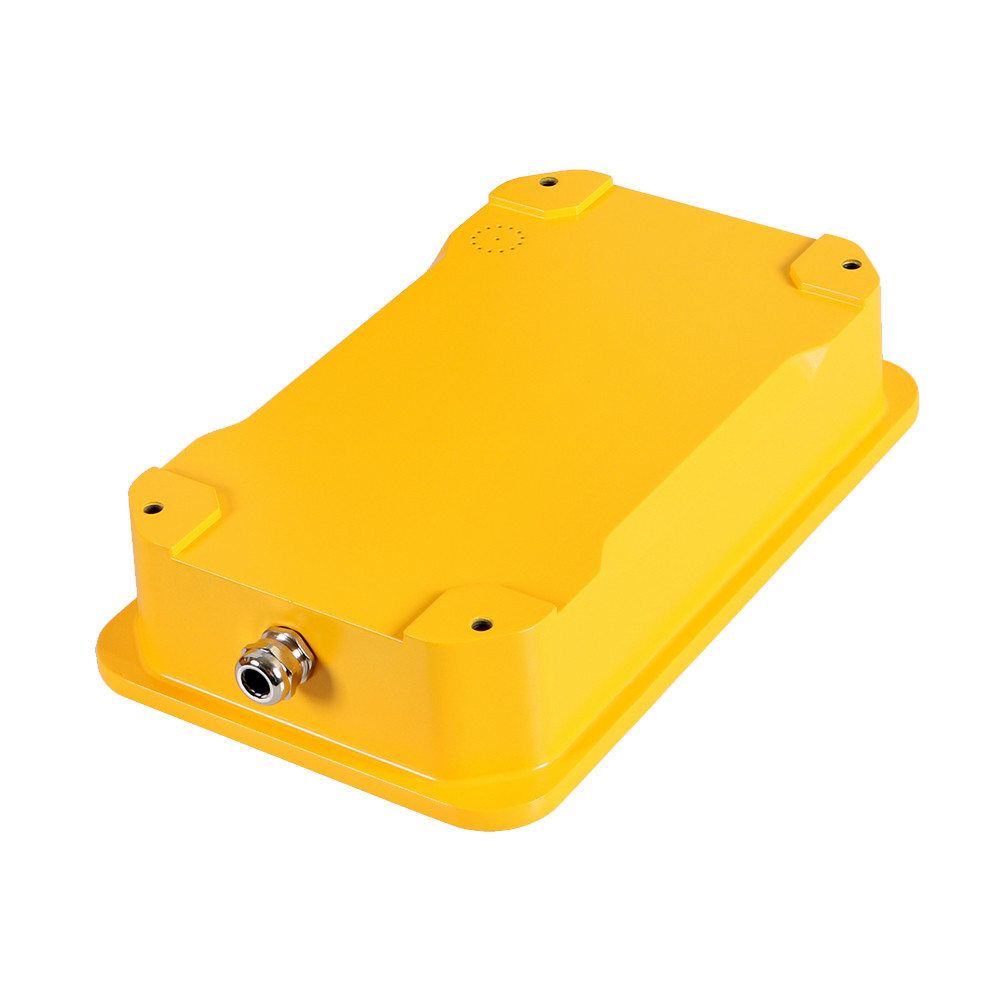

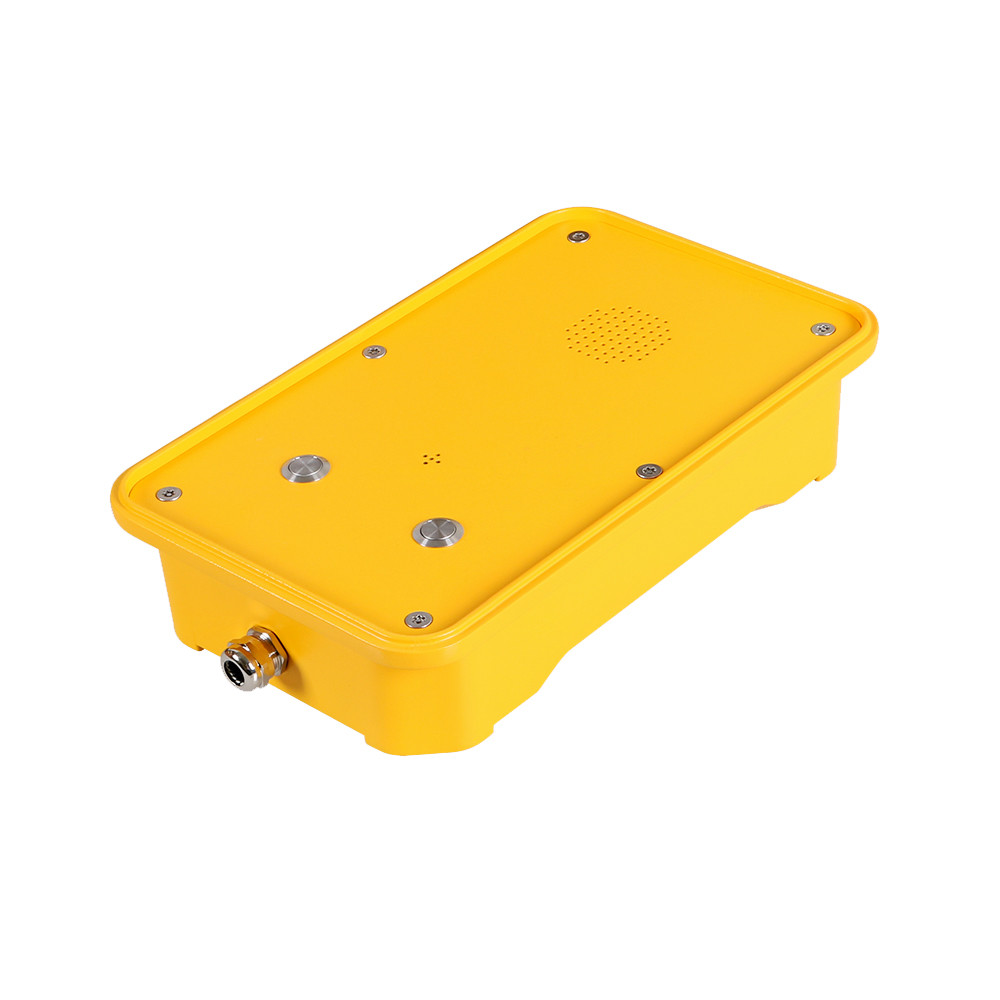

Aluminum Alloy Industrial Weatherproof Telephone IP67 PoE SIP VoIP Wall Pillar

Aluminum Alloy Industrial Weatherproof Telephone IP67 PoE SIP VoIP Wall Pillar

Brand Name: J&R
Model Number: JR104-2B-SIP
MOQ: 1 set
Price: Reconsideration
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, IP67, ISO9001:2015
Material:
Aluminum Alloy
Weather Resistant:
IP67
Power Supply:
PoE, Or External Power Supply
Size:
246 *339 *126 (mm)
Color:
Yellow, Blue, Orange (or Optional)
Installation:
Wall/ Pillar Mounting
Net Weight:
12 KG (with Lamp&horn)
Anti-vandal:
Yes
Warranty:
2 Years
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

Aluminum Alloy Industrial Weatherproof Telephone

,

IP67 PoE Industrial Weatherproof Telephone

,

Wall Pillar Waterproof Emergency Telephone

Product Description



Waterproof intercom SIP/VoIP telephone Tunnel Emergency Phone



The aluminum alloy die-casting shell of JR104-2B-SIP can withstand a great deal of vandalism. The imported seal ring is placed inside to extend service life and the ingress protection rating is up to IP67. Even in hazardous areas, this telephone may offer high quality in communication.

The phone is a hands-free emergency phone, equipped with two vandal-proof metal buttons, supports speed dialing, and the buttons can be customized with a luminous display.




Waterproof intercom SIP/VoIP telephone Tunnel Emergency Phone Main Features:



  • - Standard SIP/VoIP phone

  • - Aluminum alloy die-casting body

  • - Weather proof protection to IP67

  • - 2 Vandal resistant metal button for Emergency

  • - Hands free operation

  • - Wall/ Pillar mounting, simple installation

  • - The phone will ringing loudly and lamp will flashing when there is a incoming call.

  • - With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.

  • - External power supply or PoE (SIP-VoIP)

  • - RJ45 port for SIP phone

  • - Inductive coupler fitted as standard for hard of hearing

  • - CE, FCC, ISO9001, RoHS compliant





Technical Parameters



SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 67 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C
Weight  Up to 2 KG depending on option



Aluminum Alloy Industrial Weatherproof Telephone IP67 PoE SIP VoIP Wall Pillar 0



Aluminum Alloy Industrial Weatherproof Telephone IP67 PoE SIP VoIP Wall Pillar 1





Applications


This weatherproof industrial telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.





Aluminum Alloy Industrial Weatherproof Telephone IP67 PoE SIP VoIP Wall Pillar 2
