Tactile Keypad Vandal Resistant Telephone GSM Metallic IP Jail IP55

Name: Tactile Keypad Vandal Resistant Telephone GSM Metallic IP Jail IP55
Brand: J&R Technology Limited
SKU: JR205-FK
Price: 601.00 USD
Availability: InStock

Brand Name:	J&R
Model Number:	JR205-FK
MOQ:	1 Piece
Price:	negotiable
Payment Terms:	L/C, T/T, Western Union,PayPal
Supply Ability:	10000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Material:

Stainless Steel

Color:

Color Optional

Handset Material:

ABS Material Handset With Stainless Steel Spiral Cord

Keypad:

Weather Sealed Tactile Digital Keypad

Operating Temperature:

-30°C To +65°C

Weather Resistance:

IP65

Ringing Tone:

Shrill Warble Tone 80 DBA @ 1 Metre Typical

Hook Switch:

Electronic / Magnetic With No Visible Moving Parts

Unit Size:

300 *120 *101(mm)

Packaging Materials:

Pearl Cotton, Carton

Net Weight:

3KG

Gross Weight:

4KG

Packaging Details:

J&R standard packing ,pearl cotton, carton

Supply Ability:

10000pcs per month

Highlight:

Tactile Keypad Vandal Resistant Telephone

GSM Metallic Vandal Resistant Telephone

IP55 Stainless Steel Telephone

Product Description

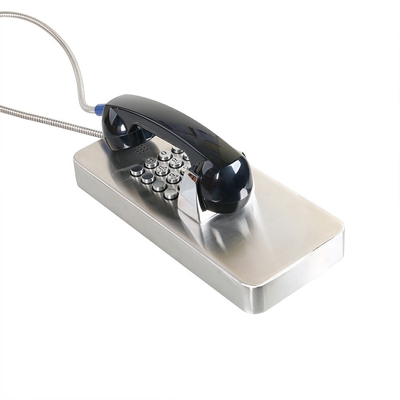

GSM Metallic Public Telephone Tactile Keypad IP Jail Vandal Resistant Telephone

the telephone is housed in cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.

Ideal for parking lots, prisons, railway/metro platforms,power plant,hospitals, police stations, ATM machines, stadiums, inside and outside building etc.

Tactile Keypad Vandal Resistant Telephone GSM Metallic IP Jail IP55 0

GSM Metallic Public Telephone Tactile Keypad IP Jail Vandal Resistant Telephone

Casing Material	Stainless steel steel body
Colors	RED, YELLOW, GREY
Handset Material	ABS material handset with stainless steel spiral cord
Keypad	Weather sealed tactile digital keypad. Chrome key and frame made of zinc alloy. Vandal resistance.
Temperature	Operating: -30°C to +65°C Storing: -40°C to +75°C
Weather Resistance	IP55
Ringing Tone	Shrill warble tone 80 dBA at 1 metre typical
Hook switch	Electronic / magnetic with no visible moving parts
M.T.B.F.	Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight	Up to 4 kg depending on option

Front & Bottom

Back & Top

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer Volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection Type	IP 66 as per EN60529
Operating Temperature	-30°C to +70°C
Storage Temperature	-40°C to +75°C

Tactile Keypad Vandal Resistant Telephone GSM Metallic IP Jail IP55 5

★ Robust housing, constructed of stainless steel

★ Cord with stainless steel spiral - tensile force up to 200KG

★ Imported ABS and PC composite handset - vandal resistant

★ 4 additional buttons programmable for speed-dial

★ Weather proof protection - up to IP55

★ Magnetic hook - reduce wear

Applications

JR205-FK GSM Metallic Public Telephone suitable for use in airport, hotel, bank, ATM, campus, elevator/lift, jail/prison, outside or outside building, etc.
