J&R Technology Limited
Home ProductsVandal Resistant Telephone

Rugged Keypad Vandal Resistant Telephone Robuste Cold Rolled Steel

China J&R Technology Limited certification
China J&R Technology Limited certification
I'm Online Chat Now

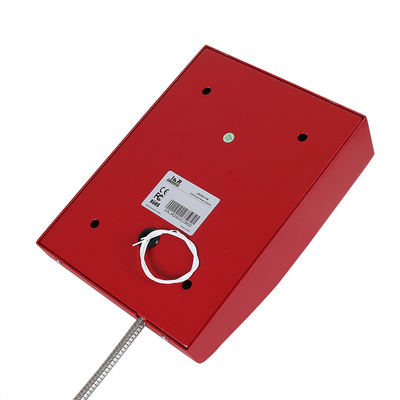

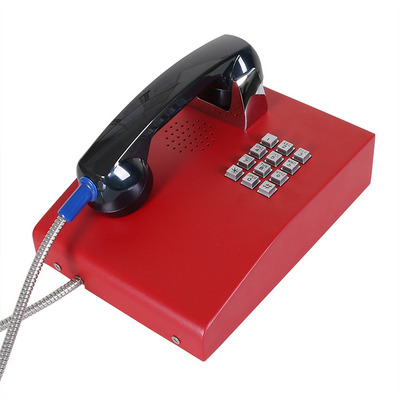

Rugged Keypad Vandal Resistant Telephone Robuste Cold Rolled Steel

Rugged Keypad Vandal Resistant Telephone Robuste Cold Rolled Steel
Rugged Keypad Vandal Resistant Telephone Robuste Cold Rolled Steel
video play

Large Image :  Rugged Keypad Vandal Resistant Telephone Robuste Cold Rolled Steel

Product Details:
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR206-FK
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$189~US$299
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets per month
Detailed Product Description
Material: Cold Rolled Steel Color: Bule, Or Optional
Warranty: 2 Years Weather Protection: IP65
Handset: ABS Material With Armored Cord Keypad: Full Rugged & Durable Keypad
Voice Control Button: Yes Vandal Resistant: Yes
High Light:

Rugged Keypad Vandal Resistant Telephone

,

Vandal Resistant Telephone Robuste

,

Cold Rolled Steel Emergency Telephone

Product Description

JR206-FK Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone



JR206-FK Robuste Telephone, Multi-function Telephone housed in cold rolled steel box so that the telephone has anti-vandal characteristics.

JR206-FK is equipped with industrial grade noise reduction handset and waterproof metal full keyboard.

The telephone supports wall mounting and desk mounting.

The color and function of the phone can be customized according to customer needs.





  Casing Material

Cold rolled steel body

  Colors RED, YELLOW, GREY
  Handset Material ABS material handset with stainless steel spiral cord
  Keypad

Weather sealed tactile digital keypad.

Chrome key and frame made of zinc alloy.

Vandal resistance.

  Temperature

Operating: -30°C to +70°C

Storing: -40°C to +75°C

  Weather Resistance IP65
  Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
  Hook switch

Electronic / magnetic with no visible moving parts

  M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
  Weight Up to 4 kg depending on option

Heavy Duty, Vandal Resistant Metal Telephones



Technical Specification

Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone





Heavy Duty, Vandal Resistant Metal Telephones

Rugged Keypad Vandal Resistant Telephone Robuste Cold Rolled Steel 2





Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
  Protection Type IP 66 as per EN60529
  Operating Temperature -30°C to +70°C
  Storage Temperature -40°C to +75°C





Features

Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone

Heavy Duty, Vandal Resistant Metal Telephones



    ★ Bellmouth orifice - improve sound quality

    ★ Zinc alloy metal full keypad - waterproof and vadal resistant

    ★ Imported ABS and PC composite handset - sturdy and durable

    ★ On wall mounting - simple installation

    ★ Weather proof protection - up to IP65

    ★ Programmable for auto-dial - convenient and quick

    ★ Magnetic hook - reduce wear and tear

    ★ CE,FCC,ROSH compliant - quality assurance

    ★ Stainless steel armored cord - tensile force up to 200KG



Vandal Resistant VoIP SIP Hot Line Panel Phone

Vandal Resistant VoIP SIP Hot Line Panel Phone

Vandal Resistant VoIP SIP Hot Line Panel Phone





Applications

Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone



JR206-FK Robuste Telephone, Multi-function Telephone suitable for use in park, roadside, bank, ATM, campus, stadiums, jail, outside or outside building, etc.



Rugged Outdoor Weatherproof Telephone





Packing & Delivery

Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone



Heavy Duty, Vandal Resistant Metal Telephones



  Unit Size 248 *185 *129 (mm)
  Carton Size 230 *200 *150 (mm)
  Packaging Materials Pearl cotton, carton
  Net Weight 2.5 KG
  Gross Weight 3.5 KG



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated
