SIP Protocol Vandal Proof Telephone Full Duplex Stainless Steel IP66

China J&R Technology Limited certification
China J&R Technology Limited certification
I'm Online Chat Now

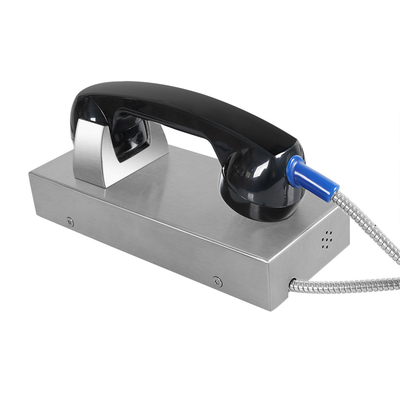

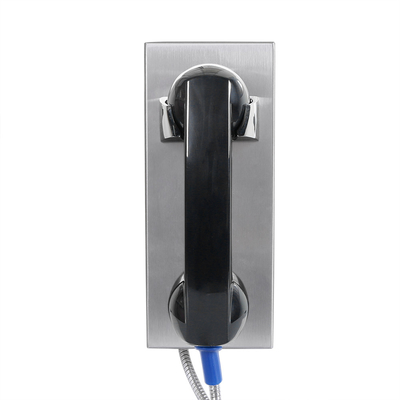

SIP Protocol Vandal Proof Telephone Full Duplex Stainless Steel IP66

SIP Protocol Vandal Proof Telephone Full Duplex Stainless Steel IP66
SIP Protocol Vandal Proof Telephone Full Duplex Stainless Steel IP66
video play

Large Image :  SIP Protocol Vandal Proof Telephone Full Duplex Stainless Steel IP66

Product Details:
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR202-CB
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days after payment
Payment Terms: L/C, T/T,paypal, Western Union
Supply Ability: 3000 sets per month
Detailed Product Description
Material: Cold Rolled Steel Or Stainless Steel Warranty: 2 Years
Weather Protection: IP55-IP65 Handset: ABS Material With Armored Cord
Size: 247 *130 *132 (mm) Weight: 3.5 KG
Version: Analogue/SIP/GSM Powered: Telephone Line Powered Or DC12V
Product Name: Full Keypad Public Emergency Vandal Resistant Prison Telephone For Bank
High Light:

SIP Protocol Vandal Proof Telephone

,

Full Duplex Vandal Proof Telephone

,

IP66 Anti Vandal Telephone

◖ Product Description ◗



JR202-CB.pdf Stainless Steel Hot Line Automatic Dial Telephone For Hospital / Jail / Airport / Atm


The Handset Telephone is designed to meet the needs of client who experience loss through vandalism. Ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.





SIP Protocol Vandal Proof Telephone Full Duplex Stainless Steel IP66 0





Casing Material Cold rolled steel body
Colors RED, YELLOW, GREY
Handset Material ABS material handset with stainless steel spiral cord
Keypad No Keypad
Weather Resistance

IP55-IP65

Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
Hook Switch Electronic / magnetic with no visible moving parts
M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight Up to 4 kg depending on option









◖ Technical Specification ◗



Stainless Steel Hot Line Automatic Dial Telephone For Hospital / Jail / Airport / Atm




    Analogue Version
    Power Supply From the analogue telephone network
    Supply Voltage 24VDC to 65 VDC
    Supply Current 20 mA DC to 100mA DC
    Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
    Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



    SIP Version
    Power Supply PoE or 12VDC
    Power Consumption -Idle:1.5W / -Active:1.8W
    SIP Protocol SIP 2.0 (RFC3261)
    Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
    Communication Type Full duplex
    Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



    Ambient conditions
    Protection Type IP66 as per EN60529
    Operating Temperature -25°C to +70°C
    Storage Temperature -25°C to +85°C









◖ Features ◗

Stainless Steel Hot Line Automatic Dial Telephone For Hospital / Jail / Airport / Atm


  • - Standard Analogue or SIP phone
  • - Robust housing, Adopt High quality 304 stainless steel, durable, anti-violence damage
  • - Weather proof protection IP54-IP65
  • - Vandal resistant handset and armored cord
  • - Programmable for auto-dial
  • - Can be programmed remotely by tone phone or locally via keypad
  •
  • - Non-volatile memory
  • - Wall mounting, simple installation
  • - Inductive coupler fitted as standard for hard of hearing
  • - Phone line powered (Analog)
  • - External Power supply or PoE (SIP phone)
  • - RJ45 connector for SIP phone
  • - CE, FCC, ISO9001, RoHS compliant







◖ Packing & Delivery ◗



Stainless Steel Hot Line Automatic Dial Telephone For Hospital / Jail / Airport / Atm


SIP Protocol Vandal Proof Telephone Full Duplex Stainless Steel IP66 1

Unit Size 240 *100 *117(mm)
Carton Size 340 *235 *165 (mm)
Packaging Materials Pearl cotton, carton
Net Weight 3.5 KG
Gross Weight 4 KG









◖ Our Services ◗



Stainless Steel Hot Line Automatic Dial Telephone For Hospital / Jail / Airport / Atm


SIP Protocol Vandal Proof Telephone Full Duplex Stainless Steel IP66 2



    ◑ ODM & OEM products or solutions



    ◑ Sample order is greatly welcomed



    ◑ We will reply your inquiry within 12 hours



    ◑ Update the productive process and show the packing details



    ◑ After delivered the goods, we will track the products for you once every two days, until you get the products.



    ◑ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
