IP65 Steel Waterproof Emergency Telephone SIP2.0 For Campus Landline

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001:2015
Model Number: JR315-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Detail Information
Phone Material: Stainless Steel Pillar MaterialWeather Resistant: IP65 Cold Rolled Steel
Power Supply: PoE Size: 1800*300 *90 (mm)
Net Weight: 45 KG Warranty: 2 Years
Weather Resistant: IP65 Product Name: Help Line Emergency Telephone,metro Service Phone,emergency Help Point With Camera
High Light:

IP65 Steel Waterproof Emergency Telephone


Campus Landline Waterproof Emergency Telephone


SIP2.0 Vandal Resistant Phone

Product Description

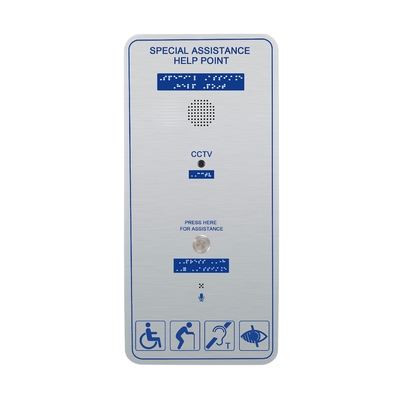

Vandal Resistant Airport / Public Security Emergency Telephone With Camera


JR315-SC Multifunction Emergency Telephone contains two push buttons, braille and loop induction system, which is convenient for wheelchair users, visually impaired or hearing impaired people. JR315-SC with a camera, real-time video communication, so that emergency rescue can be more effective. Besides, JR315-SC is made of stainless steel panel, the shell is rugged and durable, and the appearance is generous and concise. This telephone can also be used in public places such as the station square, ticket lobby, waiting room and platform (in a railway station). When people need help or consultation, they can contact the relevant personnel by pushing the button, so that the help becomes convenient, fast, timely and effective.






This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.


Main Features:


- SOS-Video Pillar

- Standard SIP Phone

- Finished in contrasting colours, with a raised 32mm button. Raised text, Induction Loop facility for hearing impaired


- Hands-free loudspeaking communications for any public area,with Media converter

- Dual purpose design for surface or pillar mounting, simple installation

- Robust/Weather resistant: IP65


- Dual button autodial for emergency call

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- CE, FCC, RoHS, ISO9001 compliant


Camera Features of Intrinsically Safe Telephone


Video Codec: H.264 HP,MPEG4 SP,MJPEG

Resolution Ratio: 1,280*720@20 fps

Sensitivity: 0.5 Lux,1.0V/lux-sec (550nm)

Viewing angle: 135'(H),109'(V)

Video Compression Output: 16Kbps - 2Mbps

FPS: 10-30fps

D-Range: 71dB (SNRMAX = 42.3dB)


Technical Specifications


SIP Version
Power Supply   PoE or 12VDC
Power Consumption   -Idle:1.5W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)


Ambient conditions
Protection type   IP66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C
Help Point Unit Size   650 *300 *60 (mm)
Pillar Size   1800 (H) *300 (W) ( mm )
Packaging materials   pearl cotton, carton
Net weight   7 KG
Gross weight   8 KG
