Roadside VoIP Emergency Telephone Pillar Impact Resistant Vandal Proof SOS

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, ISO9001

Model Number: JR-TP-03

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Reconsideration

Packaging Details: pearl cotton, carton

Delivery Time: 2-5 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

Roadside VoIP Emergency Telephone Pillar

,

Impact Resistant Emergency Telephone Pillar

,

Vandal Proof SOS Hands Free Telephone

Pillar Material:
Cold Rolled Steel
Phone Material:
Aluminum Alloy
Warranty:
2 Years
Weather Protection:
IP65
Customized:
Support Customized Logo
Vandal Resistant:
Yes
Unit Size:
1500 X 450 X 350 Mm
Weight:
25 KG
Color:
Black, Orange, Red, Yellow
Pillar Material:
Cold Rolled Steel
Phone Material:
Aluminum Alloy
Warranty:
2 Years
Weather Protection:
IP65
Customized:
Support Customized Logo
Vandal Resistant:
Yes
Unit Size:
1500 X 450 X 350 Mm
Weight:
25 KG
Color:
Black, Orange, Red, Yellow
Product Description





Roadside VoIP Emergency Telephone Pillar,Impact Resistant Vandal Proof SOS Hands Free Telephone

This JR101-FK is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing

complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Extremely easy to install. The cable entrance is on the bottom of the phone to prevent from artificial damage, while the

button is weather and vandal resistant.

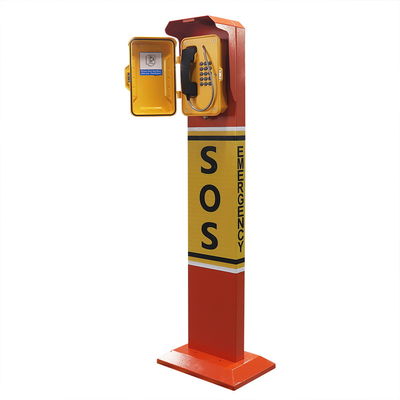

Roadside VoIP Emergency Telephone Pillar Impact Resistant Vandal Proof SOS 0



  • - Standard Analogue phone, or SIP phone, or GSM/3G phone
  • - Aluminum alloy die-casting body
  • - Vandal resistant handset and armored cord
  • - Weather proof protection to IP67
  • - Pillar mounting, simple installation
  • - Phone line powered (Analogue)
  • - External power supply or PoE (SIP-VoIP)
  • - RJ45 port for SIP phone
  • - Inductive coupler fitted as standard for hard of hearing
  • - CE, FCC, ISO9001, RoHS compliant





Roadside VoIP Emergency Telephone Pillar,Impact Resistant Vandal Proof SOS Hands Free Telephone



Specification
Analogue Version
Power Supply
From the analogue telephone network
Supply Voltage
24 VDC to 65 VDC
Supply Current
20 mA DC to 100 mA DC
Ringer Volume
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method
DTMF mode in accordance with ITU-T recommendation Q.23
SIP Version
Power Supply
PoE or 12V DC
Power Consumption
-Idle:1.5W
-Active:1.8W
SIP Protocol
SIP 2.0 (RFC3261)
Support Codec
G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type
Full duplex
Ringer volume
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection type
IP 66 as per EN60529
Operating temperature
-35°C to +70°C
Storage temperature
-45°C to +85°C

Application

Roadside VoIP Emergency Telephone Pillar,Impact Resistant Vandal Proof SOS Hands Free Telephone



They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside
buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.

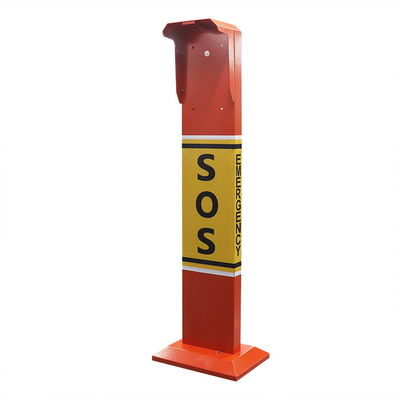

Roadside VoIP Emergency Telephone Pillar Impact Resistant Vandal Proof SOS 1

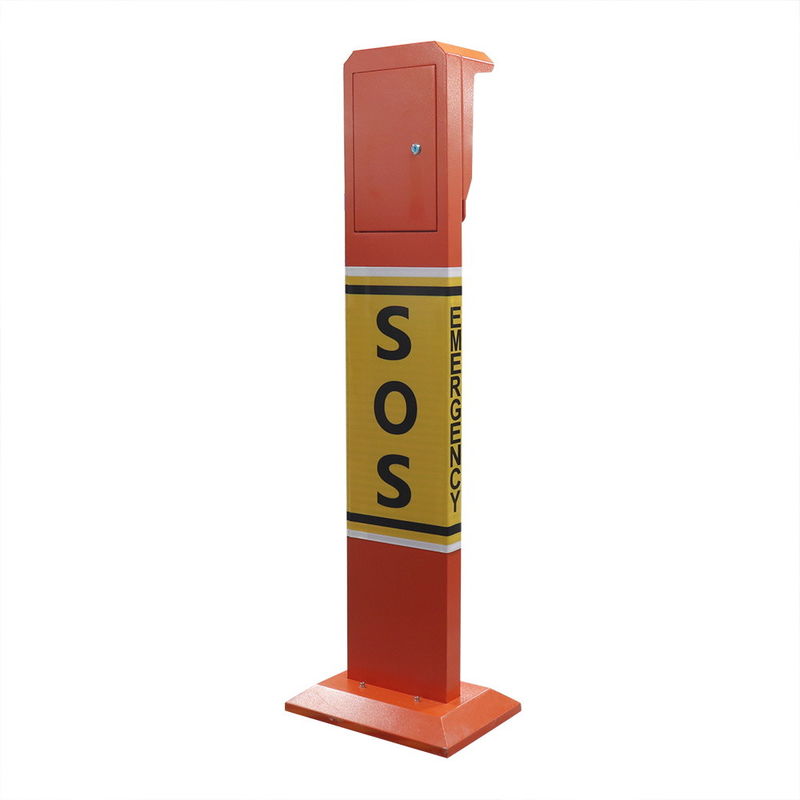

Roadside VoIP Emergency Telephone Pillar Impact Resistant Vandal Proof SOS 2Roadside VoIP Emergency Telephone Pillar Impact Resistant Vandal Proof SOS 3
