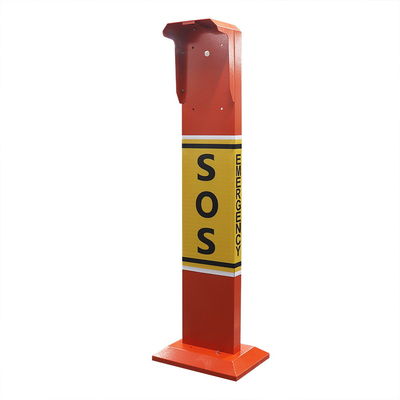

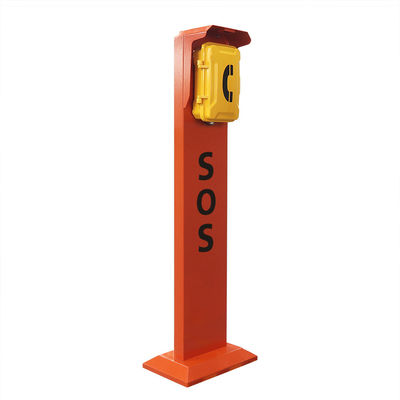

Pillar Mounting Outdoor SOS Hands Free Telephone Impact Resistant Vandal Proof

Pillar Mounting Outdoor SOS Hands Free Telephone Impact Resistant Vandal Proof

Brand Name:	J&R
Model Number:	JR-TP-03
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Pillar Material:

Cold Rolled Steel

Phone Material:

Aluminum Alloy

Warranty:

2 Years

Weather Protection:

IP65

Customized:

Support Customized Logo

Vandal Resistant:

Yes

Unit Size:

1500 X 450 X 350 Mm

Weight:

25 KG

Color:

Black, Orange, Red, Yellow

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

Outdoor SOS Hands Free Telephone

Pillar Mounting Hands Free Telephone

Impact Resistant Emergency Phone Pillar

Product Description

_{^{This JR101-FK is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing}}

_{^{complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

Extremely easy to install. The cable entrance is on the bottom of the phone to prevent from artificial damage, while the}}

_{^{button is weather and vandal resistant.}}

_{^{- Standard Analogue phone, or SIP phone, or GSM/3G phone}}
_{^{- Aluminum alloy die-casting body}}
_{^{- Vandal resistant handset and armored cord}}
_{^{- Weather proof protection to IP67}}
_{^{- Pillar mounting, simple installation}}
_{^{- Phone line powered (Analogue)}}
_{^{- External power supply or PoE (SIP-VoIP)}}
_{^{- RJ45 port for SIP phone}}
_{^{- Inductive coupler fitted as standard for hard of hearing}}
_{^{- CE, FCC, ISO9001, RoHS compliant}}

Vandal-proof Outdoor SOS Hands free Telephone,Impact Resistant Emergency Phone Pillar

Specification

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-35°C to +70°C
Storage temperature	-45°C to +85°C


Application
Vandal-proof Outdoor SOS Hands free Telephone,Impact Resistant Emergency Phone Pillar

They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside

buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.

Packaging:

Phone size: 2400 *436 *306 (mm)

Packaging materials: pearl cotton, wooden box

Gross weight: 25 KG

Net weight: 30 KG
