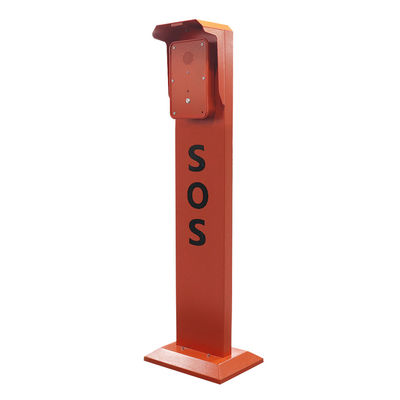

Name: IP65 Roadside Pillar VoIP Emergency Telephone PSTN Vandal Proof Telephone
Brand: J&R
SKU: JR-TP-03
Rating: 4.8 (119 reviews)

Detail Information

Pillar Material:	Cold Rolled Steel	Phone Material:	Aluminum Alloy
Warranty:	2 Years	Weather Protection:	IP65
Customized:	Support Customized Logo	Vandal Resistant:	Yes
Unit Size:	1500 X 450 X 350 Mm	Weight:	25 KG
Color:	Black, Orange, Red, Yellow
High Light:	Roadside Pillar VoIP Emergency Telephone , IP65 Weatherproof VoIP Emergency Telephone , PSTN Vandal Proof Telephone

Product Description

Application

Roadside VoIP Emergency Telephone Pillar, Weatherproof & Vandal-proof PSTN Telephone System

They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside

buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.

MAIN FEATURES

Main Features of the emergency telepone

_{^{- Standard Analog phone, or SIP/VoIP phone}}
_{^{- Aluminum alloy die-casting body, cold rolled steel for pillar}}
_{^{- Weather proof protection to IP66-IP67}}
_{^{- Pillar mounting, Simple installation}}
_{^{- Inductive coupler fitted as standard for hard of hearing}}
_{^{- Phone line powered (Analogue)}}
_{^{- External power supply or PoE (SIP-VoIP)}}
_{^{- RJ45 port for SIP phone}}
_{^{- CE, FCC, RoHS, ISO9001 compliant}}

Main Feature of the Pillar

_{^{- Painted for outdoor use}}
_{^{- Made of galvanized steel}}
_{^{- Sleek and harmonious design free of sharp edges}}
_{^{- Prepared for the containment of auxiliary circuits}}
_{^{- Weight: 30 KG}}
_{^{- Dimensions: 1500*436*306 mm}}
_{^{- Fixing: On floor}}
_{^{- Color: Red ( Yellow, Orange, Blue, Black, or optional)}}
_{^{- Support to print Customized Logo on the phone door and pillar}}

Roadside VoIP Emergency Telephone Pillar, Weatherproof & Vandal-proof PSTN Telephone System

Specification

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-35°C to +70°C
Storage temperature	-45°C to +85°C


Packaging:

Phone size: 2400 *436 *306 (mm)

Packaging materials: pearl cotton, wooden box

Gross weight: 25 KG

Net weight: 30 KG

Tag:

Place of Origin:	Shenzhen, China
Brand Name:	J&R
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	JR-TP-03

Minimum Order Quantity:	1 set
Price:	Reconsideration
Packaging Details:	pearl cotton, carton
Delivery Time:	2-5 working days
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month
