Pillar Support Weatherproof Emergency Telephone Aluminum Alloy FCC IP65

Pillar Support Weatherproof Emergency Telephone Aluminum Alloy FCC IP65

Brand Name:	J&R
Model Number:	JR-TP-03
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Pillar Material:

Cold Rolled Steel

Phone Material:

Aluminum Alloy

Warranty:

2 Years

Weather Protection:

IP65

Customized:

Support Customized Logo

Vandal Resistant:

Yes

Unit Size:

1500 X 450 X 350 Mm

Weight:

25 KG

Color:

Black, Orange, Red, Yellow

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

Pillar Support Weatherproof Emergency Telephone

Aluminum Alloy Weatherproof Emergency Telephone

FCC IP65 Outdoor Emergency Phone

Product Description

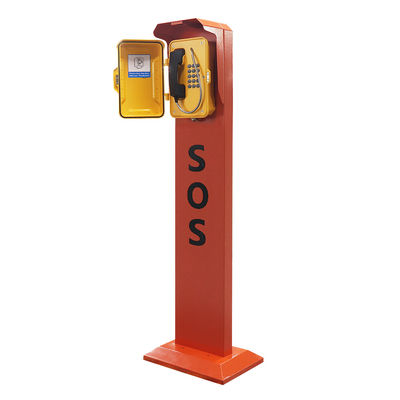

Outdoor Weatherproof Emergency Telephone Pillar Support Customized Logo and Color, Emergency Call Systems

This JR101-FK is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete
protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Extremely easy to install. The cable entrance is on the bottom of the phone to prevent from artificial damage, while the button
is weather and vandal resistant.

MAIN FEATURES

Main Features of the emergency telepone

_{^{- Standard Analog phone, or SIP/VoIP phone}}
_{^{- Aluminum alloy die-casting body, cold rolled steel for pillar}}
_{^{- Weather proof protection to IP66-IP67}}
_{^{- Pillar mounting, Simple installation}}
_{^{- Inductive coupler fitted as standard for hard of hearing}}
_{^{- Phone line powered (Analogue)}}
_{^{- External power supply or PoE (SIP-VoIP)}}
_{^{- RJ45 port for SIP phone}}
_{^{- CE, FCC, RoHS, ISO9001 compliant}}

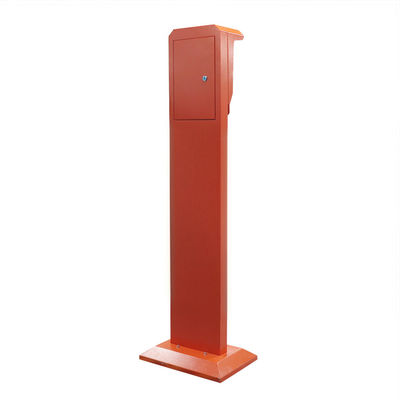

Main Feature of the Pillar

_{^{- Painted for outdoor use}}
_{^{- Made of galvanized steel}}
_{^{- Sleek and harmonious design free of sharp edges}}
_{^{- Prepared for the containment of auxiliary circuits}}
_{^{- Weight: 30 KG}}
_{^{- Dimensions: 1500*436*306 mm}}
_{^{- Fixing: On floor}}
_{^{- Color: Red ( Yellow, Orange, Blue, Black, or optional)}}
_{^{- Support to print Customized Logo on the phone door and pillar}}

Outdoor Weatherproof Emergency Telephone Pillar Support Customized Logo and Color, Emergency Call Systems

Specification

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-35°C to +70°C
Storage temperature	-45°C to +85°C

Application

Outdoor Weatherproof Emergency Telephone Pillar Support Customized Logo and Color, Emergency Call Systems

They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside

buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.

Outdoor Weatherproof Emergency Telephone Pillar Support Customized Logo and Color, Emergency Call Systems application

Packing & Delivery

J&R To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packaging:

Phone size: 2400 *436 *306 (mm)

Packaging materials: pearl cotton, wooden box

Gross weight: 25 KG

Net weight: 30 KG

Pillar Support Weatherproof Emergency Telephone Aluminum Alloy FCC IP65 4

Pillar Support Weatherproof Emergency Telephone Aluminum Alloy FCC IP65 5
