3G GSM Vandal Resistant Telephone Rugged Handset PoE SIP2.0 With One Button

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR210-1B
Minimum Order Quantity: 1 Piece
Price: US$249-US$359
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Size: 300*180*161(mm) Color: Red Or Customized
Material: Cold Rolled Steel Function: Communication
Installation: Wall Mounting Ringer Volume: 90~95dB(A) At A Distance Of 1 M
Temperature: Operating: -30°C To +65°C Ingress Protection Rating: IP54-IP65
Warranty: 2 Years Net Weight: 4 Kg
High Light:

3G GSM Vandal Resistant Telephone

,

One Button Vandal Resistant Telephone

,

PoE SIP2.0 Anti Vandal Telephone


Product Description

Product Description

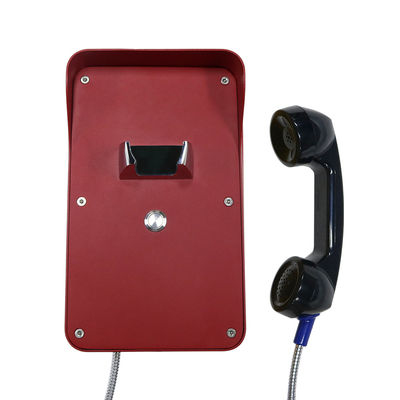

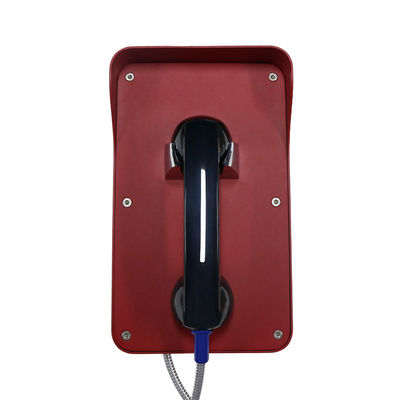

JR210-1B  Red Rugged Handset 3G/GSM Telephone with One Button for Emergency





This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.



3G GSM Vandal Resistant Telephone Rugged Handset PoE SIP2.0  With One Button 0







Analogue Version
   Power Supply From the analogue telephone network
   Supply Voltage 24 VDC to 65 VDC
   Supply Current 20 mA DC to 100 mA DC
   Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
   Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
   Power Supply PoE or 12VDC
   Power Consumption -Idle:1.5W
-Active:1.8W
   SIP Protocol SIP2.0 (RFC3261)
   Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
   Communication Type Full duplex
   Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
   Protection Type IP 66 as per EN60529
   Operating Temperature -30°C to +70°C
   Storage Temperature -40°C to +75°C







Features

Red Rugged Handset 3G/GSM Telephone with One Button for Emergency

3G GSM Vandal Resistant Telephone Rugged Handset PoE SIP2.0  With One Button 1



   ★ Robust housing, constructed of stainless steel or cold-rolled steel

   ★ Vandal resistant handset and armored cord

   ★ Surface mounting, simple installation

   ★ Easy to spot - bright color

   ★ Ingress protection rating - up to IP65

   ★ Phone line powered for Analog phone

3G GSM Vandal Resistant Telephone Rugged Handset PoE SIP2.0  With One Button 2

Unit Size 204 *339 *196 (mm)
Carton Size 200 *300 *440 (mm)
Packaging Materials Pearl cotton, carton
Net Weight 5 KG
Gross Weight 6 KG
