Weatherproof Highway Emergency SOS Hotline Telephone IP54 Steel Full Duplex

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR210-1B
Minimum Order Quantity: 1 Piece
Price: US$249-US$359
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Size: 300*180*161(mm) Color: Red Or Customized
Material: Cold Rolled Steel Function: Communication
Installation: Wall Mounting Ringer Volume: 90~95dB(A) At A Distance Of 1 M
Temperature: Operating: -30°C To +65°C Ingress Protection Rating: IP54-IP65
Warranty: 2 Years Net Weight: 4 Kg
High Light:

Highway Emergency SOS Hotline Telephone

,

Weatherproof SOS Hotline Telephone

,

IP54 Steel Weather Resistant Telephone


Product Description

Product Description

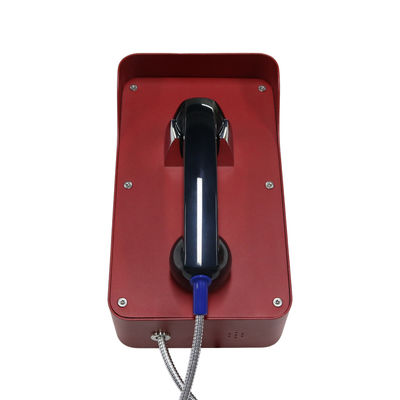

JR210-1B  Weatherproof Highway Emergency Public SOS Hotline Telephone









Handset Telephone,One button for speed dial,Cold-rolled steel body,Red color(other colour on demand),

Unit size:300*180*161(mm)

Housed in a anti-vandal cold-rolled steel enclosure,wall-mounting

Weatherproof Highway Emergency SOS Hotline Telephone IP54 Steel Full Duplex 0





Analogue Version
   Power Supply From the analogue telephone network
   Supply Voltage 24 VDC to 65 VDC
   Supply Current 20 mA DC to 100 mA DC
   Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
   Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
   Power Supply PoE or 12V DC
   Power Consumption -Idle:1.5W
-Active:1.8W
   SIP Protocol SIP 2.0 (RFC3261)
   Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
   Communication Type Full duplex
   Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
   Protection Type IP 66 as per EN60529
   Operating Temperature -30°C to +70°C
   Storage Temperature -40°C to +75°C







Features

Weatherproof Highway Emergency Public SOS Hotline Telephone





   ★ Robust housing, constructed of stainless steel or cold-rolled steel

   ★ Vandal resistant handset and armored cord

   ★ Surface mounting, simple installation

   ★ Easy to spot - bright color

   ★ Ingress protection rating - up to IP65

   ★ Phone line powered for Analog phone







Applications

Weatherproof Highway Emergency Public SOS Hotline Telephone





This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.



Weatherproof Highway Emergency SOS Hotline Telephone IP54 Steel Full Duplex 1







Packing

Weatherproof Highway Emergency Public SOS Hotline Telephone



Heavy Duty, Vandal Resistant Metal Telephones



Unit Size 204 *339 *196 (mm)
Carton Size 200 *300 *440 (mm)
Packaging Materials Pearl cotton, carton
Net Weight 5 KG
Gross Weight 6 KG
