Home ProductsVandal Resistant Telephone

65VDC SIP2.0 Auto Dial Emergency Phone ISO9001 With Vandal Proof Handset

China J&R Technology Limited certification
China J&R Technology Limited certification
I'm Online Chat Now

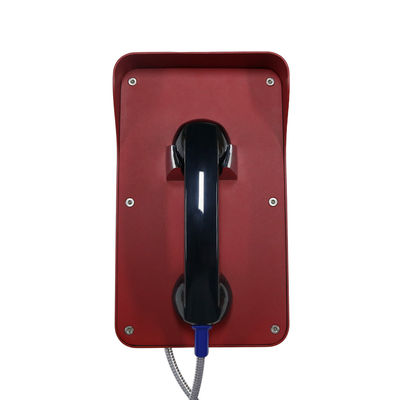

65VDC SIP2.0 Auto Dial Emergency Phone ISO9001 With Vandal Proof Handset

65VDC SIP2.0 Auto Dial Emergency Phone ISO9001 With Vandal Proof Handset
65VDC SIP2.0 Auto Dial Emergency Phone ISO9001 With Vandal Proof Handset
video play

Large Image :  65VDC SIP2.0 Auto Dial Emergency Phone ISO9001 With Vandal Proof Handset

Product Details:
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR210-SC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: US$249-US$359
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detailed Product Description
Size: 300*180*161(mm) Color: Red Or Customized
Material: Cold Rolled Steel Function: Communication
Installation: Wall Mounting Ringer Volume: 90~95dB(A) At A Distance Of 1 M
Temperature: Operating: -30°C To +65°C Ingress Protection Rating: IP54-IP65
Warranty: 2 Years Net Weight: 4 Kg
High Light:

SIP2.0 Auto Dial Emergency Phone

,

65VDC Auto Dial Emergency Phone

,

ISO9001 PoE Outdoor Emergency Phone

Product Description

JR210-1B  RED Outdoor emergency swimming pool phone with vandal-proof handset









Handset Telephone,One button for speed dial,Cold-rolled steel body,Red color(other colour on demand),

Unit size:300*180*161(mm)

Housed in a anti-vandal cold-rolled steel enclosure,wall-mounting

Heavy Duty, Vandal Resistant Metal Telephones





Analogue Version
   Power Supply From the analogue telephone network
   Supply Voltage 24 VDC to 65 VDC
   Supply Current 20 mA DC to 100mA DC
   Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
   Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
   Power Supply PoE or 12VDC
   Power Consumption -Idle:1.5W
-Active:1.8W
   SIP Protocol SIP 2.0 (RFC3261)
   Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
   Communication Type Full duplex
   Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
   Protection Type IP66 as per EN60529
   Operating Temperature -30°C to +70°C
   Storage Temperature -40°C to +75°C







Features

JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset





   ★ Robust housing, constructed of stainless steel or cold-rolled steel

   ★ Vandal resistant handset and armored cord

   ★ Surface mounting, simple installation

   ★ Easy to spot - bright color

   ★ Ingress protection rating - up to IP65

   ★ Phone line powered for Analog phone







Applications

JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset





JR210-SC Hotline Telephone for Taxi Server more commonly used in parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.



Rugged Outdoor Weatherproof Telephone







Customised Accessories

JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset




Heavy Duty, Vandal Resistant Metal Telephones



J&R provide LOGO printing and accessories customization services.

We will also provide suitable solutions according to the needs of customers.



HOOK FUNCTIONMagnetic hooks for choice

KEYBOARD SHAPE: Round buttons and square buttons for choice

INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

HADSET CORDBlack curly handset cord or stainless steel spiral cord

If you have any custom requirements, please feel free to contact us.
