IP67 Weatherproof VoIP Telephone Broadcasting With Flashing Lamp

Name: IP67 Weatherproof VoIP Telephone Broadcasting With Flashing Lamp
Brand: J&R Technology Limited
SKU: JR101-FK-BS
Price: 564.00 USD
Availability: InStock

Brand Name:	J&R
Model Number:	JR101-FK-BS
MOQ:	1 Piece
Price:	US$499 - US$629
Payment Terms:	L/C, T/T, Western Union，PayPal
Supply Ability:	10000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, IP67, ISO9001:2015

Color:

Yellow, Blue, Red Or Customization

Material:

Die-casting Aluminum Alloy

Version:

Analogue, SIP/VoIP, GSM/3G/4G

Installation:

Wall Mounting Or Pillar Mounting Or Column Mounting

Powered:

POE Or DC12V Powered Or Telephone Line Powered

Warranty:

2years

Ringing Volume:

75-90db

Protection Type:

IP65-IP67

Application:

Metro, Railway, Highway Side,Tunnel,Roadside Etc

Packaging Details:

J&R standard packing ,pearl cotton, carton

Supply Ability:

10000pcs per month

Highlight:

Flashing Lamp Weatherproof VoIP Telephone

WCDMA IP67 Weatherproof VoIP Telephone

Broadcasting Mining SIP Phone

Product Description

﹄Product Description﹃

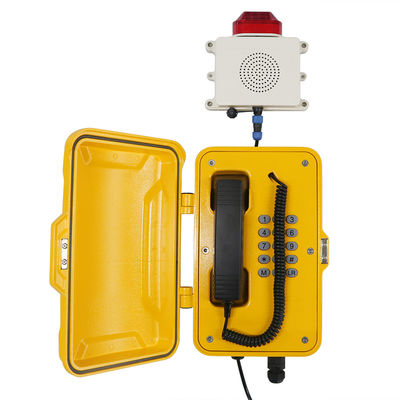

JR101-FK-BS IP67 Weatherproof VoIP Telephone Broadcasting With Flashing Lamp

This JR101-FK-BS is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

Extremely easy to install. The cable entrance is on the bottom of the phone to prevent from artificial damage, while the button is weather and vandal resistant.

IP67 Weatherproof VoIP Telephone Broadcasting With Flashing Lamp 0

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m
Ringer Volume	- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply	12VDC
Power Consumption	-Idle:0.3W -Active: 1.5W
Communication Type	Full duplex
Ringer volume	90~95dB(A) at a distance of 1 m
Program Method	Remote programming by SMS
Frequency	A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-25°C to +70°C
Storage temperature	-25°C to +85°C

﹄Features﹃

IP67 Weatherproof VoIP Telephone Broadcasting With Flashing Lamp

IP67 Weatherproof VoIP Telephone Broadcasting With Flashing Lamp 1

∫ Standard Analogue phone,or SIP phone,or GSM/3G phone

∫ Vandal resistant handset and armored cord

∫ Weather proof protection to IP67

∫ Full keypad with memory, 0-9 buttons can be programmed as speed dial button.

∫ Wall mounting, simple installation

∫ Very easy for operation, maintenance and management

﹄Packing & Delivery﹃

IP67 Weatherproof VoIP Telephone Broadcasting With Flashing Lamp

IP67 Weatherproof VoIP Telephone Broadcasting With Flashing Lamp 2

Unit size	204 334 126(mm)
Carton size	200300440( mm )
Packaging materials	pearl cotton, carton
Gross weight	7 KG
Net weight	6 KG
