Place of Origin: | Shenzhen,Guangdong,China |
---|---|
Brand Name: | J&R |
Certification: | CE, FCC, RoHS, ATEX |
Model Number: | JREX101 |
Minimum Order Quantity: | 1 Piece |
Price: | US $529 ~ US $629 (negotiable) |
Packaging Details: | J&R standard packing ,pearl cotton, carton |
Delivery Time: | 3-7 working days after payment |
Payment Terms: | L/C, T/T, Western Union,Paypal |
Supply Ability: | 10000 pcs per month |
Color: | Orange,Yellow,Red Or Customized | Version: | Analog, SIP,IP,VoIP |
---|---|---|---|
Installation: | Wall Mounting Or Pillar Mounting | Warranty: | 2 Years |
Net Weight: | 7 KG | Gross Weight: | 8 KG |
Ingress Protection: | IP67 | Applications: | Mine,Oil Rigs,Tunnel,Petrol Station,metro Etc |
Highlight: | Hazardous Area Industrial Analog Telephone,VoIP Industrial Analog Telephone,Pillar Mounting Mine Weatherproof Telephone |
◖Product Description◗

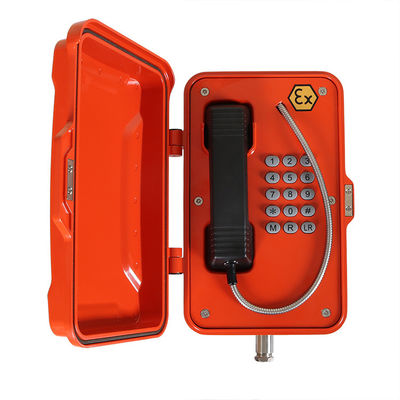

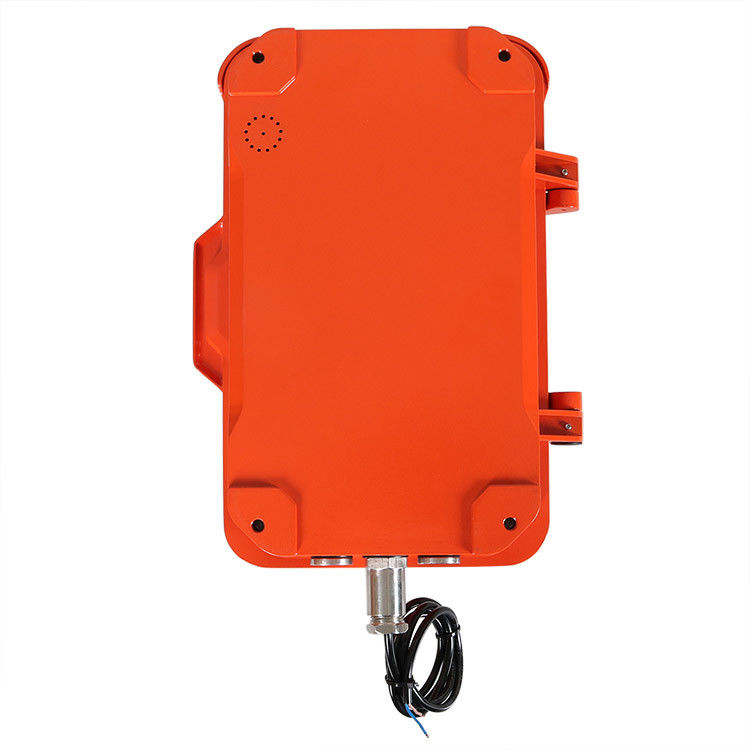

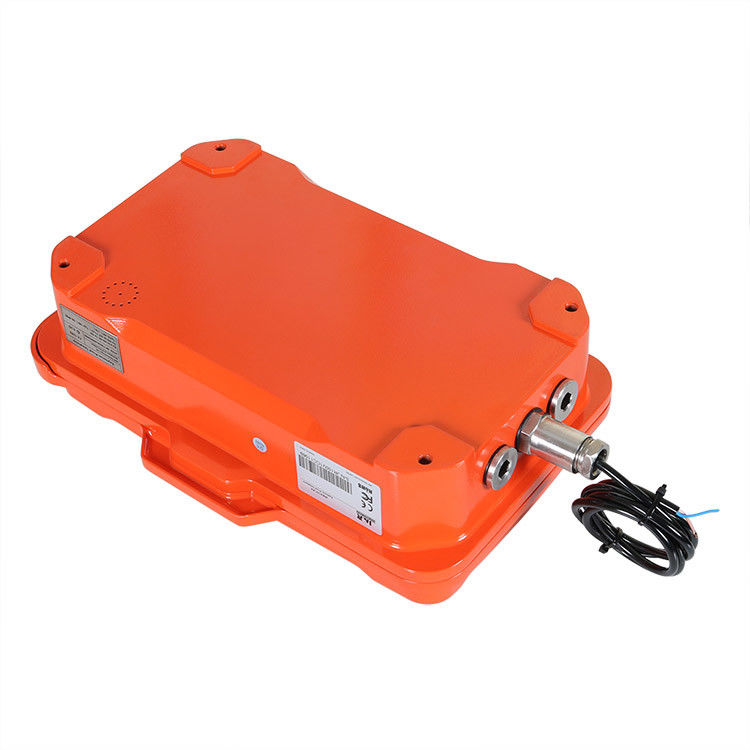

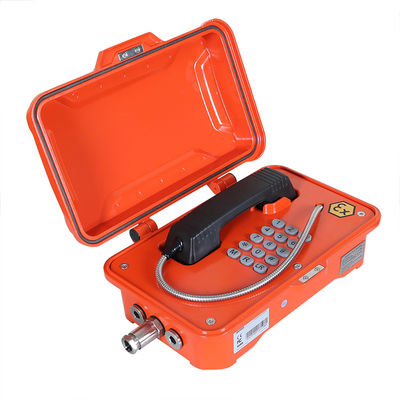

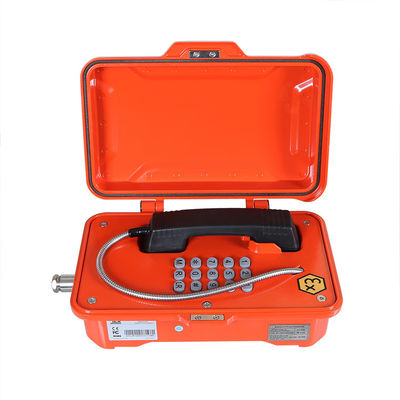

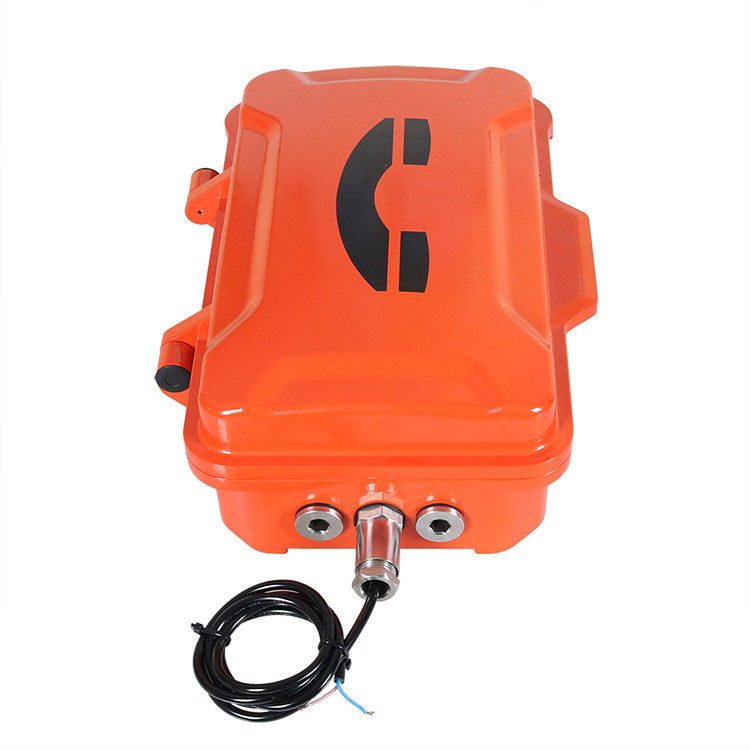

JREX101-FK Hazardous area indoor industrial analog telephone Mine Telephone ex-proof telephone
Casing Material |
Die cast aluminium, epoxy powder coated |
Handset Material |
Cycoloy with stainless steel spiral cord |
Protection Type |
IP66-IP67 |
Hookswitch | Electronic / magnetic with no visible moving parts |
Explosion Protection |
II 2G Ex e ib [ib] mb IIC T4 Gb |
Ringing Tone |
Built-in External Ringer that provides penetrating calling signal (85 dbA at 1meter) |
M.T.B.F. | excess of 50,000 hours using |
Weight | Up to 8 kg depending on option |
Keypad |
Weather resistant full Keypad, No.of keys(TOTAL15KEYS):0-9,*,#,Redial,Mute,Last Number Redial |
◖Technical Specification◗
Hazardous area indoor industrial analog telephone Mine Telephone ex-proof telephone
Analogue Version | |
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version | |
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W -Active:1.8W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
Ambient conditions | |
Protection type | IP 66 as per EN60529 |
Operating temperature | -25°C to +70°C |
Storage temperature |
-25°C to +85°C |
◖Features◗
Hazardous area indoor industrial analog telephone Mine Telephone ex-proof telephone
★ Zone classification: Zone 1& Zone 2
★ Corrosion resistant aluminum alloy die casting housing
★ Certificated for use in Hazardous areas of Gas Group IIB/IIA
★ Fully configurable through any internet browser or the on-board display
★ Available in four colors, with NPT conduit entries and Type 3 / IP67 environmental ratings
◖Packing & Delivery◗
Hazardous area indoor industrial analog telephone Mine Telephone ex-proof telephone
Port | Shenzhen, Guangdong, China | ||||
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1-10 | 11-50 | 51-200 | >200 |
Est.Time(Days) | 2 | 10 | 20 | To be negotiated |
◖Our Services◗
Hazardous area indoor industrial analog telephone Mine Telephone ex-proof telephone
◉ ODM & OEM products or solutions
◉ Sample order is greatly welcomed
◉ We will reply your inquiry within 12 hours
◉ Update the productive process and show the packing details
◉ After delivered the goods, we will track the products for you once every two days, until you get the products.
◉ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
◖Our Company◗
Hazardous area indoor industrial analog telephone Mine Telephone ex-proof telephone
J&R is China based design and manufacturer of rugged communications equipment.
Our telephones and systems work, and last, in environments where regular products wouldn’t.
(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company
and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
◖FAQ◗
Hazardous area indoor industrial analog telephone Mine Telephone ex-proof telephone
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What do IP Ratings mean?
A: IP Ratings apply to enclosures such as our telephone cabinets. They indicate how the enclosure protects against water and dust ingress, the higher the better.
Q: How to proceed an order ?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days
2.Send by Air: Arrive at destination Airport fast then pick it up by yourself
3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
