| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR330-SC-C |
| Minimum Order Quantity: | 1 set |
| Price: | US$389~US$499 |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Color: | Yellow , Red |
|---|---|---|---|
| Warranty: | 2 Years | Weather Protection: | IP65 |
| Button: | 1 Button | Handsfree: | Yes |
| Vandal Resistant: | Yes | Unit Size: | 1500 *280*200 (mm) |
| High Light: | SIP 2.0 SOS Emergency Telephone,SMS SOS Emergency Telephone,1 Button Roadside Emergency Telephone |
||
☎ Product Description

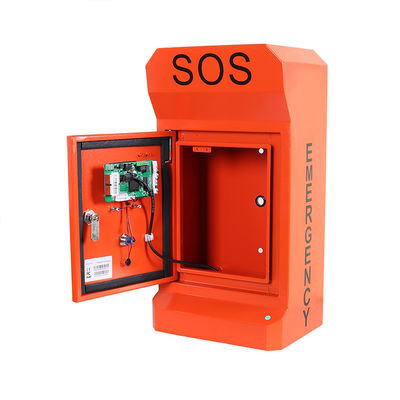

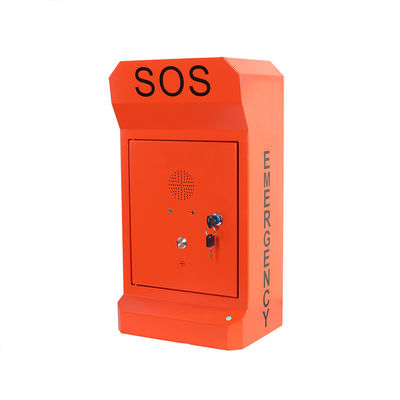

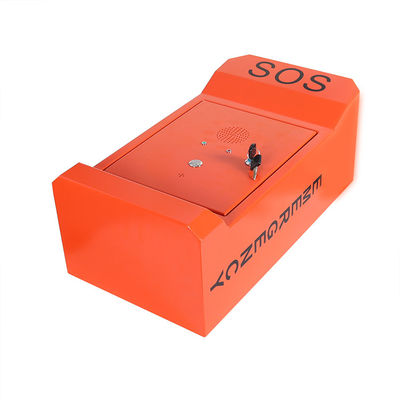

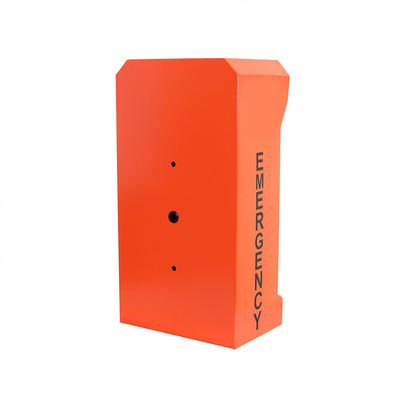

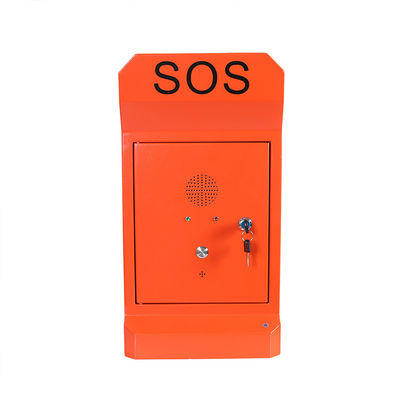

JR330-SC Emergency Telephone,SOS phone with lock key for Roadside,Highway,Subway
⇜~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~⇝
The Hands Free Telephone is designed to meet the needs of client who experience loss through vandalism. Ideal for Highway,parking lots, Roadside, railway/metro platforms, hospitals, police stations, outside building etc.
Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

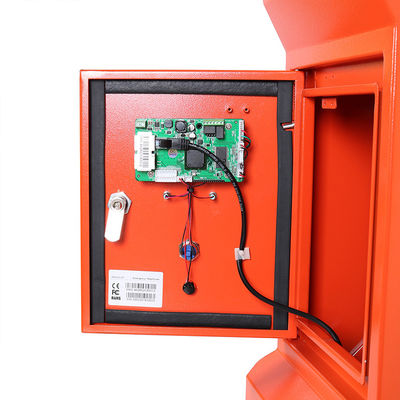

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad or Button is weather and vandal resistant.
| Relative humidity high | 93% R.H at 40°C (non condensing) |
| Casing Material | Heavy Duty aluminium (salt & corrosion resistant) |
| Illuminated LCD Display | for status notifications and instructions |
| Flashing Light | ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc |
| Excellent Sound Quality | STI approved to 0.9 (Excellent Sound) |
| Remote Management | Available with remote management software,to simplify installation and cut maintenance costs. |
☎ Technical Specification
Emergency Telephone,SOS phone with lock key for Roadside,Highway,Subway
⇜~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~⇝
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m |
| - 110dB(A) at a distance of 1 m (for external horn speaker) | |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption |
-Idle:0.3W -Active: 1.5W
|
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
| Frequency | A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +85°C |
☎ Features
Emergency Telephone,SOS phone with lock key for Roadside,Highway,Subway
⇜~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~⇝
☛ Standard VoIP/SIP telephone
☛ External Antenna with long cable
☛ Vandal resistant metal button
☛ One button programmable for speed dial
☛ Two indicators: one for power supply; one for phone state
☛ Support message function for low battery, door opening & low signal strength
☎ Packing & Delivery
Emergency Telephone,SOS phone with lock key for Roadside,Highway,Subway
⇜~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~⇝
| Unit size | 530 *280*200 (mm) |
|---|---|
| Carton size | 620*340 *260 (mm) |
| Packaging materials | Pearl cotton, Carton |
| Gross weight | 12 KG |
| Net weight | 10 KG |
| Port | Shenzhen | ||||
|
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Pieces) | 1-10 | 11-100 | 101-200 | >200 |
| Est. Time(days) | 2 | 10 | 20 | To be negotiated | |
☎ Our Company
Emergency Telephone,SOS phone with lock key for Roadside,Highway,Subway
⇜~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~⇝
J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.
☎ FAQ
Emergency Telephone,SOS phone with lock key for Roadside,Highway,Subway
⇜~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~⇝
Q: Do You Have Any MOQ Limit?
A: Low MOQ, 1pc Is Available
Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Once learn your detail requirements.
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
