| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR104-2B |
| Minimum Order Quantity: | 1 Piece |
| Price: | US$119-US$369 |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union，PayPal |
| Supply Ability: | 10000pcs per month |
| Color: | Yellow Or Customized | Material: | Die-casting Aluminum Alloy |
|---|---|---|---|
| Version: | Analogue, SIP, GSM, 3G | Installation: | Wall Mounting |
| Warranty: | 2 Years | Weight: | 5 KG |
| Size: | 204 *334 *74(mm) | Keypad: | No Keypad |
| Power Input: | 12-24VDC | Weather Resistance: | IP66 |
| High Light: | SIP GSM Weather Resistant Telephone,FCC Weather Resistant Telephone,Analogue Highway Emergency Telephone |
||
▕▸Product Description◂▏

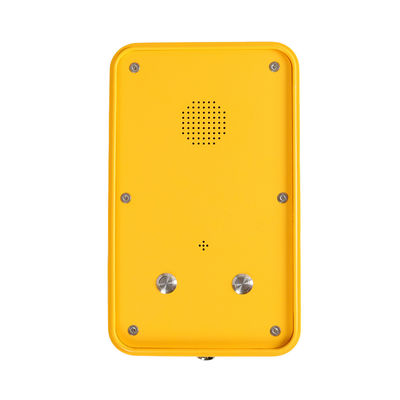

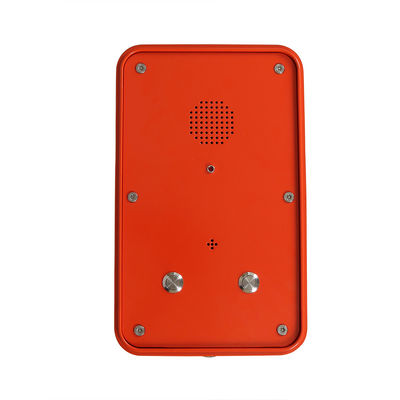

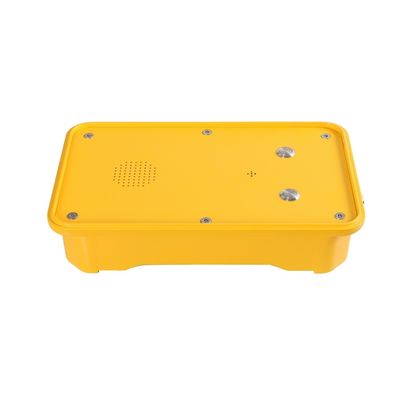

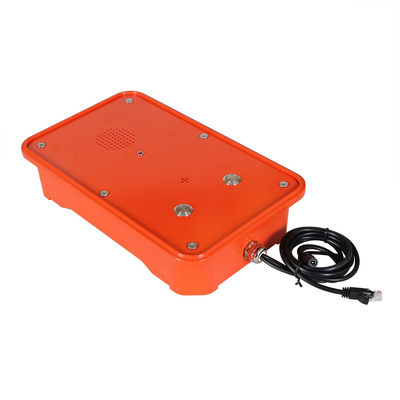

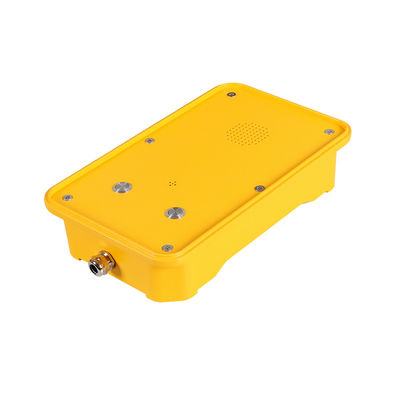

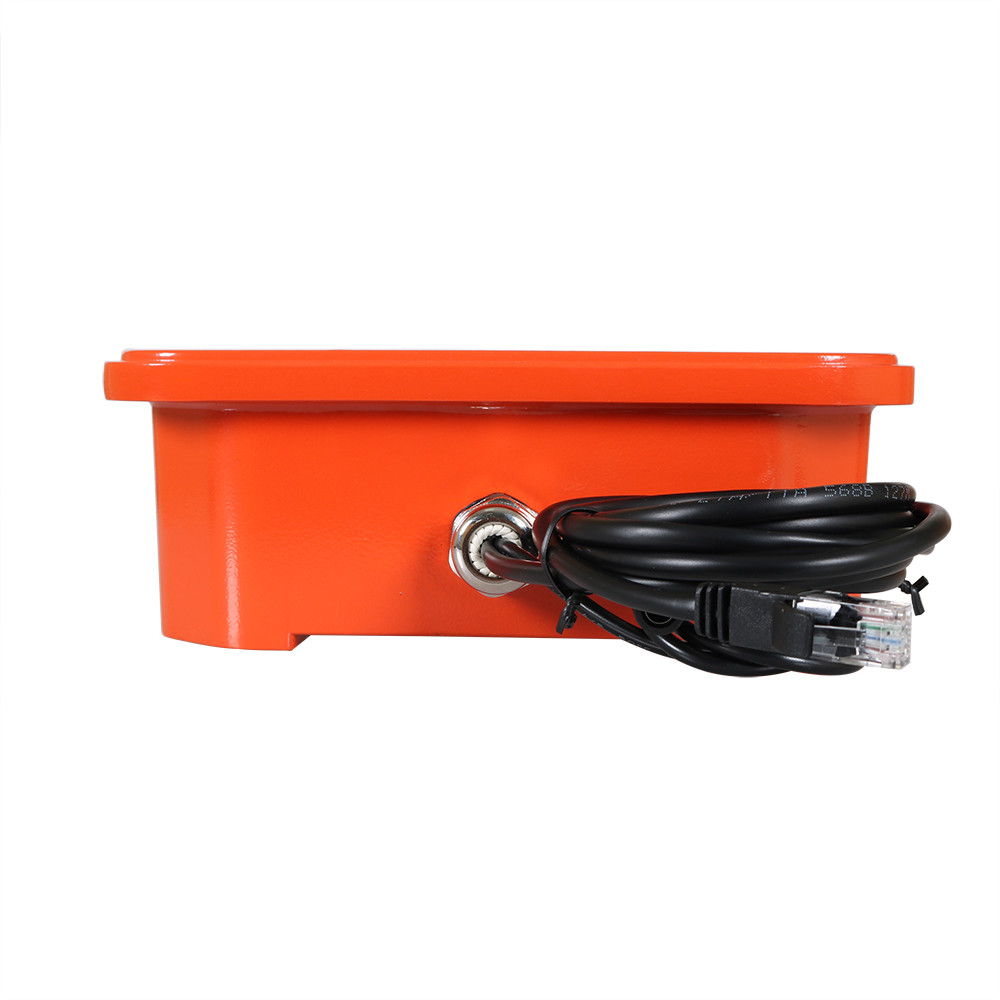

Violence Prevention Emergency Highway Help Point Weather Resistant Telephone with Two Buttons
This heavy duty hotline telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
|
Casing Material
|
Die cast aluminium body, cold rolled steel paceplate epoxy powder coated
|
|
Colors
|
yellow, other colors to special order
|
|
Handset Material
|
No handset
|
|
Keypad
|
No Keypad
|
|
Temperature
|
Operating: -30°C to +65°C
Storing: -40°C to +75°C
|
|
Weather Resistance
|
IP66-IP67
|
|
Ringing Tone
|
Shrill warble tone 90 dBA @ 1 metre typical
|
|
Hook switch
|
No hook switch
|
|
Push button
|
Vandal resistant stainless steel button
|
|
M.T.B.F.
|
Calculated to have an M.T.B.F. in excess of 50,000 hours using
|
|
Weight
|
Up to 6 kg depending on option
|
|
Power Input
|
12-24V DC
|
▕▸Technical Specification◂▏
Violence Prevention Emergency Highway Help Point Weather Resistant Telephone with Two Buttons
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +75°C |
▕▸Features◂▏
Violence Prevention Emergency Highway Help Point Weather Resistant Telephone with Two Buttons
◈ Hands free operation
◈ Wall / Pillar mounting, simple installation
◈ The phone will ringing loudly when there is a incoming call
◈ Single or Dual button auto dial options with remote programming
◈ With auto-answer feature after 5 ringing, Auto-release the line when the other side cut off the line
▕▸Packing & Delivery◂▏
Violence Prevention Emergency Highway Help Point Weather Resistant Telephone with Two Buttons
| Unit Size | 204 *334 *74(mm) |
| Carton Size | 200 *300 *440 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 4 KG |
| Gross Weight | 5 KG |
| Port | Shenzhen, Guangdong | |||
|
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
▕▸Our Services◂▏
Violence Prevention Emergency Highway Help Point Weather Resistant Telephone with Two Buttons
◊ ODM & OEM products or solutions
◊ Sample order is greatly welcomed
◊ We will reply your inquiry within 12 hours
◊ Update the productive process and show the packing details
◊ After delivered the goods, we will track the products for you once every two days, until you get the products
◊ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time
▕▸Our Company◂▏
Violence Prevention Emergency Highway Help Point Weather Resistant Telephone with Two Buttons
J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories.
Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.
▕▸FAQ◂▏
Violence Prevention Emergency Highway Help Point Weather Resistant Telephone with Two Buttons
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What do IP Ratings mean?
A: IP Ratings apply to enclosures such as our telephone cabinets. They indicate how the enclosure protects against water and dust ingress, the higher the better.
Q: How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days
2.Send by Air: Arrive at destination Airport fast then pick it up by yourself
3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution including re-call according to real situation.
