1024*600 LCD Android 5.1 Emergency Call Intercom SUS316

1024*600 LCD Android 5.1 Emergency Call Intercom SUS316

Brand Name: J&R
Model Number: JR213-V-2B
MOQ: 1 piece
Price: US$500-US$800
Payment Terms: Western Union, L/C, T/T,PAYPAL
Supply Ability: 3000 sets per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Material:
SUS316 Stainless Steel Body
Warranty:
2 Years
Weather Protection:
IP54
Handset:
No Handset
Version:
SIP
Application:
Gate, Prisons, Jail, Parking Lots, Hospitals, Guard Stations, Police Stations, Bank Halls, ATM Machines
Color:
Grey, Blue, Or Optional
LCD:
7 Inch 1024*600
TP:
5 Point G+G Capacitive Touch Screen
Camera:
Front Cam: 5.0 MP With Infrared
Operating System:
Android 5.1
Packaging Details:
pearl cotton, carton
Supply Ability:
3000 sets per month
Highlight:

1024*600 LCD Emergency Call Intercom

,

Android 5.1 Emergency Call Intercom

,

SUS316 SIP Emergency Call Box

Product Description



Product Description



JR213-V-2B.pdf Video Visitation Help Point emergency call Intercom

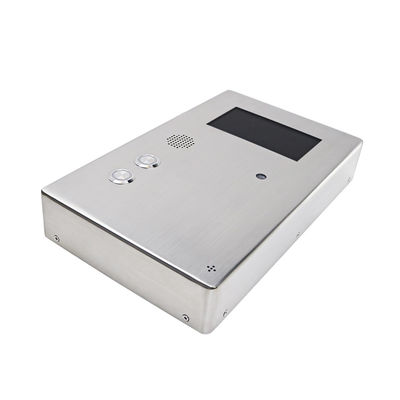

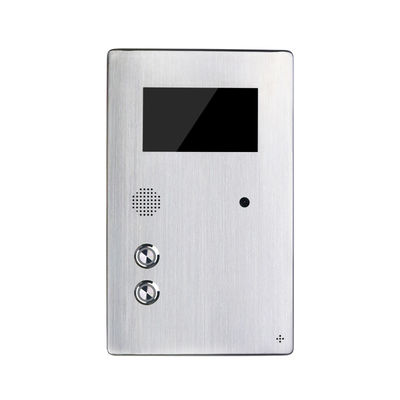

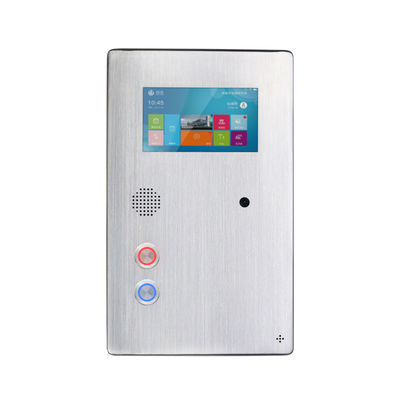

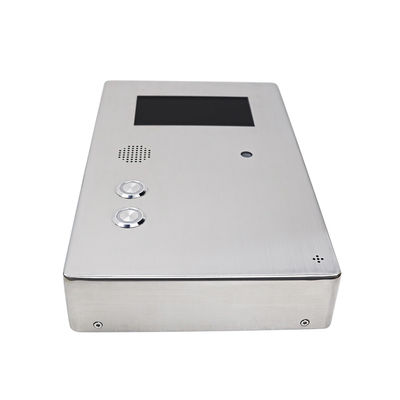

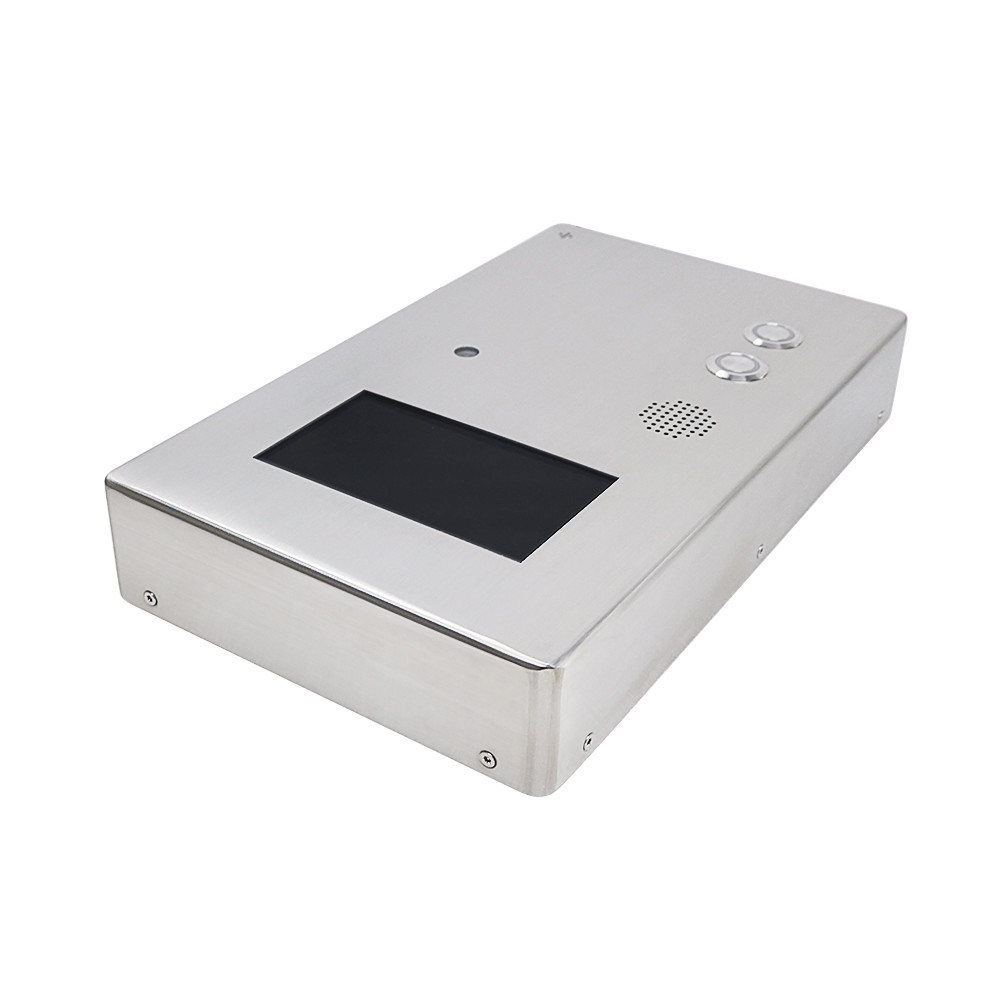

JR213-V-2B Video Visitation Help Point Intercom is mainly composed of a built-in camera, display screen and two waterproof buttons. Users can easily take video calls for help so that both sides fully feel the feeling of the scene to improve efficiency.

1024*600 LCD Android 5.1 Emergency Call Intercom SUS316 0

  Casing Material SUS 316 stainless steel body
  Colors Blue, Grey, Black or Customize
  Handset No handset
  Keypad

2 waterproof stainless steel push buttons

  Temperature Operating: -30°C to +65°C
Storing: -40°C to +75°C
  Weather Resistance IP54
  Ringing Tone Shrill warble tone 90 dBA @ 1 metre typical
  Face Recognition Support Baidu / Yuemian face recognition
  Door opening methods Support password opening, face opening, remote opening of mobile phone
  Personalized setting The SIP standard protocol let it makes audio and vedio communicates with the indoor unit











Product Specification



Video Visitation Help Point emergency call Intercom

1024*600 LCD Android 5.1 Emergency Call Intercom SUS316 1

 System Configuration
  OS Android 5.1
  CPU Quad-Core ARM Cortex A17 CPU @ 1.8 GHz
  RAM LPDDR3 1G
  ROM EMMC 8G



 SIP Protocol
  Codec G.723.1 / G.729
  Audio Format GSM / PCMU / PCMA / OPUS
  Audio Compression codec Speex-16000 / 8000 / 32000
  Support Codec G.7211-16000 / G.7211-32000



 Other Parameters
  LCD 7 inch 1024*600
  Touch Panel 5 point G+G capacitive touch screen
  Camera

Front cam: 5.0 MP with infrared

  USB Micro usb OTG 2.0
  RJ45 IEE802.3 af
  Speaker 10W



1024*600 LCD Android 5.1 Emergency Call Intercom SUS316 2









Main Functions



Video Visitation Help Point emergency call Intercom

 ★ Built-in HD infrared camera



 Video supports H.264, H.263 encoding



 ★ Flexible hardware design, rich peripheral interface



 ★ Adopt hardware DSP echo cancellation technology



 The chip designs like car's specification, can apply to variety of complex environments easily.



 It adopts the standard SIP (RFC3261) protocol and it's compatible with the mainsteam IP-PBX platform in the market.

1024*600 LCD Android 5.1 Emergency Call Intercom SUS316 3











Applications & Project Display



Video Visitation Help Point emergency call Intercom

Video Visitation Help Point Intercom is ideal for parking lots, gate, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums etc.

1024*600 LCD Android 5.1 Emergency Call Intercom SUS316 4











Packing & Delivery



Video Visitation Help Point emergency call Intercom



  Unit Size 430 *258 *70 (mm)
  Carton Size 500 *320 *80 (mm)
  Packaging Materials Pearl cotton, carton
  Net Weight 4 KG
  Gross Weight 4.5 KG



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated

1024*600 LCD Android 5.1 Emergency Call Intercom SUS316 5
