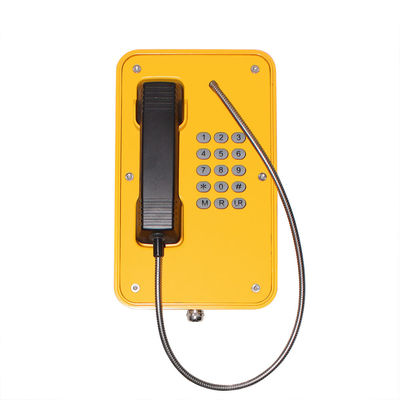

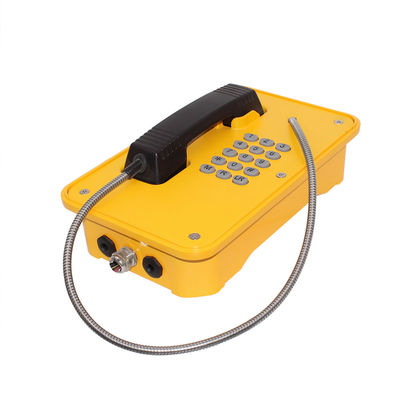

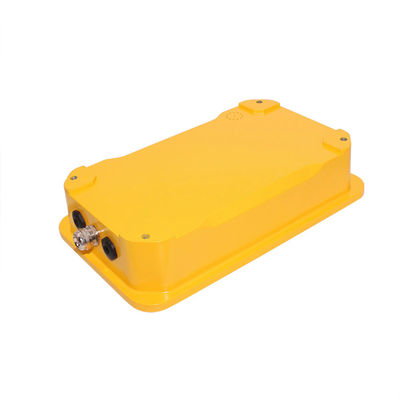

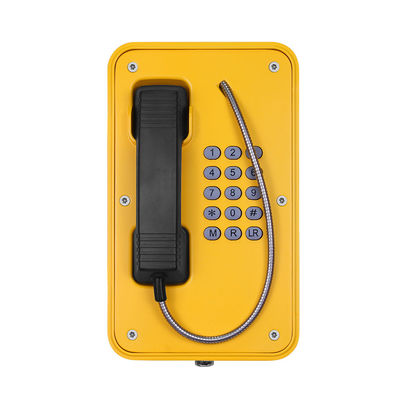

1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants

China J&R Technology Limited certification
China J&R Technology Limited certification
I'm Online Chat Now

1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants

1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants
1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants
video play

Large Image :  1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants

Product Details:
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR103-FK
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detailed Product Description
Color: Yellow Or Customized Material: Die-casting Aluminum Alloy
Version: Analogue, SIP, GSM, 3G Installation: Wall Mounting
Warranty: 2 Years Weight: 5 KG
Size: 204 *334 *74(mm) Keypad: Yes
Power Input: 12-24VDC Weather Resistance: IP66-IP67
Packaging Materials: Pearl Cotton, Carton Door: Optional
High Light:

IP67 Moisture Resistant VoIP Telephone

,

1.5W Moisture Resistant VoIP Telephone

,

24VDC Voice Over IP Telephone

Product Description

IP67 Moisture Resistant VoIP Telephone for Chemical Plants, Voice over IP Telephone for Hazardous Areas

The industrial telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


JR103-FK is designed for voice communication in the hostile envirronment where reliability, efficiency and safety are of prime importance.





SIP-VoIP TECHNICAL SPECIFICATIONS

Power Input:

12-24V DC

Port:

WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX

LAN: 10/100Base- T RJ-45 for PC, Auto MDIX

Power Consumption:

Idle:1.5W/ Active:1.8W

Voice Features

l Support SIP 2.0 (RFC3261)

l Codec: G.711A/u, G.7231 high/low, G.729, G.722

l Echo cancellation: Support G.168 and hand-free can support 96ms

l Supports full duplex

l SIP support SIP domain, SIP authentication(none, basic,MD5),DNS name of server

l DTMF:SIP info, DTMF Relay,RFC2833

l Call control features: Flexible dial map, support hot-line

Network Features

l WAN/LAN: support Bridge mode

l Support static IP address

l Support DHCP get IP on WAN port

l Support VLAN

        Support web config



1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 0

1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 1

1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 2

















































































































































































































































Application

IP67 Moisture Resistant VoIP Telephone for Chemical Plants, Voice over IP Telephone for Hazardous Areas

The phone is suitable for use in harsh environment characterized by: indoor & outdoor, Presence of dust & water ingress. Corrosive atmosphere, varying temperature, loud ambient noise, safety ect.



1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 3

1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 4



Specification

IP67 Moisture Resistant VoIP Telephone for Chemical Plants, Voice over IP Telephone for Hazardous Areas


Casing Material
Die cast aluminium body, cold rolled steel paceplate epoxy powder coated
Colors
yellow, other colors to special order
Handset Material
Cycoloy with stainless steel spiral cord
Keypad
Rubber Keypad
Temperature:Operating
Operating: -30°C to +65°C Storing: -40°C to +75°C
Weather Resistance
IP67
Ringing Tone
Shrill warble tone 80 dBA @ 1 metre typical
Hook switch
Electronic/ magnetic with no visible moving parts
Push button
Vandal resistant stainless steel button
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 60,000 hours using
Weight
Up to 5 kg depending on option
Package Materials Pearl cotton, carton





Feature

IP67 Moisture Resistant VoIP Telephone for Chemical Plants, Voice over IP Telephone for Hazardous Areas



Standard Analogue phone/ SIP phone

Vandal resistant handset and cord

Weather proof protection to IP67

Full keypad with memory, 0-9 buttons can be programmed as speed dial button

"LR" button for last number redial

"R" for flash recall

"M" for muting

Wall mounting, Easy for installation

Inductive coupler fitted as standard for hard of hearing, with LCD display

Phone line power supply or PoE (SIP-VoIP)

RJ45 port for SIP phone

CE, FCC, ROSH compliant



Package

IP67 Moisture Resistant VoIP Telephone for Chemical Plants, Voice over IP Telephone for Hazardous Areas


unit size 204*334*74(mm)
Carton size 200*300*440(mm)
Package Materials pearl cotton, carton
Gross Weight 6KG
Net Weight 5KG

1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 5

1.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 61.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 71.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 81.5W IP67 Moisture Resistant VoIP Telephone For Chemical Plants 9
