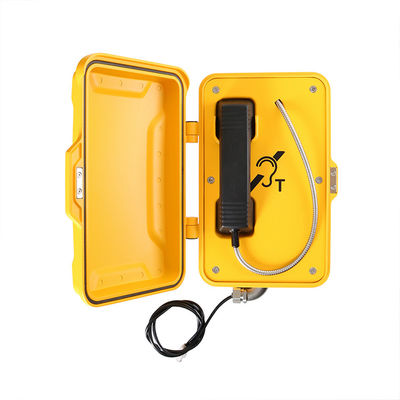

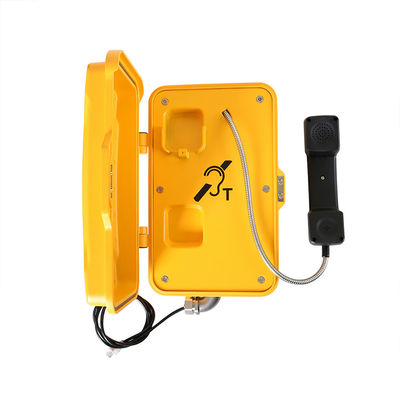

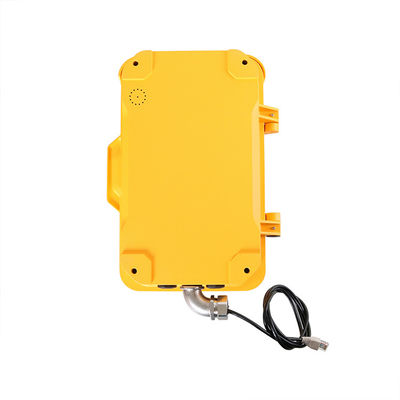

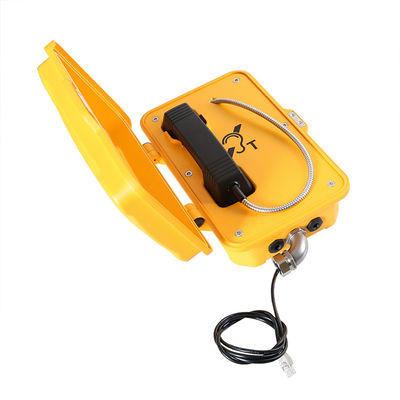

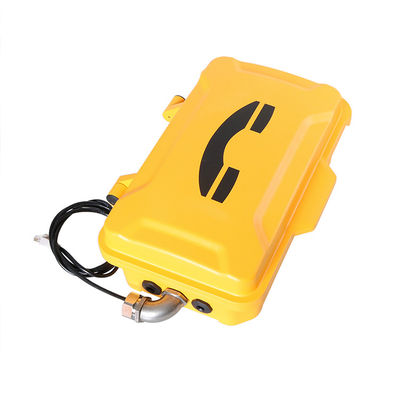

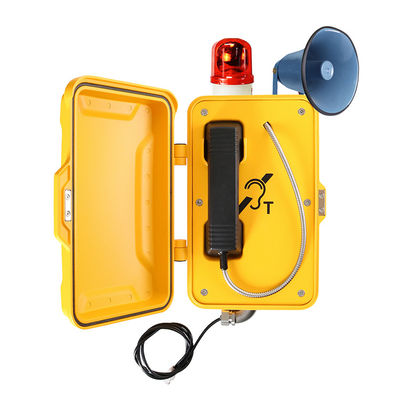

Anti Vandal IP66 1.5W SOS Aluminum alloy SIP Telephone

Name: Anti Vandal IP66 1.5W SOS Aluminum alloy SIP Telephone
Brand: J&R Technology Limited
SKU: JR101-CB
Price: 374.00 USD
Availability: InStock

Brand Name:	J&R
Model Number:	JR101-CB
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Product Name:

Highway Emergency Call Box Industrial Waterproof Telephone For Roadside

Material:

Die-casting Aluminum Alloy

Function:

SOS

Main Chip:

Audiocodec

Package:

Pearl Cotton, Carton

Modle:

Analog/ SIP/ GSM/ 3G

Mounting:

Wall /Pillar Mounted

Ingress Protection Rating:

IP66-IP67

Full Keypad:

Yes

Door Cover:

Yes

Handset:

Yes

Temperature:

-30°C To +65°C

OEM:

Yes

Warranty:

2 Years

Feature1:

Hotline

Feature2:

Anti Vandal

Net Weight:

6kg

Gross Weight:

7kg

Packaging Details:

Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG

Supply Ability:

3000 sets per month

Highlight:

SOS Aluminum Alloy SIP Telephone

1.5W Aluminum Alloy SIP Telephone

IP66 Anti Vandal SIP Telephone

Product Description

Product Description

JR101-CB China SIP Telephone Set

JR101-CB SIP Telephone Set is an independent telephone device with dial-up and call function based on ip network protocol, which usually needs to be used with IPPBX telephone switch.

Anti Vandal IP66 1.5W SOS Aluminum alloy SIP Telephone 0

Casing Material	Die cast aluminium, epoxy powder coated
Colors	Yellow, other colors to special order
Handset Material	Cycoloy with stainless steel spiral cord
Keypad	No keypad
Temperature	Operating: -30°C to +65°C Storing: -40°C to +75°C
Weather Resistance	IP67
Ringing Tone	Shrill warble tone 80 dBA at 1 metre typical
Hook switch	Electronic / magnetic with no visible moving parts
M.T.B.F.	Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight	Up to 7 kg depending on option

Technical Specification

China SIP Telephone Set

Heavy Duty, Vandal Resistant Metal Telephones

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer Volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection Type	IP 66 as per EN60529
Operating Temperature	-30°C to +70°C
Storage Temperature	-40°C to +75°C

Features

China SIP Telephone Set

Heavy Duty, Vandal Resistant Metal Telephones

★ Telephone calls via LAN or WAN

★ Automatic hang-up after calling

★ ABS and PC composite material handset

★ 6 stainless steel tamper screws to prevent theft and tampering

Applications & Product Display

China SIP Telephone Set

JR101-CB more commonly used in hotel, railway, mine, underground pipe gallery, tunnel, sewage plant, power plant, steel plant, food products factory and so on.

Rugged Outdoor Weatherproof Telephone

Packing & Delivery

China SIP Telephone Set

Heavy Duty, Vandal Resistant Metal Telephones

Unit Size	339 146 126 (mm)
Carton Size	200 300 440 (mm)
Packaging Materials	Pearl cotton, carton
Net Weight	6 KG
Gross Weight	7 KG

Port	Shenzhen, Guangdong
Lead Time (If you finish the payment today, your order will ship out within the delivery date.)	Quantity(Sets)	1	2-500	>500
	Est. Time(Days)	2	25	To be negotiated

Our Company

China SIP Telephone Set

J&R Technology offers a wide variety of special telephones and unique customs services to customers. Our telephone is suitable for all IP systems, and we have provided many customers with excellent emergency system solutions and customized telephone service, which is very mature in the manufacturing of the telephone.

Anti Vandal IP66 1.5W SOS Aluminum alloy SIP Telephone 5

Anti Vandal IP66 1.5W SOS Aluminum alloy SIP Telephone 6
